AC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Voltaj - Çıkış 5 | Voltaj - Çıkış 6 | Akım - Çıkış 1 | Akım - Çıkış 2 | Akım - Çıkış 3 | Akım - Çıkış 4 | Akım - Çıkış 5 | Akım - Çıkış 6 | Güç (Watt) | Uygulamalar | Voltaj - Yalıtım | Verimlilik | Çalışma Sıcaklığı | Özellikler | Montaj Türü | Boyut / Ölçü | Onay Ajansı |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010107CHCOSRW-45-3002 CHCO |
50 |
|
Veri Sayfası |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 3 | 100 ~ 240 VAC | 5V | 15V | - | -15V | - | - | 5 A | 2 A | 700 mA | - | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
|
1010106CHCOSRW-45-3001 CHCO |
50 |
|
Veri Sayfası |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 3 | 100 ~ 240 VAC | 5V | 12V | - | -12V | - | - | 5 A | 3 A | 700 mA | - | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
|
1010210CHCOSRW-45-3004 CHCO |
50 |
|
Veri Sayfası |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 3 | 100 ~ 240 VAC | 5V | 9V | - | 12V | - | - | 5 A | 3 A | 700 mA | - | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
VGS-500-55AC/DC CONVERTER 55V 490W |
34 |
|
Veri Sayfası |
VGS-500 (500W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 55V | - | - | - | - | - | 8.9 A | - | - | - | - | - | 490W | ITE (Commercial) | 4 kV | 95% | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | CE, cURus, UKCA |
|
|
VGS-500-12AC/DC CONVERTER 12V 500W |
33 |
|
Veri Sayfası |
VGS-500 (500W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 41.7 A | - | - | - | - | - | 500W | ITE (Commercial) | 4 kV | 94% | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | CE, cURus, UKCA |
|
|
VGS-500-48AC/DC CONVERTER 48V 502W |
36 |
|
Veri Sayfası |
VGS-500 (500W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 10.45 A | - | - | - | - | - | 502W | ITE (Commercial) | 4 kV | 95% | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | CE, cURus, UKCA |
|
|
VGS-500-24AC/DC CONVERTER 24V 502W |
36 |
|
Veri Sayfası |
VGS-500 (500W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 20.9 A | - | - | - | - | - | 502W | ITE (Commercial) | 4 kV | 94.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | CE, cURus, UKCA |
|
1010482CHREL-110-2003 CH |
50 |
|
Veri Sayfası |
REL-110 (110W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 10 A | 3 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010481CHREL-110-2002 CH |
50 |
|
Veri Sayfası |
REL-110 (110W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 10 A | 5 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010710CHREL-110-2006 CH |
50 |
|
Veri Sayfası |
REL-110 (110W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 18V | -18V | - | - | - | - | 4 A | 3 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010483CHREL-110-2004 CH |
50 |
|
Veri Sayfası |
REL-110 (110W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 5 A | 4 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010484CHREL-110-2005 CH |
50 |
|
Veri Sayfası |
REL-110 (110W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 4 A | 3 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010480CHREL-110-2001 CH |
50 |
|
Veri Sayfası |
REL-110 (110W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 3.3V | 5V | - | - | - | - | 10 A | 6 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
MSCC-0303AC/DC CONVERTER 15V 30W |
35 |
|
Veri Sayfası |
MCA-30 (30W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | 3 kV | 80% | 0°C ~ 50°C | Universal Input | Chassis Mount | 4.76" L x 2.56" W x 1.00" H (120.9mm x 65.0mm x 25.4mm) | CE, cURus |
|
|
VGS-500-36AC/DC CONVERTER 36V 500W |
36 |
|
Veri Sayfası |
VGS-500 (500W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 36V | - | - | - | - | - | 13.9 A | - | - | - | - | - | 500W | ITE (Commercial) | 4 kV | 95% | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | CE, cURus, UKCA |
|
|
VGS-500-5AC/DC CONVERTER 5V 400W |
30 |
|
Veri Sayfası |
VGS-500 (500W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 80 A | - | - | - | - | - | 400W | ITE (Commercial) | 4 kV | 90% | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | CE, cURus, UKCA |
|

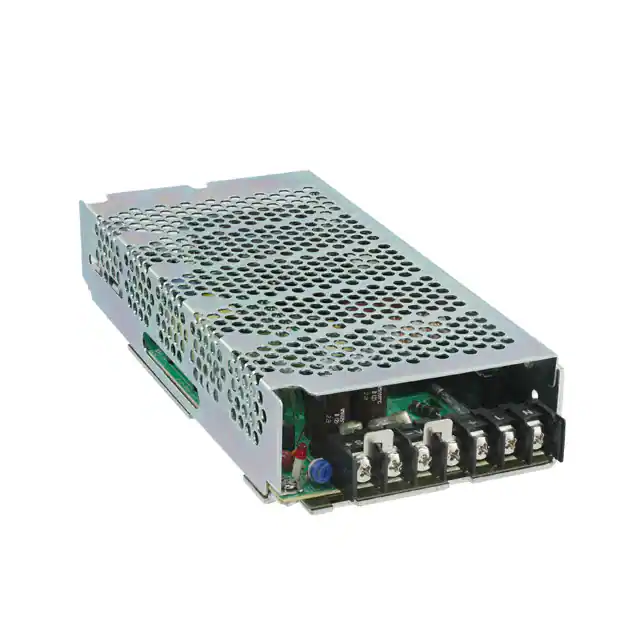

SW100-05CAC/DC CONVERTER 5V 100W |
73 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VGS-100-48AC/DC CONVERTER 48V 100W |
0 |
|
Veri Sayfası |
VGS-100 (110W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 48V | - | - | - | - | - | 2.3 A | - | - | - | - | - | 100W | ITE (Commercial) | 4.242 kV | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
VGS-100-5AC/DC CONVERTER 5V 100W |
0 |
|
Veri Sayfası |
VGS-100 (110W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 5V | - | - | - | - | - | 16 A | - | - | - | - | - | 100W | ITE (Commercial) | 4.242 kV | 80% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
VGS-100-12AC/DC CONVERTER 12V 100W |
0 |
|
Veri Sayfası |
VGS-100 (110W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 4.242 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
