AC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Voltaj - Çıkış 5 | Voltaj - Çıkış 6 | Akım - Çıkış 1 | Akım - Çıkış 2 | Akım - Çıkış 3 | Akım - Çıkış 4 | Akım - Çıkış 5 | Akım - Çıkış 6 | Güç (Watt) | Uygulamalar | Voltaj - Yalıtım | Verimlilik | Çalışma Sıcaklığı | Özellikler | Montaj Türü | Boyut / Ölçü | Onay Ajansı |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XS1000-24NC004AC/DC CONVERTER 24V 1008W |
28 |
|
Veri Sayfası |
Xsolo (1000W) | Box | Active | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 380 VDC | 24V | - | - | - | - | - | 42 A | - | - | - | - | - | 1008W | ITE (Commercial), Medical | 4 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.37" L x 5.04" W x 1.60" H (238.0mm x 128.0mm x 40.6mm) | CE |
|
CSU1800AP-3-100AC/DC CONVERTER 12.2V 1800W |
84 |
|
Veri Sayfası |
CSU1800AP (1800W) | Bulk | Active | Front End | 1 | 90 ~ 127 VAC, 180 ~ 264 VAC | 12.2V | - | - | - | - | - | 147.5 A | - | - | - | - | - | 1800W | ITE (Commercial) | - | 94% | -5°C ~ 55°C (With Derating) | Adjustable Output, Load Sharing, PFC, PMBus™, Standby Output | Rack Mount | 7.28" L x 2.89" W x 1.54" H (185.0mm x 73.5mm x 39.0mm) | CB, CE, CQC, cUL, EAC, KC, UL |
|
PFE1300-48-054NAAC/DC CONVERTER 48V 1300W |
42 |
|
Veri Sayfası |
PFE1300 (1300W) | Box | Active | Front End | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 26.8 A | - | - | - | - | - | 1300W | ITE (Commercial) | 4.242 kV | 94% | 0°C ~ 45°C | Adjustable Output, Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output | Rack Mount | 12.66" L x 2.15" W x 1.57" H (321.5mm x 54.5mm x 40.0mm) | CB, cCSAus, CE, NEMKO |
|
|
CS10M-48N-0-AAC/DC CONVERTER 48V 1000W |
50 |
|
Veri Sayfası |
CS1000 (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 1000W | ITE (Commercial), Medical | 4 kV | 95% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, PMBus™, Remote Sense, Universal Input | Chassis Mount | 10.30" L x 5.00" W x 1.54" H (261.6mm x 127.0mm x 39.1mm) | CSA, EN, IEC, UL |
|
LCM1500U-T-4AC/DC CONVERTER 36V 1500W |
63 |
|
Veri Sayfası |
LCM1500 (1500W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 43 A | - | - | - | - | - | 1500W | ITE (Commercial), Medical | 4 kV | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.00" L x 5.20" W x 2.43" H (254.0mm x 132.0mm x 61.7mm) | BSMI, CB, CCC, CE, cURus, TUV |
|
D1U54P-W-1200-12-HA4PCAC/DC CONVERTER 12V 1200W |
35 |
|
Veri Sayfası |
D1U54P-W-1200 (1200W) | Box | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 100 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | 94% | 0°C ~ 60°C | Hot Swappable, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Rack Mount | 12.65" L x 2.15" W x 1.57" H (322.0mm x 54.5mm x 40.0mm) | CB, cCSAus, CE, TUVgs |
|
|
CS10M-24N-0-AAC/DC CONVERTER 24V 1000W |
84 |
|
Veri Sayfası |
CS1000 (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 41.6 A | - | - | - | - | - | 1000W | ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, PMBus™, Remote Sense, Universal Input | Chassis Mount | 10.30" L x 5.00" W x 1.54" H (261.6mm x 127.0mm x 39.1mm) | CSA, EN, IEC, UL |
|
D1U54P-W-1500-12-HB4TCAC/DC CONVERTER 12V 1500W |
52 |
|
Veri Sayfası |
D1U54P-W-1500 (1500W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 125 A | - | - | - | - | - | 1500W | ITE (Commercial) | 3 kV | 91% | -5°C ~ 45°C (With Derating) | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Rack Mount | 12.66" L x 2.15" W x 1.57" H (321.5mm x 54.5mm x 40.0mm) | BSMI, CE, cCSAus, CQC, TUV |
|
PBA1500F-36AC/DC CONVERTER 36V 1500W |
27 |
|
Veri Sayfası |
PBA (1500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 47 A | - | - | - | - | - | 1692W | ITE (Commercial) | - | 87% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
GB10S12K01AC/DC CONVERTER 12V 12W |
0 |
|
Veri Sayfası |
GB10S (10W) | Bulk | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 1 A | - | - | - | - | - | 12W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.38" L x 1.60" W x 1.00" H (85.9mm x 40.6mm x 25.4mm) | CE, cURus, UL |
|
|
RACM15E-12SK/OF15W AC/DC-CONVERTER 'POWERLINE' |
216 |
|
Veri Sayfası |
RACM15E-K (15W) | Tray | Active | Open Frame | 1 | 80 ~ 275 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | Household Appliances, ITE (Commercial), Medical | 4.2 kV | 84.5% | -40°C ~ 85°C (With Derating) | Baseplate, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.10" L x 0.90" W x 0.80" H (78.7mm x 22.9mm x 20.3mm) | CB Scheme, CE, cURus, FCC, UKCA |
|
|
RACM15E-05SK/OF15W AC/DC-CONVERTER 'POWERLINE' |
212 |
|
Veri Sayfası |
RACM15E-K (15W) | Tray | Active | Open Frame | 1 | 80 ~ 275 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | Household Appliances, ITE (Commercial), Medical | 4.2 kV | 82% | -40°C ~ 85°C (With Derating) | Baseplate, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.10" L x 0.90" W x 0.80" H (78.7mm x 22.9mm x 20.3mm) | CB Scheme, CE, cURus, FCC, UKCA |
|
EPS-15-36AC/DC CONVERTER 36V 15W |
117 |
|
Veri Sayfası |
EPS-15 (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 420 mA | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.50" L x 1.80" W x 0.94" H (63.5mm x 45.7mm x 24.0mm) | CB, CE, cURus, TUV |
|

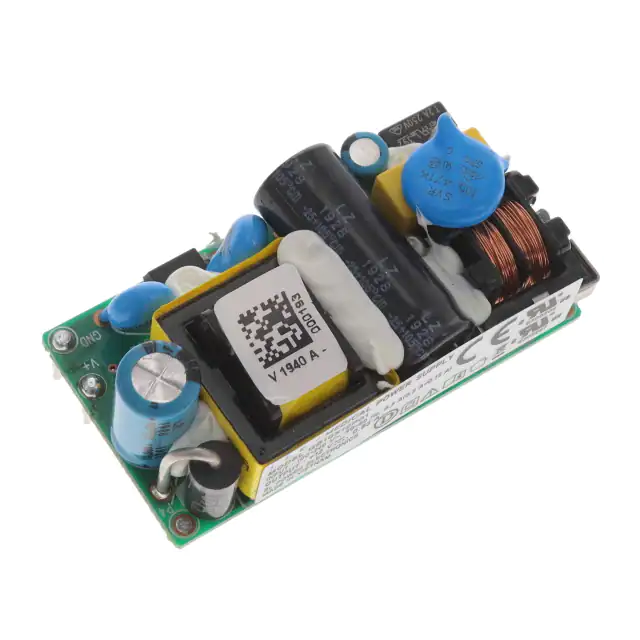

GB10S12P01AC/DC CONVERTER 12V 12W |
490 |
|
Veri Sayfası |
GB10S (10W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 1 A | - | - | - | - | - | 12W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.05" L x 1.07" W x 0.71" H (52.0mm x 27.3mm x 18.0mm) | CE, cURus, DEMKO |
|
GB10S05P01AC/DC CONVERTER 5V 10W |
0 |
|
Veri Sayfası |
GB10S (10W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.05" L x 1.07" W x 0.71" H (52.0mm x 27.3mm x 18.0mm) | CE, cURus, DEMKO |
|

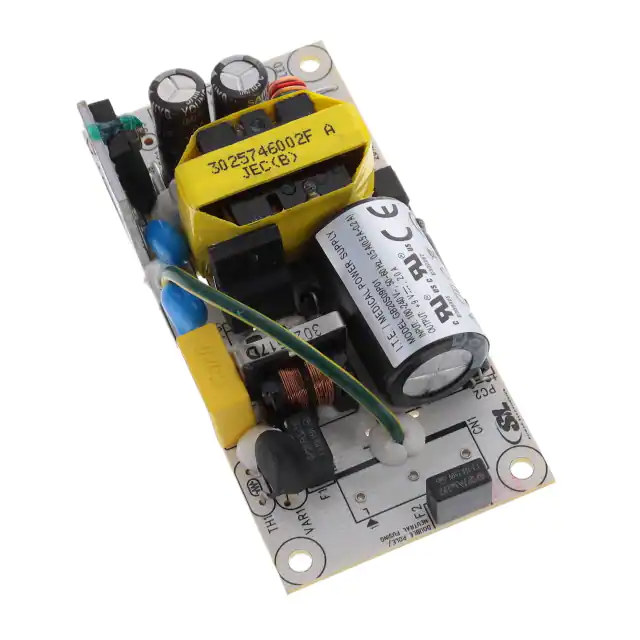

GB20S09P01AC/DC CONVERTER 9V 18W |
0 |
|
Veri Sayfası |
GB20S (20W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 2 A | - | - | - | - | - | 18W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.23" L x 1.57" W x 0.81" H (82.0mm x 39.9mm x 20.5mm) | CE, cURus, DEMKO |
|

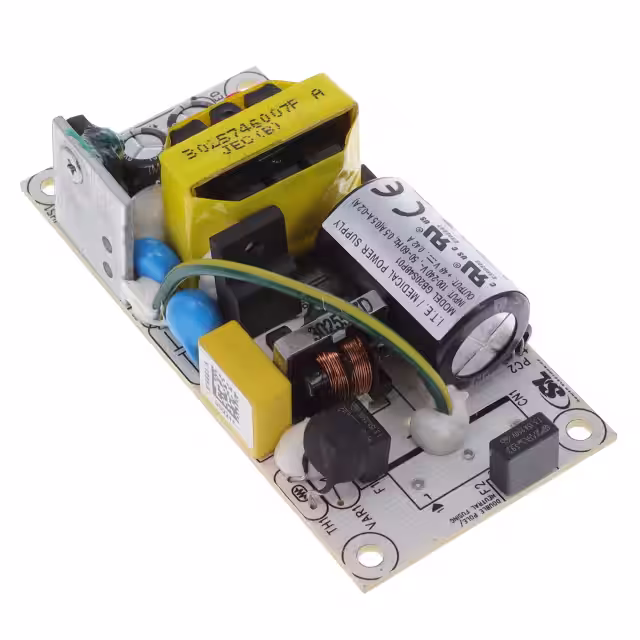

GB20S48P01AC/DC CONVERTER 48V 19W |
0 |
|
Veri Sayfası |
GB20S (20W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 400 mA | - | - | - | - | - | 19W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.23" L x 1.57" W x 0.81" H (82.0mm x 39.9mm x 20.5mm) | CE, cURus, DEMKO |
|
GB20S15P01AC/DC CONVERTER 15V 18W |
0 |
|
Veri Sayfası |
GB20S (20W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 1.2 A | - | - | - | - | - | 18W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.23" L x 1.57" W x 0.81" H (82.0mm x 39.9mm x 20.5mm) | CE, cURus, DEMKO |
|

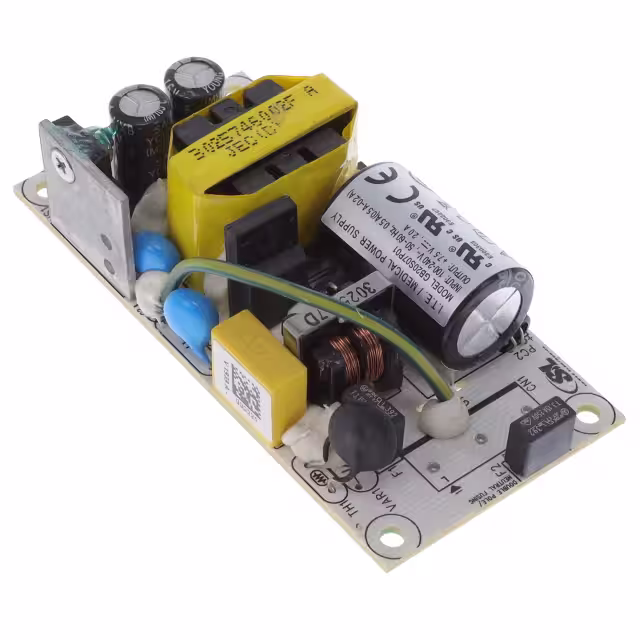

GB20S07P01AC/DC CONVERTER 7.5V 15W |
0 |
|
Veri Sayfası |
GB20S (20W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 7.5V | - | - | - | - | - | 2 A | - | - | - | - | - | 15W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.23" L x 1.57" W x 0.81" H (82.0mm x 39.9mm x 20.5mm) | CE, cURus, DEMKO |
|
|
GB20S12K01AC/DC CONVERTER 12V 18W |
201 |
|
Veri Sayfası |
GB20S (20W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 18W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.38" L x 1.60" W x 1.00" H (85.9mm x 40.6mm x 25.4mm) | CE, cURus, UL |
