Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW-V07-530-Q(S)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Veri Sayfası |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Warble, Slow | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) | 1.140" (28.96mm) |
|
|
LT-V07-530-QBUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Veri Sayfası |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Staccato Tone | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) | 1.140" (28.96mm) |
|
|
LO-V07-530-QBUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Veri Sayfası |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Whooping | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) | 1.140" (28.96mm) |
|
|
LW-V07-530-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Veri Sayfası |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Warble, Fast | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) | 1.140" (28.96mm) |
|
LB-V07-530-S(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Veri Sayfası |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Fast | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) | 1.140" (28.96mm) |
|
|
LB-V07-530-S(M)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Veri Sayfası |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Medium | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) | 1.140" (28.96mm) |
|
|
LW-V07-530-S(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Veri Sayfası |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Warble, Fast | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) | 1.140" (28.96mm) |
|
|
LT-V07-530-SBUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Veri Sayfası |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Staccato Tone | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) | 1.140" (28.96mm) |
|
|
LW-V07-530-S(S)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Veri Sayfası |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Warble, Slow | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) | 1.140" (28.96mm) |
|
|
LS-V07-530-SBUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Veri Sayfası |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Siren | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) | 1.140" (28.96mm) |
|
TXCBW-86-530-Q (F)Turbo Trio Extra Loud Continuous |
1,000 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Multiple Tone | - | 103dB @ 30V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.300" Dia (33.02mm) | 1.180" (29.97mm) |
|
|
TXCBW-V86-530-Q (F)Turbo Trio Extra Loud Continuous |
1,000 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Multiple Tone | - | 103dB @ 30V, 61cm | 5 ~ 25mA | Top | -20°C ~ 85°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.300" Dia (33.02mm) | 1.180" (29.97mm) |
|
|
TXCBW-V86-530-Q (S)Turbo Trio Extra Loud Continuous |
1,000 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Multiple Tone | - | 103dB @ 30V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.300" Dia (33.02mm) | 1.180" (29.97mm) |
|
M6Z-06SBUZZER MAGN 6V 18X24MM PNL MNT |
2,500 |
|
Veri Sayfası |
M6 | Retail Package | Active | Transducer, Externally Driven | AC, DC | 6 V | - | 2kHz | Magnetic | Steady, Slow, Quick | - | 80dB @ 6V, 10cm | 7mA DC, 20mA AC | Top | -25°C ~ 55°C | CE | - | IP65 - Dust Tight, Water Resistant | Panel Mount, Front | Quick Connect Tab - 0.110" (2.80mm) | 0.709" L x 0.945" W (18.00mm x 24.00mm) | 0.343" (8.70mm) |
|
|
SC648BUZZER PIEZO 42.98MM PNL MNT |
9 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 18mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|

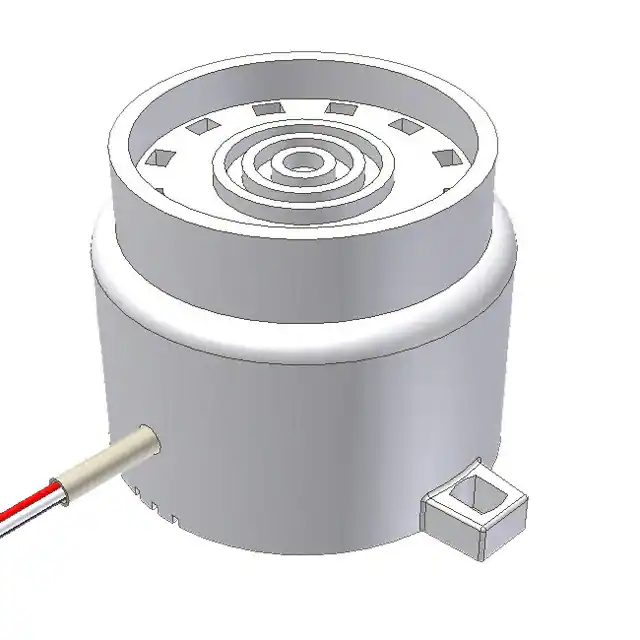

AW-10FWBUZZER PIEZO 24V 52.5MM FLANGE |
34 |
|
Veri Sayfası |
AW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 9 ~ 28V | Multiple | Piezo | Pin Selectable | Variable | 88dB @ 24V, 100cm | 8 ~ 35mA | Top | -25°C ~ 70°C | - | - | IP65 - Dust Tight, Water Resistant | Panel Mount, Flange | Wire Leads | 2.067" Dia (52.50mm) | 1.713" (43.50mm) |
|
SC648NDRBUZZER PIEZO 42.98MM PNL MNT |
50 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 48V | 2kHz | Piezo | Single Tone | - | 85dB @ 12V, 61cm | 7 ~ 25mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.946" (49.43mm) |
|

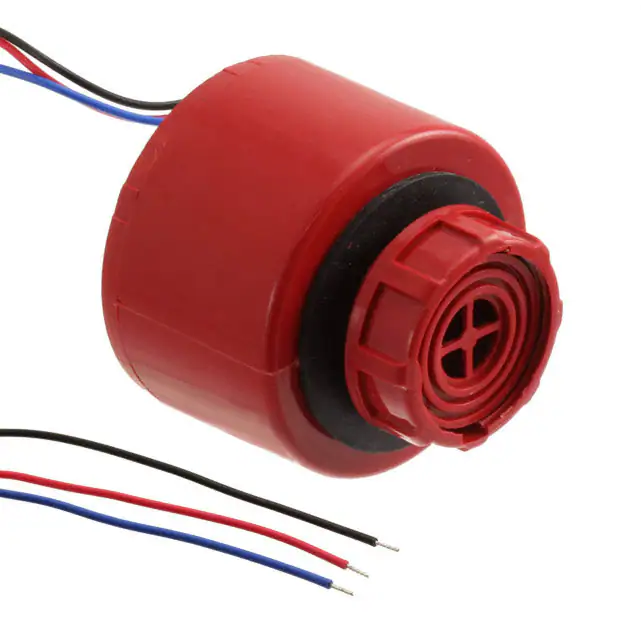

AW-10PRBUZZER PIEZO 24V 50MM PNL MNT |
84 |
|
Veri Sayfası |
AW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 9 ~ 28V | Multiple | Piezo | Pin Selectable | Variable | 88dB @ 24V, 100cm | 8 ~ 35mA | Top | -10°C ~ 60°C | - | - | IP65 - Dust Tight, Water Resistant | Panel Mount | Wire Leads | 1.969" Dia (50.00mm) | 1.791" (45.50mm) |
|
SC110RBUZZER PIEZO 42.85MM PNL MNT |
63 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 30V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
ZT028LDCTYBUZZER PIEZO 30.74MM PNL MNT |
31 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Yellow | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
