Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT-1407BUZZER PIEZO 5V 13.8MM TH |
0 |
|
Veri Sayfası |
PT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 20V | 4kHz | Piezo | Single Tone | - | 80dB @ 5V, 10cm | 1mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.543" Dia (13.80mm) | 0.276" (7.00mm) |
|
|
AT-1224-TWT-4-RBUZZER MAGNETIC 12V 12MM TH |
0 |
|
Veri Sayfası |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 6 ~ 15V | 2.4kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 40mA | Top | -30°C ~ 105°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.362" (9.20mm) |
|
CPI-1375IC-80TBUZZER PIEZO 12V 13.8MM TH |
4 |
|
Veri Sayfası |
CPI | Box | Active | Indicator, Internally Driven | DC | 12 V | 3.5 ~ 16V | 4kHz | Piezo | Single Tone | - | 88dB @ 12V, 10cm | 7mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.543" Dia (13.80mm) | 0.315" (8.00mm) |
|
CPI-148-24-90T-67BUZZER PIEZO 24V 13.9MM TH |
3 |
|
Veri Sayfası |
CPI | Box | Active | Indicator, Internally Driven | DC | 24 V | 15 ~ 28V | 4.1kHz | Piezo | Single Tone | - | 90dB @ 24V, 10cm | 20mA | Top | -40°C ~ 85°C | - | Washable | IP67 - Dust Tight, Waterproof | Through Hole | PC Pins | 0.547" Dia (13.90mm) | 0.315" (8.00mm) |
|
TP304003-2BUZZER PIEZO 3V 30MM FLANGE |
18 |
|
Veri Sayfası |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 30V | 4kHz | Piezo | - | - | 85dB @ 3V, 10cm | 1mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) | 0.217" (5.50mm) |
|
AI-2429-TWT-5V-RBUZZER PIEZO 5V 24MM TH |
0 |
|
Veri Sayfası |
AI | Box | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 16V | 3kHz | Piezo | Single Tone | - | 98dB @ 5V, 10cm | 25mA | Top | -30°C ~ 75°C | - | Washable | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) | 0.642" (16.30mm) |
|
|
ST-025BLABUZZER MAGN 3V 7.5X7.5 SMD |
0 |
|
Veri Sayfası |
ST | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 4V | 2.5kHz | Magnetic | Single Tone | - | 80dB @ 3V, 10cm | 70mA | Side | -30°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.110" (2.80mm) |
|
PT-3110WQBUZZER PIEZO 5V 34.5MM FLANGE |
25 |
|
Veri Sayfası |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 3 ~ 30V | 1.1kHz | Piezo | Single Tone | - | 85dB @ 5V, 10cm | 2mA | Top | -20°C ~ 90°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.358" Dia (34.50mm) | 0.362" (9.20mm) |
|
|
PT-4175PQBUZZER PIEZO 5V 44MM TH |
20 |
|
Veri Sayfası |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 3 ~ 30V | 750Hz | Piezo | Single Tone | - | 87dB @ 5V, 10cm | 1.5mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.732" Dia (44.00mm) | 0.559" (14.20mm) |
|
|
PF-21A31PQBUZZER PIEZO 12V 24MM TH |
0 |
|
Veri Sayfası |
PF | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3kHz | Piezo | Pulse, Fast | - | 85dB @ 12V, 30cm | 18mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) | 0.559" (14.20mm) |
|
|
MAS803QBUZZER PIEZO 6V 26MM TH |
0 |
|
Veri Sayfası |
MAS | Bulk | Active | Indicator, Internally Driven | DC | 6 V | 1.5 ~ 6V | 2.8kHz | Piezo | Single Tone | - | 105dB @ 6V, 10cm | 130mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | PC Pins | 1.024" Dia (26.00mm) | 0.862" (21.90mm) |
|
PB-4333N-1BUZZER PIEZO 24V 43MM PNL MNT |
19 |
|
Veri Sayfası |
PB | Tray | Active | Indicator, Internally Driven | DC | 24 V | - | 2.9kHz | Piezo | Single Tone | - | 90dB @ 24V, 30cm | 20mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.693" Dia (43.00mm) | 1.319" (33.50mm) |
|
|
CPI-42533C-120BUZZER PIEZO 12V 42.50MM PNL MNT |
0 |
|
Veri Sayfası |
CPI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Pin Selectable | - | 87dB @ 12V, 30cm | 11mA, 13mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount | Wire Leads | 1.673" Dia (42.50mm) | 1.319" (33.50mm) |
|
SC648ANPRBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC | - | 10 ~ 48V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 91dB @ 10V, 61cm | 4 ~ 26mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
SC110NJRBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.809" (45.96mm) |
|
|
SC110NBUZZER PIEZO 42.85MM PNL MNT |
1 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
XVS10GMWBUZZER 120V153.2MMX114MMBLACK |
0 |
|
Veri Sayfası |
Harmony XVS | Box | Active | - | AC | 120 V | - | - | - | Siren | - | - | 80mA | User Defined | -30°C ~ 50°C | CE | - | IP53 | Bracket Mount | - | 6.031" L x 4.488" W (153.20mm x 114.00mm) | 4.488" (114.00mm) |
|
|
WT-1201BUZZER MAGNETIC 1.5V 12MM TH |
0 |
|
Veri Sayfası |
WT | Bulk | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.4kHz | Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 50mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.386" (9.80mm) |
|

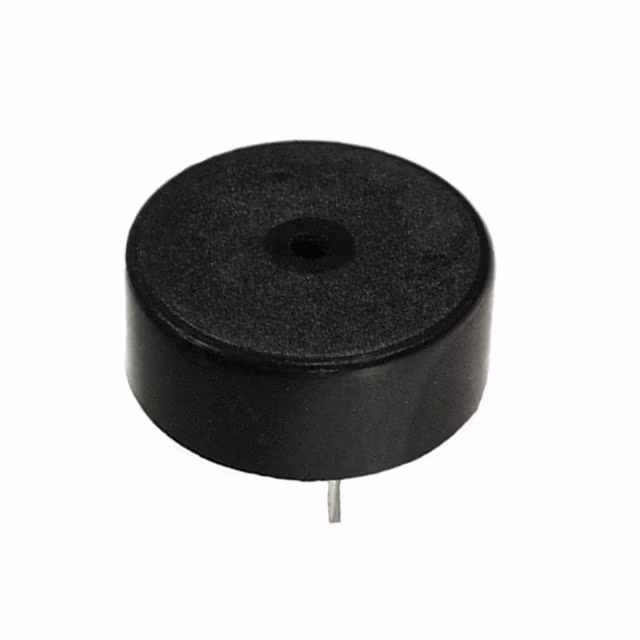

PT-1245P-P7.5QBUZZER PIEZO 5V 12.6MM TH |
12 |
|
Veri Sayfası |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4kHz | Piezo | Single Tone | - | 80dB @ 5V, 10cm | 1.5mA | Top | -20°C ~ 100°C | - | - | - | Through Hole | PC Pins | 0.496" Dia (12.60mm) | 0.287" (7.30mm) |
|
|
AT-1224-TWT-12V-RBUZZER MAGNETIC 12V 12MM TH |
0 |
|
Veri Sayfası |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 6 ~ 15V | 2.4kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 40mA | Top | -40°C ~ 85°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.362" (9.20mm) |
