Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

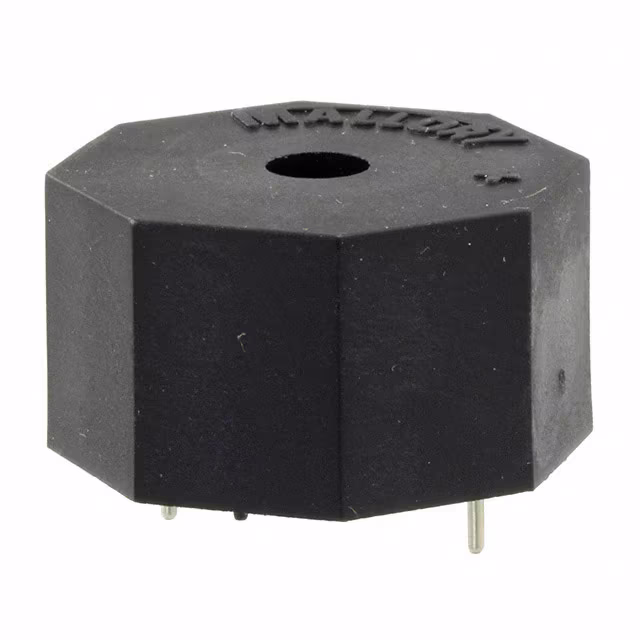

MSE14LDD7BUZZER PIEZO 23X23MM TH |
1 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.85kHz | Piezo | Ding Dong | - | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.535" (13.60mm) |
|
SCE028XD3DB3SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
ZA028MDCTBUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Single Tone | - | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZA028LDSU2BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Speed Up, Fast | - | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
SCE028LD3VC1SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Wire Leads | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SCE016XD3DB3SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
ZT028LDIC3GBUZZER PIEZO 24V 30.74MM PNL MNT |
2 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo, LED, Green | Pulse, Slow, Visual Indicator | 1 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|

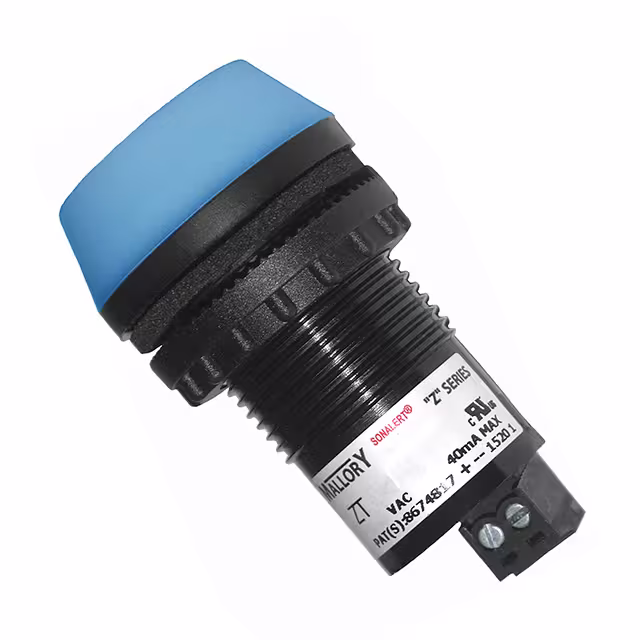

ZT120LACTBBUZZER PIEZO 30.74MM PNL MNT |
2 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.7kHz | Piezo, LED, Blue | Single Tone, Visual Indicator | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
SCE028XD2DB1SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|

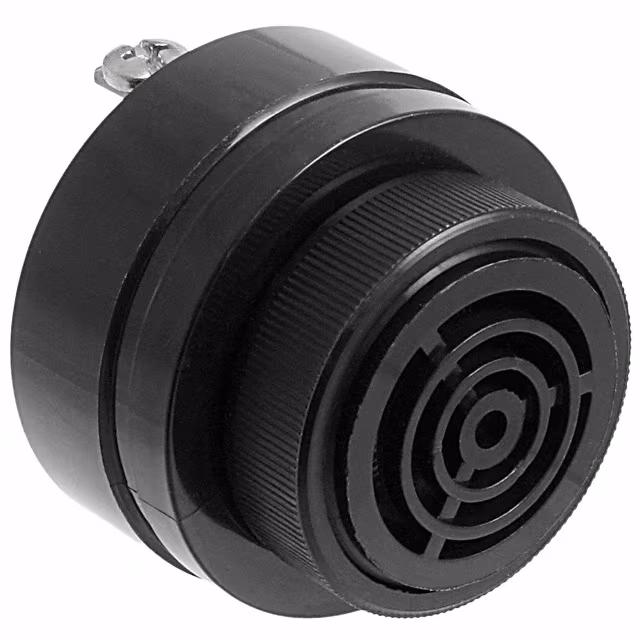

SC628KRBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Short | 0.5 ~ 1.2 PPS | 68dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|

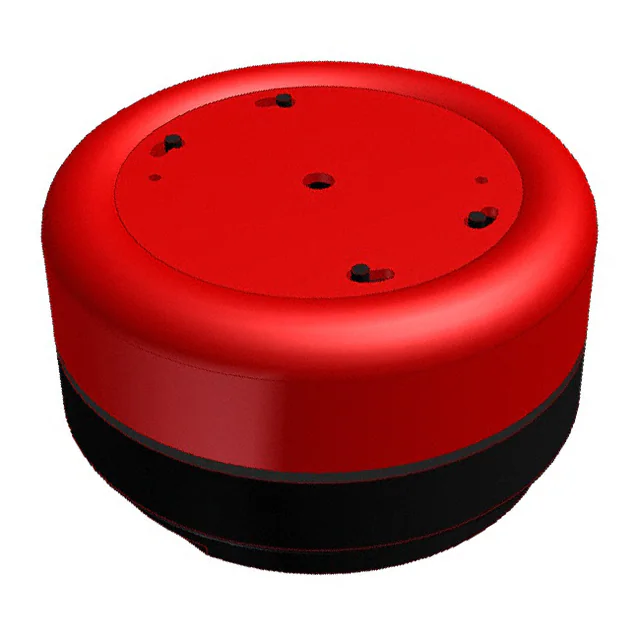

AWB-25R6-12BUZZER MAGNETIC 12V 155MM BASE |
2 |
|
Veri Sayfası |
AWB | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 15V | - | Electromechanical/Magnetic | Gong | - | - | 60mA | Top | -10°C ~ 55°C | - | - | IP55 - Dust Protected, Water Resistant | Base Mount | - | 6.102" Dia (155.00mm) | 3.366" (85.50mm) |
|
ZT028LDFP1RBUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Pulse, Fast, Visual Indicator | 10 PPS | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
AW-05CR-NCBUZZER PIEZO 24V 113MM BASE |
1 |
|
Veri Sayfası |
AW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 10 ~ 28V | Multiple | Piezo | Pin Selectable | Variable | 87dB @ 24V, 100cm | 9 ~ 35mA | Top | -25°C ~ 70°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 4.449" Dia (113.00mm) | 1.083" (27.50mm) |
|
R11-244018-01BUZZER PIEZO 20V 23.6X4MM |
0 |
|
Veri Sayfası |
- | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 20 V | 25V (Max) | 6kHz | Piezo | - | - | 107dB | - | - | -25°C ~ 70°C | - | - | - | - | Solder Pads | 0.929" L x 0.157" W (23.60mm x 4.00mm) | 0.075" (1.90mm) |
|
|
ZA120LAFP1BUZZER PIEZO 30.74MM PNL MNT |
1 |
|
Veri Sayfası |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Pulse, Fast | 10 PPS | 85dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
SC110MNBUZZER PIEZO 42.85MM PNL MNT |
1 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|

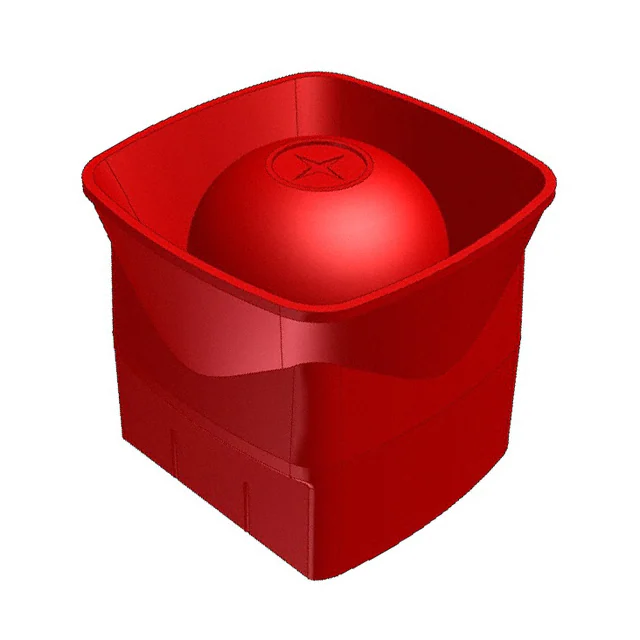

AW-30SBRBUZZER PIEZO 24V 109X109MM BASE |
1 |
|
Veri Sayfası |
AW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 9 ~ 28V | Multiple | Piezo | Pin Selectable | Variable | 108dB @ 24V, 100cm | 190 ~ 260mA | Top | -25°C ~ 55°C | - | - | IP42 | Base Mount | - | 4.291" L x 4.291" W (109.00mm x 109.00mm) | 3.760" (95.50mm) |
|

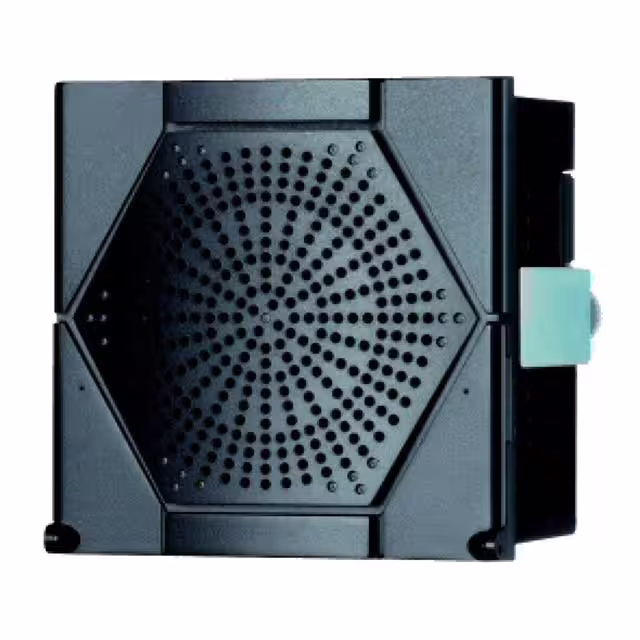

XVS96BMBNBUZZER 24V58.17X96.01MM DIN RAIL |
1 |
|
Veri Sayfası |
Harmony XVS | Box | Active | - | DC | 24 V | - | - | - | - | - | - | 292mA | User Defined | -20°C ~ 50°C | CE | - | IP54 - Dust Protected, Water Resistant | DIN Rail | - | 2.290" L x 3.780" W (58.17mm x 96.01mm) | 3.780" (96.01mm) |
|
|
CMI-0955-12TH9MMX5.5MM 12 V, 85 DB, THROUGH |
0 |
|
Veri Sayfası |
CMI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 28V | 2.7kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 100mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.362" Dia (9.20mm) | 0.224" (5.70mm) |
|
|
PT-1206BUZZER, 9V, 85DB, 4000HZ, 12MM D |
6 |
|
Veri Sayfası |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 20V | 4kHz | Piezo | - | - | 85dB @ 9V, 10cm | 7mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.236" (6.00mm) |
