Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP244003-1BUZZER PIEZO 3V 24.00MM FLANGE |
0 |
|
Veri Sayfası |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 30V | 4.096kHz | Piezo | - | - | 75dB @ 3V, 10cm | 5mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) | 0.236" (6.00mm) |
|
PB-1224PE-12QBUZZER MAGNETIC 12V 12MM TH |
0 |
|
Veri Sayfası |
PB | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 9 ~ 15V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 60mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.406" (10.30mm) |
|
|
PB-1224PEQBUZZER MAGNETIC 1.5V 12MM TH |
0 |
|
Veri Sayfası |
PB | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1.25 ~ 2.5V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 32mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.402" (10.20mm) |
|
CEP-1109BUZZER PIEZO 10V 22.00MM SMD |
0 |
|
Veri Sayfası |
CEP | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 30V (Max) | - | Piezo | Single Tone | - | 80dB @ 10V, 10cm | 7mA | Top | -30°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.866" Dia (22.00mm) | 0.236" (6.00mm) |
|
AST2311MATRQBUZZER PIEZO 9V 23X23MM SMD |
0 |
|
Veri Sayfası |
AST | Tape & Reel (TR) | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 1 ~ 30V | 4kHz | Piezo | Single Tone | - | 100dB @ 9V, 10cm | 8mA | Top | -30°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.437" (11.10mm) |
|
TP222003-1BUZZER PIEZO 3V 22MM TH |
0 |
|
Veri Sayfası |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 30V | 2kHz | Piezo | - | - | 70dB @ 3V, 10cm | 3mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) | 0.472" (12.00mm) |
|
TP134805-1BUZZER PIEZO 5V 13.6MM CUSTOM |
0 |
|
Veri Sayfası |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 30V | 4.8kHz | Piezo | - | - | 80dB @ 5V, 10cm | 5mA | Top | -20°C ~ 60°C | - | - | - | Custom | Wire Leads | 0.535" Dia (13.60mm) | 0.163" (4.15mm) |
|
CMT-1421-87-SMT-TRBUZZER MAGNETIC 5V 0.5X 0.43SMD |
0 |
|
Veri Sayfası |
CMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 3 ~ 6V | 2.73kHz | Magnetic | - | - | 87dB @ 5V, 10cm | 80mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.551" L x 0.433" W (14.00mm x 11.00mm) | 0.138" (3.50mm) |
|
CMT-8503-87-SMT-TRBUZZER MAGNETIC 3.6V 0.3X0.3 SMD |
0 |
|
Veri Sayfası |
CMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2.5 ~ 4.5V | 2.73kHz | Magnetic | - | - | 87dB @ 3.6V, 10cm | 90mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.138" (3.50mm) |
|
|
PMOF-9745S-42KDQANALOG,OMNI,-42,9.7X4.5MM,BUMP 1 |
0 |
|
- |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
.JPG)
|
AST0827MW-03QBUZZER MAGNETIC 3V 0.34X0.34 SMD |
0 |
|
Veri Sayfası |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 2.731kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 80mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.118" (3.00mm) |
.JPG)
|
AST0827MW-03AQBUZZER MAGNETIC 3V 0.34X0.34 SMD |
0 |
|
Veri Sayfası |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 2.731kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 80mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.157" (4.00mm) |
|
|
AST0827MW-03BQBUZZER MAGNETIC 3V 0.34X0.34 SMD |
0 |
|
Veri Sayfası |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 2.7kHz | Magnetic | Single Tone | - | 80dB @ 3V, 10cm | 100mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.118" (3.00mm) |
|

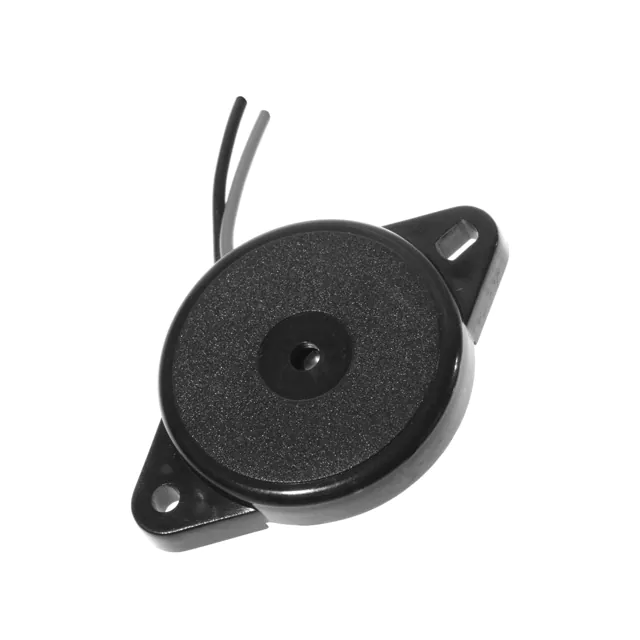

TP234012-1BUZZER PIEZO 12V 23MM FLANGE |
0 |
|
Veri Sayfası |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 40V | 4kHz | Piezo | - | - | 89dB @ 12V, 10cm | 7mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.906" Dia (23.00mm) | 0.197" (5.00mm) |
|
|
SMT-2240-T-3-RBUZZER PIEZO 12V 22.1MM SMD |
0 |
|
- |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 30V | 4kHz | Piezo | - | - | 95dB @ 12V, 10cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.870" Dia (22.10mm) | 0.287" (7.30mm) |
|
1740BUZZER PIEZO 9V 14MM WIRE |
0 |
|
Veri Sayfası |
- | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 9 ~ 40V | 8kHz | Piezo | Single Tone | - | - | - | Top | -20°C ~ 70°C | - | - | - | Wire Lead | Wire Leads | 0.551" Dia (14.00mm) | 0.098" (2.50mm) |
|
|
CMT-0503-03-SMT-TR5MMX3MM 3 V, 80 DB, SURFACE MOU |
0 |
|
Veri Sayfası |
CMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 4V | 4kHz | Magnetic | Single Tone | - | 80dB @ 3V, 10cm | 100mA | Top | -40°C ~ 80°C | - | - | - | Surface Mount | Solder Pads | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.130" (3.30mm) |
|
TE092701-1BUZZER ELECTRO 1.5V 9.6MM TH |
0 |
|
Veri Sayfası |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.731kHz | Electromechanical | - | - | 85dB @ 1.5V, 10cm | 80mA | Side | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.378" Dia (9.60mm) | 0.197" (5.00mm) |
|
TE092701-2BUZZER ELECTRO 1.5V 9MM TH |
0 |
|
Veri Sayfası |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.731kHz | Electromechanical | - | - | 85dB @ 1.5V, 10cm | 80mA | Side | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) | 0.157" (4.00mm) |
|
TE092701-3BUZZER ELECTRO 1.5V 9MM TH |
0 |
|
Veri Sayfası |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.731kHz | Electromechanical | - | - | 80dB @ 1.5V, 10cm | 80mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) | 0.224" (5.70mm) |
