Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMT-0640-T-RBUZZER MAGN 3.6V5.5X5.5MMSMD |
0 |
|
Veri Sayfası |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2 ~ 4V | 4kHz | Magnetic | - | - | 75dB @ 3.6V, 10cm | 130mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.217" L x 0.217" W (5.50mm x 5.50mm) | 0.071" (1.80mm) |
|
SD1614TT-B3MEBUZZER MAGNETIC 5V 16MM FLANGE |
0 |
|
Veri Sayfası |
SD | Bulk | Last Time Buy | - | Zero-Peak Signal | 5 V | 3 ~ 6V | - | Magnetic | - | - | - | - | Top | -40°C ~ 85°C | - | - | - | Panel Mount, Flange | PC Pins | 0.630" Dia (16.00mm) | 0.551" (14.00mm) |
|
SD1614TT-A1BUZZER MAGNETIC 12V 16MM TH |
0 |
|
Veri Sayfası |
SD | Tray | Last Time Buy | Transducer, Externally Driven | Zero-Peak Signal | 12 V | 6 ~ 15V | 2.048kHz | Magnetic | - | - | 85dB @ 12V, 10cm | 100mA | Top | -10°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) | 0.551" (14.00mm) |
|
IE122305-1BUZZER ELECTRO 5V 12MM TH |
0 |
|
Veri Sayfası |
- | Tray | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.3kHz | Electromechanical | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.256" (6.50mm) |
|
|
TP304003-3BUZZER PIEZO |
0 |
|
- |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | - | - | - | Piezo | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TP143305-2BUZZER PIEZO |
0 |
|
Veri Sayfası |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | - | - | - | Piezo | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IE122305-2BUZZER ELECTRO 5V 12MM TH |
0 |
|
Veri Sayfası |
- | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.3kHz | Electromechanical | Single Tone | - | 83dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.295" (7.50mm) |
.JPG)
|
AST0760MCQBUZZER PIEZO 3V 7.5X7.5 SMD |
0 |
|
Veri Sayfası |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 25V | 6kHz | Piezo | Single Tone | - | 74dB @ 12V, 10cm | 6mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.079" (2.00mm) |
|
|
3590MB 12 |
0 |
|
- |
- | Retail Package | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.3kHz | Magnetic | - | - | 88dB @ 5V, 10cm | - | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.374" (9.50mm) |
|
TE122401-3BUZZER ELECTR 1.5V 12.8X12.8 SMD |
0 |
|
Veri Sayfası |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.4kHz | Electromechanical | - | - | 80dB @ 1.5V, 10cm | 30mA | Top | -30°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.280" (7.10mm) |
|
TE122405-5BUZZER ELECTRO 5V 12.8X12.8" SMD |
0 |
|
Veri Sayfası |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 3 ~ 8V | 2.4kHz | Electromechanical | - | - | 85dB @ 5V, 10cm | 40mA | Top | -30°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.280" (7.10mm) |
|

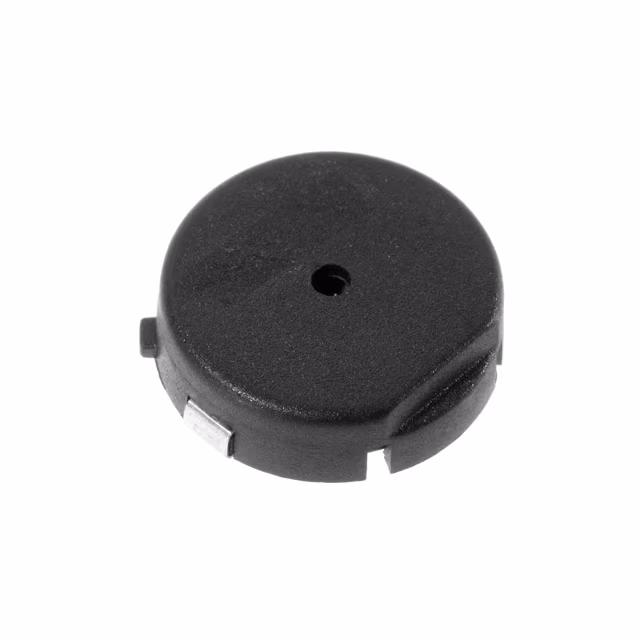

TP204003-1BUZZER PIEZO 3V SMD |
0 |
|
Veri Sayfası |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 30V | 4kHz | Piezo | - | - | 80dB @ 3V, 10cm | 5mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | - | 0.205" (5.20mm) |
.JPG)
|
AST0540MW-3.6QBUZZER MAGN 3.6V 5MMX5MMSMD |
0 |
|
Veri Sayfası |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 3.6 V | 2 ~ 4V | 4kHz | Magnetic | Single Tone | - | 80dB @ 12V, 10cm | 110mA | Top | -20°C ~ 60°C | - | - | - | Surface Mount | Solder Pads | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
.JPG)
|
AST0540MW-03QBUZZER MAGN 3V 5MMX5MMSMD |
0 |
|
Veri Sayfası |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 4kHz | Magnetic | Single Tone | - | 75dB @ 3V, 10cm | 110mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.075" (1.90mm) |
|
WT-1601BUZZER MAGNETIC 1.5V 16MM TH |
0 |
|
Veri Sayfası |
WT | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 12mA | Top | -20°C ~ 60°C | - | Washable | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) | 0.563" (14.30mm) |
|
WT-1606BUZZER MAGNETIC 6V 16MM TH |
0 |
|
Veri Sayfası |
WT | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 6 V | 4 ~ 8V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 6V, 10cm | 40mA | Top | -20°C ~ 60°C | - | Washable | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) | 0.563" (14.30mm) |
|
WT-1612BUZZER MAGNETIC 12V 16MM TH |
0 |
|
Veri Sayfası |
WT | Bulk | Active | Transducer, Externally Driven | Zero-Peak Signal | 12 V | 9 ~ 15V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 40mA | Top | -20°C ~ 60°C | - | Washable | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) | 0.563" (14.30mm) |
|
PST1423P02BUZZER PIEZO 24V14X14MM SMD |
0 |
|
Veri Sayfası |
PS | Tape & Reel (TR) | Not For New Designs | Transducer, Externally Driven | Peak-Peak Signal | 24 V | 30V (Max) | 2.3kHz | Piezo | - | - | 84dB @ 24V, 10cm | - | - | -10°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.551" L x 0.551" W (14.00mm x 14.00mm) | 0.354" (9.00mm) |
|
CT03E-04S400-1BBUZZER MAGN 3V 0.12"X 0.12" SMD |
0 |
|
Veri Sayfası |
- | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 4V | 4kHz | Magnetic | Single Tone | - | 72dB @ 3V, 10cm | 120mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) | |
|
TP124512-1BUZZER PIEZO 12V 12MM TH |
0 |
|
Veri Sayfası |
- | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 30V | 4.5kHz | Piezo | - | - | 80dB @ 12V, 10cm | 5mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.295" (7.50mm) |
