Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSW5VMCFPBUZZER 3-5.5V 23MM TH |
0 |
|
Veri Sayfası |
MSW | Bulk | Active | Indicator, Internally Driven | DC | - | 2.7 ~ 5.5V | 150Hz ~ 4kHz | - | Single Tone, Pulse, Fast | - | 90dB @ 5.5V, 10cm | 400mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) | 0.517" (13.13mm) |
|
SC648DRBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 1.9kHz | Piezo | Single Tone | - | 60dB @ 10V, 61cm | 4 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
SBT5LM0PCBUZZER PIEZO 44.5MM TH |
4 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Single Tone | - | 85dB @ 3.3V, 10cm | 35mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) | 0.551" (14.00mm) |
|
|
SC648HRBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
|
SC628HRBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 30mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
PS-521QBUZZER PIEZO 12V 57.5X44.5 BRKT |
0 |
|
Veri Sayfası |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 3kHz | Piezo | Pulse, Slow | - | 105dB @ 12V, 100cm | 200mA | User Defined | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 2.263" L x 1.752" W (57.50mm x 44.50mm) | 1.594" (40.50mm) |
|
|
BS 1740BUZZER AUDIO |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SC616JRBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 6V, 61cm | 2 ~ 9mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
PS-552QBUZZER PIEZO 12V 54.3MM BRACKET |
0 |
|
Veri Sayfası |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.5kHz | Piezo | Warble, Slow | 1.2 PPS | 105dB @ 12V, 100cm | 200mA | User Defined | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 2.138" Dia (54.30mm) | 1.622" (41.02mm) |
|
|
PLD-35N29EPQBUZZER PIEZO 43MM PNL MNT |
0 |
|
Veri Sayfası |
PLD | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | Pin Selectable | Variable | - | - | - | - | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.693" Dia (43.00mm) | 1.276" (32.40mm) |
|
|
SC105BUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 1 ~ 5V | 2.9kHz | Piezo | Single Tone | - | 60dB @ 1V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
|
SC416BUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 4V, 61cm | 4 ~ 14mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.809" (45.96mm) |
|
|
SC628FBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 55dB @ 6V, 61cm | 2 ~ 4mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|

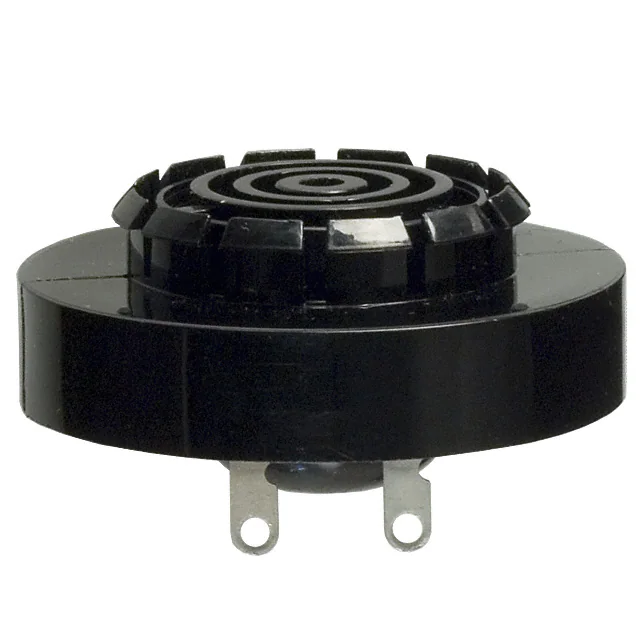

SNP2BUZZER PIEZO 41.66MM PNL MNT |
0 |
|
Veri Sayfası |
SNP | Bulk | Active | Indicator, Internally Driven | DC | - | 1 ~ 5V | 2.9kHz | Piezo | Single Tone | - | 55dB @ 1V, 61cm | 3 ~ 12mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.125" (3.20mm) | 1.640" Dia (41.66mm) | 0.907" (23.03mm) |
|
|
MSE14LSN2BUZZER PIEZO 23X23MM TH |
0 |
|
Veri Sayfası |
MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 4kHz | Piezo | Siren, Fast | 3.5 SPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.535" (13.60mm) |
|
|
MSE14LCM1BUZZER PIEZO 23X23MM TH |
0 |
|
Veri Sayfası |
MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Chime | Repeating every 3 Sec | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.535" (13.60mm) |
|

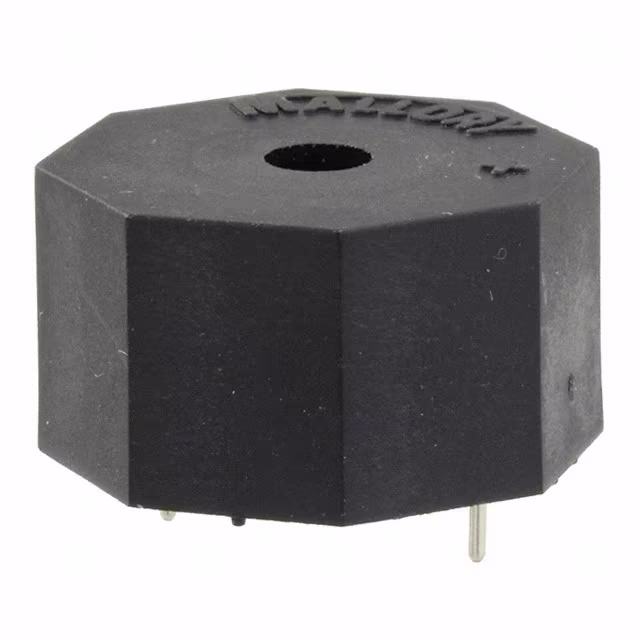

MSE14LDT8BUZZER PIEZO 23X23MM TH |
0 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.85kHz | Piezo | Warble, Slow | 1.5 WPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.535" (13.60mm) |
|
|
MSE14LPS1BUZZER PIEZO 23X23MM TH |
0 |
|
Veri Sayfası |
MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Pulse, Short | 1 PPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.535" (13.60mm) |
|
|
MSE14LWH1BUZZER PIEZO 23X23MM TH |
0 |
|
Veri Sayfası |
MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.95kHz | Piezo | Whooping | 5 SPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.535" (13.60mm) |
|
|
MSE14LWH2BUZZER PIEZO 23X23MM TH |
0 |
|
Veri Sayfası |
MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.95kHz | Piezo | Whooping | 1 SPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.535" (13.60mm) |
