Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBS12LMMEPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.591" (15.00mm) |
|

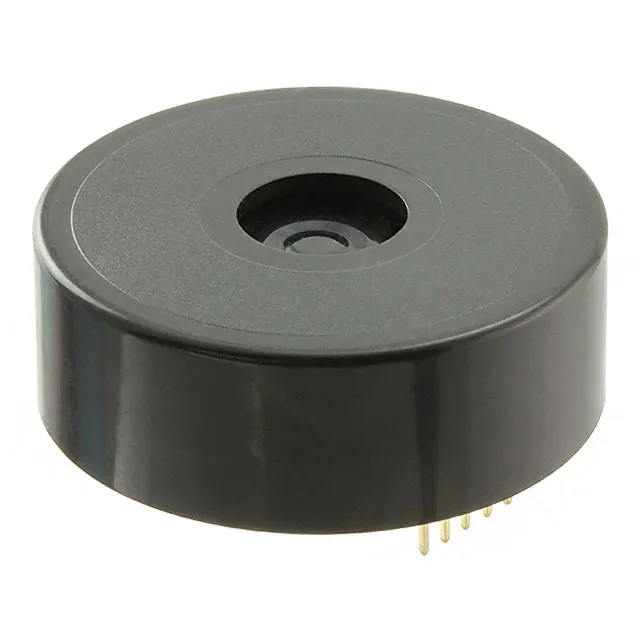

SBS12LMMPPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.591" (15.00mm) |
|
SBS12LMMTPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.591" (15.00mm) |
|
SBS12LMMVPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.591" (15.00mm) |
|
SBS12LMMXPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.591" (15.00mm) |
|
SC648ANJRBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC | - | 10 ~ 48V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 91dB @ 10V, 61cm | 4 ~ 26mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
|
SCE016XD2DB2FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE028XD2DB3FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE016XD2DB3FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE028XD2DB1FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE028XD2DB2FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE016XD2DB1SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE016XD2DB1FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
SBT12GLPCBUZZER PIEZO 44.45MM TH |
0 |
|
Veri Sayfası |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 150Hz ~ 4kHz | Piezo | - | Repeating every 30 Sec | 85dB @ 9V, 10cm | 25mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.551" (14.00mm) |
|
|
SCE048XD2DB1FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE048XD2DB3FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE048XD2DB3SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE048XD2DB2FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE048XD2DB1SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE048XD2DB2SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
