Alarmalar, Buzzertlar ve Sirenler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Sürücü Devresi | Giriş Türü | Voltaj - Nominal | Voltaj Aralığı | Frekans | Teknoloji | Çalışma Modu | Süre | Ses Basıncı Seviyesi (SPL) | Akım - Besleme | Port Konumu | Çalışma Sıcaklığı | Onay Ajansı | Dereceler | Giriş Koruma | Montaj Türü | Sonlandırma | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSC616BUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
LSC | Bulk | Obsolete | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 45 ~ 67mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.431" (36.34mm) |
|

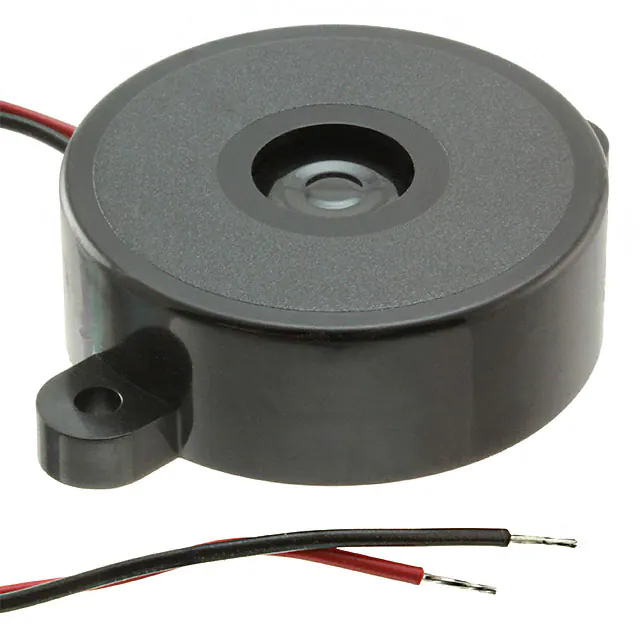

SBS12M0FLBUZZER MAGNETIC 44.5MM FLANGE |
0 |
|
Veri Sayfası |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Single Tone | - | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.752" Dia (44.50mm) | 0.591" (15.00mm) |
|
ZT028LDCTGBUZZER PIEZO 30.74MM PNL MNT |
1 |
|
Veri Sayfası |
ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
SCE016LD3CTBBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
ZA028SAMP1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZA028SASP1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Slow | 1 PPS | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
ZA028MAFP1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Fast | 10 PPS | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZA028MAMP1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZA028MASP1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Slow | 1 PPS | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZA028SAFP1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Veri Sayfası |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Fast | 10 PPS | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
SC110FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 55dB @ 30V, 61cm | 1 ~ 6mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SCL016MD3SP1B6-16VDC 75-85DB SP CUL ROHS NSK |
0 |
|
Veri Sayfası |
- | Retail Package | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | - | Pulse, Slow | - | 75dB @ 6V, 61cm | 30mA | Top | -40°C ~ 85°C | cUL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.510" (38.35mm) |
|
|
SC648ABUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Veri Sayfası |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
SBT5GMPCBUZZER PIEZO 44.45MM TH |
0 |
|
Veri Sayfası |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 150Hz ~ 4kHz | Piezo | - | Repeating every 7.5 Sec | 85dB @ 3.3V, 10cm | 35mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.551" (14.00mm) |
|
|
SBT5GLPCBUZZER PIEZO 44.45MM TH |
0 |
|
Veri Sayfası |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 150Hz ~ 4kHz | Piezo | - | Repeating every 30 Sec | 85dB @ 3.3V, 10cm | 35mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.551" (14.00mm) |
|
|
SBT5GHPCBUZZER PIEZO 44.45MM TH |
0 |
|
Veri Sayfası |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 150Hz ~ 4kHz | Piezo | - | Repeating every 2.5 Sec | 85dB @ 3.3V, 10cm | 35mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.551" (14.00mm) |
|
SBT5VHPCBUZZER PIEZO 44.45MM TH |
0 |
|
Veri Sayfası |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pulse, Fast | Repeating every 2.5 Sec | 85dB @ 3.3V, 10cm | 35mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.551" (14.00mm) |
|
|
SBT5EMPCBUZZER PIEZO 44.45MM TH |
0 |
|
Veri Sayfası |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pulse, Medium | Repeating every 7.5 Sec | 85dB @ 3.3V, 10cm | 35mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.551" (14.00mm) |
|
|
SBT5DMPCBUZZER PIEZO 44.45MM TH |
0 |
|
Veri Sayfası |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pulse, Medium | Repeating every 7.5 Sec | 85dB @ 3.3V, 10cm | 35mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.551" (14.00mm) |
|
|
SBT5CMPCBUZZER PIEZO 44.45MM TH |
0 |
|
Veri Sayfası |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pulse, Medium | Repeating every 7.5 Sec | 85dB @ 3.3V, 10cm | 35mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.551" (14.00mm) |
