Alüminyum Elektrolitik Kondansörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Paket/Kutular | Seri | Paketlenme | Ürün Durumu | Kapasite | Tolerans | Voltaj - Nominal | ESR (Eşdeğer Seri Direnci) | Yaşam Süresi @ Sıcaklık | Çalışma Sıcaklığı | Polarizasyon | Dereceler | Uygulamalar | Dalgalanma Akımı @ Düşük Frekans | Dalgalanma Akımı @ Yüksek Frekans | Empedans | Bağlantı Aralığı | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) | Yüzey Takılı Toprak Boyutu | Montaj Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GM2W391MND3535CAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Veri Sayfası |
GM | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.86 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
ALO8AD471DC400CAP ALUM 105C 470UF 400VDC |
0 |
|
Veri Sayfası |
ALO8A | Tray | Active | 470 µF | ±20% | 400 V | 331.8mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.16 A @ 100 Hz | 5.66 A @ 10 kHz | 167.2 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole, Press-Fit | |
|
|
B43548B5277M060CAP ALUM 450V POLAR |
0 |
|
Veri Sayfası |
B43548 | Bulk | Active | 270 µF | ±20% | 450 V | 300mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | 440 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
160USC820MEFC22X40CAP ALUM 820UF 20% 160V SNAP TH |
0 |
|
Veri Sayfası |
USC | Bulk | Not For New Designs | 820 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.68 A @ 120 Hz | 4.02 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
180MXG2200MEFCSN30X50CAP ALUM 2200UF 20% 180V SNAP TH |
0 |
|
Veri Sayfası |
MXG | Bulk | Active | 2200 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.12 A @ 120 Hz | 4.68 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

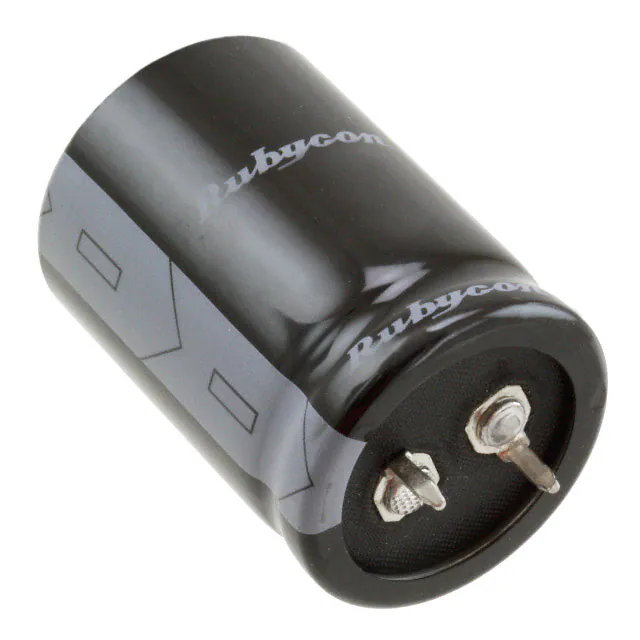

450HXG180MEFC25X35CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Veri Sayfası |
HXG | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.73 A @ 120 Hz | 2.422 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALC40A121DC450CAP ALUM SNAP-IN 105C |
0 |
|
Veri Sayfası |
ALC40 | Box | Active | 120 µF | ±20% | 450 V | 810mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 100 Hz | 3.11 A @ 10 kHz | 565 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ELG108M250AT3AACAP ALUM SNAP-IN 105C |
0 |
|
Veri Sayfası |
ELG | Bulk | Active | 1 mF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ELG337M450AT4AACAP ALUM SNAP-IN 105C |
0 |
|
Veri Sayfası |
ELG | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.03 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ELXQ401VSN681MA50SCAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
- |
LXQ | Bulk | Active | 680 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.4177 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
E82D201VQT821MB25UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
ALA8AF391DC400CAP ALUM 400V POLAR |
0 |
|
Veri Sayfası |
ALA8A | Bulk | Active | 390 µF | ±20% | 400 V | 394mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.2 A @ 100 Hz | 5.4 A @ 10 kHz | 234 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA8AD391DC400CAP ALUM 400V POLAR |
0 |
|
Veri Sayfası |
ALA8A | Bulk | Active | 390 µF | ±20% | 400 V | 394mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.2 A @ 100 Hz | 5.4 A @ 10 kHz | 234 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALO8AA351DB450CAP ALUM 105C 350UF 450VDC |
0 |
|
Veri Sayfası |
ALO8A | Tray | Active | 350 µF | ±20% | 450 V | 493mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.85 A @ 100 Hz | 4.86 A @ 10 kHz | 281.6 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole, Press-Fit | |
|
|
ALO8AF331CC450CAP ALUM 105C 330UF 450VDC |
0 |
|
Veri Sayfası |
ALO8A | Tray | Active | 330 µF | ±20% | 450 V | 518mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.72 A @ 100 Hz | 4.8 A @ 10 kHz | 293.6 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole, Press-Fit | |
|
MAL205258479E3CAP ALUM 47UF 385V RADIAL TH |
0 |
|
Veri Sayfası |
052 PED-PW | Tape & Box (TB) | Active | 47 µF | -10%, +30% | 385 V | 2.37Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 500 mA @ 100 Hz | - | 1.55 Ohms | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
MAL209343471E3CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Veri Sayfası |
093 PMG-SI | Tape & Box (TB) | Active | 470 µF | ±20% | 250 V | 250mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | - | 160 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL225923561E3CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 560 µF | ±20% | 250 V | 260mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.13 A @ 100 Hz | 3.195 A @ 10 kHz | 180 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225963561E3CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 560 µF | ±20% | 250 V | 260mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.13 A @ 100 Hz | 3.195 A @ 10 kHz | 180 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKMS161VSN222MR45SCAP ALUM 2200UF 20% 160V SNAP TH |
0 |
|
Veri Sayfası |
KMS | Bulk | Active | 2200 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.05 A @ 120 Hz | 6.075 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole |
