Alüminyum Elektrolitik Kondansörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Paket/Kutular | Seri | Paketlenme | Ürün Durumu | Kapasite | Tolerans | Voltaj - Nominal | ESR (Eşdeğer Seri Direnci) | Yaşam Süresi @ Sıcaklık | Çalışma Sıcaklığı | Polarizasyon | Dereceler | Uygulamalar | Dalgalanma Akımı @ Düşük Frekans | Dalgalanma Akımı @ Yüksek Frekans | Empedans | Bağlantı Aralığı | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) | Yüzey Takılı Toprak Boyutu | Montaj Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS81H163QT400CAP ALUM 16000UF 20% 400V SCREW |
0 |
|
Veri Sayfası |
ALS81 | Bulk | Active | 16000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.7 A @ 100 Hz | 32.4 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
CGH292T350W3LCAP ALUM 2900UF 350V SCREW CHAS |
0 |
|
Veri Sayfası |
CGH | Bulk | Active | 2900 µF | -10%, +50% | 350 V | 53.1mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.8 A @ 120 Hz | 8.364 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
|
ALS80A433QT200CAP ALUM 43000UF 20% 200V SCREW |
0 |
|
Veri Sayfası |
ALS80 | Bulk | Active | 43000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27.4 A @ 100 Hz | 32.5 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|

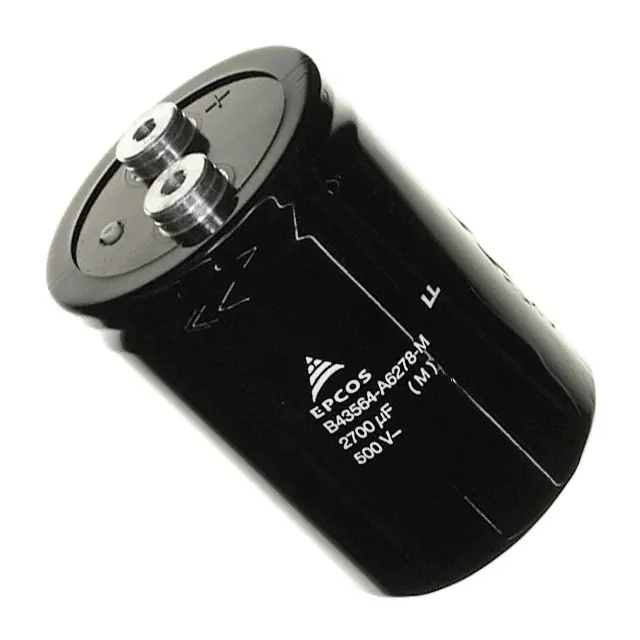

B43564A6278M000CAP ALUM 2700UF 20% 500V SCREW |
0 |
|
Veri Sayfası |
B43564 | Bulk | Obsolete | 2700 µF | ±20% | 500 V | 60mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | - | 43 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.161" (105.70mm) | - | Chassis Mount | |
|
LNU2W682MSEJBBCAP ALUM 6800UF 20% 450V SCREW |
0 |
|
Veri Sayfası |
LNU | Bulk | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.5 A @ 120 Hz | 31.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.039" (128.00mm) | - | Chassis Mount | |
|
|
LNU2W682MSEJBNCAP ALUM 6800UF 20% 450V SCREW |
0 |
|
Veri Sayfası |
LNU | Bulk | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.5 A @ 120 Hz | 31.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.039" (128.00mm) | - | Chassis Mount | |
|
|
LNU2W682MTEJCAP ALUM 6800UF 20% 450V SCREW |
0 |
|
Veri Sayfası |
LNU | Bulk | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.5 A @ 120 Hz | 31.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.039" (128.00mm) | - | Chassis Mount | |
|
|
LNR2C683MSEBCAP ALUM 68000UF 20% 160V SCREW |
0 |
|
Veri Sayfası |
LNR | Bulk | Active | 68000 µF | ±20% | 160 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 22.3 A @ 120 Hz | 26.76 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
CGR373U050X5LCAP ALUM 37000UF 50V SCREW CHAS |
0 |
|
Veri Sayfası |
CGR | Bulk | Active | 37000 µF | -10%, +75% | 50 V | 5.1mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 A @ 120 Hz | 34.5 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
MAL210217332E3CAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Veri Sayfası |
102 PHR-ST | Bulk | Active | 3300 µF | ±20% | 450 V | 37mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.5 A @ 100 Hz | - | 24 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210257332E3CAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Veri Sayfası |
102 PHR-ST | Bulk | Active | 3300 µF | ±20% | 450 V | 37mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.5 A @ 100 Hz | - | 24 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
LNC2G103MTEHCAP ALUM 400V POLAR |
0 |
|
Veri Sayfası |
LNC | Bulk | Active | 10 mF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.5 A @ 120 Hz | 41.3 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 6.614" (168.00mm) | - | Chassis Mount | |
|
B43713A6478M050CAP ALUM 4700UF 20% 500V SCREW |
0 |
|
- |
B43713 | Bulk | Active | 4700 µF | ±20% | 500 V | 22mOhm @ 100Hz | 12000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.5 A @ 100 Hz | - | 34 mOhms | 1.248" (31.70mm) | 3.543" Dia (90.00mm) | 5.728" (145.50mm) | - | Chassis Mount | |
|
|
B43724B7278M000CAP ALUM 2700UF 20% 550V SCREW |
0 |
|
Veri Sayfası |
B43724 | Bulk | Active | 2700 µF | ±20% | 550 V | 40mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.2 A @ 100 Hz | - | - | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
E37F501CSN123MFM9UCAP ALUM 12MF 20% 500V SCREW CHA |
0 |
|
- |
U37F | Bulk | Active | 12 mF | ±20% | 500 V | 8mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.5 A @ 120 Hz | 46.9 A @ 3 kHz | - | 1.252" (31.80mm) | 3.504" Dia (89.00mm) | 8.661" (220.00mm) | - | Chassis Mount | |
|
|
LNX2W822MSEHBBCAP ALUM 8200UF 20% 450V SCREW |
0 |
|
Veri Sayfası |
LNX | Bulk | Active | 8200 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.3 A @ 120 Hz | 28.42 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
LNX2W822MSEHBNCAP ALUM 8200UF 20% 450V SCREW |
0 |
|
Veri Sayfası |
LNX | Bulk | Active | 8200 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.3 A @ 120 Hz | 28.42 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
PEH200ZX4330MB2CAP ALUM SCRW TERM 85C |
0 |
|
Veri Sayfası |
PEH200 | Box | Active | 3.3 mF | ±20% | 500 V | 43mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 100 Hz | 29 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
500X442T450DF2ACAP ALUM 4400UF 450V SCREW CHAS |
0 |
|
- |
500 | Bulk | Active | 4400 µF | -10%, +50% | 450 V | - | 2000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount | |
|
|
B43732B5568M000CAP ALUM 5600UF 20% 450V SCREW |
0 |
|
- |
B43732 | Bulk | Active | 5600 µF | ±20% | 450 V | 22mOhm @ 100Hz | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.6 A @ 100 Hz | - | 34 mOhms | 1.248" (31.70mm) | 3.543" Dia (90.00mm) | 5.728" (145.50mm) | - | Chassis Mount |
