Alüminyum Elektrolitik Kondansörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Paket/Kutular | Seri | Paketlenme | Ürün Durumu | Kapasite | Tolerans | Voltaj - Nominal | ESR (Eşdeğer Seri Direnci) | Yaşam Süresi @ Sıcaklık | Çalışma Sıcaklığı | Polarizasyon | Dereceler | Uygulamalar | Dalgalanma Akımı @ Düşük Frekans | Dalgalanma Akımı @ Yüksek Frekans | Empedans | Bağlantı Aralığı | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) | Yüzey Takılı Toprak Boyutu | Montaj Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41554E5109Q000CAP ALUM 10000UF 25V SCREW CHAS |
0 |
|
- |
B41554 | Bulk | Obsolete | 10000 µF | -10%, +30% | 25 V | 28mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 5.4 A @ 100 Hz | - | 21 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41554E5159Q000CAP ALUM 15000UF 25V SCREW CHAS |
0 |
|
- |
B41554 | Bulk | Obsolete | 15000 µF | -10%, +30% | 25 V | 24mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.8 A @ 100 Hz | - | 17 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41554E5229Q000CAP ALUM 22000UF 25V SCREW CHAS |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 22000 µF | -10%, +30% | 25 V | 20mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 8.1 A @ 100 Hz | - | 15 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41554E7109Q000CAP ALUM 10000UF 40V SCREW CHAS |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 10000 µF | -10%, +30% | 40 V | 27mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.7 A @ 100 Hz | - | 17 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41554E7159Q000CAP ALUM 15000UF 40V SCREW CHAS |
0 |
|
- |
B41554 | Bulk | Obsolete | 15000 µF | -10%, +30% | 40 V | 20mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 8 A @ 100 Hz | - | 12 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41554E7478Q000CAP ALUM 4700UF 40V SCREW CHAS M |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 4700 µF | -10%, +30% | 40 V | 33mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 5.2 A @ 100 Hz | - | 24 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
|
B41554E8228Q000CAP ALUM 2200UF 63V SCREW CHAS M |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 2200 µF | -10%, +30% | 63 V | 60mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 3.4 A @ 100 Hz | - | 30 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
|
B41554E8338Q000CAP ALUM 3300UF 63V SCREW CHAS M |
0 |
|
- |
B41554 | Bulk | Obsolete | 3300 µF | -10%, +30% | 63 V | 39mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 4.9 A @ 100 Hz | - | 24 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
B41554E8478Q000CAP ALUM 4700UF 63V SCREW CHAS M |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 4700 µF | -10%, +30% | 63 V | 31mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.2 A @ 100 Hz | - | 20 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41554E8688Q000CAP ALUM 6800UF 63V SCREW CHAS M |
0 |
|
- |
B41554 | Bulk | Obsolete | 6800 µF | -10%, +30% | 63 V | 23mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 7.2 A @ 100 Hz | - | 17 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41554E9228Q000CAP ALUM 2200UF 100V SCREW CHAS |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 2200 µF | -10%, +30% | 100 V | 57mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 4.2 A @ 100 Hz | - | 30 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41554E9338Q000CAP ALUM 3300UF 100V SCREW CHAS |
0 |
|
- |
B41554 | Bulk | Obsolete | 3300 µF | -10%, +30% | 100 V | 37mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 5.4 A @ 100 Hz | - | 24 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
B41560A5159M000CAP ALUM 15000UF 20% 25V SCREW |
0 |
|
Veri Sayfası |
B41560 | Bulk | Obsolete | 15000 µF | ±20% | 25 V | 42mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.3 A @ 100 Hz | - | 31 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
B41560A5229M000CAP ALUM 22000UF 20% 25V SCREW |
0 |
|
Veri Sayfası |
B41560 | Bulk | Obsolete | 22000 µF | ±20% | 25 V | 29mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.4 A @ 100 Hz | - | 22 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41560A5339M000CAP ALUM 33000UF 20% 25V SCREW |
0 |
|
Veri Sayfası |
B41560 | Bulk | Obsolete | 33000 µF | ±20% | 25 V | 20mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.8 A @ 100 Hz | - | 17 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
B41560A5479M000CAP ALUM 47000UF 20% 25V SCREW |
0 |
|
Veri Sayfası |
B41560 | Bulk | Obsolete | 47000 µF | ±20% | 25 V | 16mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 13 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41560A7159M000CAP ALUM 15000UF 20% 40V SCREW |
0 |
|
Veri Sayfası |
B41560 | Bulk | Obsolete | 15000 µF | ±20% | 40 V | 23mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.4 A @ 100 Hz | - | 16 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41560A7229M000CAP ALUM 22000UF 20% 40V SCREW |
0 |
|
Veri Sayfası |
B41560 | Bulk | Obsolete | 22000 µF | ±20% | 40 V | 17mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.5 A @ 100 Hz | - | 14 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|

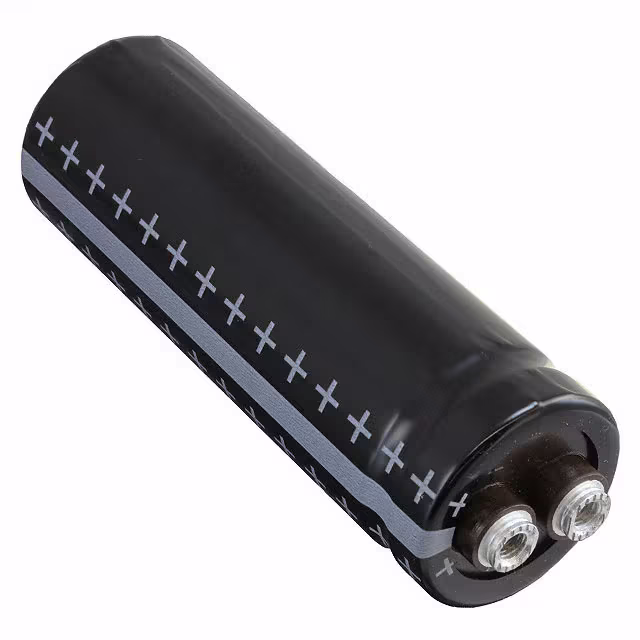

B41560A8109M000CAP ALUM 10000UF 20% 63V SCREW |
0 |
|
Veri Sayfası |
B41560 | Bulk | Obsolete | 10000 µF | ±20% | 63 V | 27mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.1 A @ 100 Hz | - | 16 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41560A8478M000CAP ALUM 4700UF 20% 63V SCREW CH |
0 |
|
Veri Sayfası |
B41560 | Bulk | Obsolete | 4700 µF | ±20% | 63 V | 60mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 100 Hz | - | 64 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount |
