Alüminyum Elektrolitik Kondansörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Paket/Kutular | Seri | Paketlenme | Ürün Durumu | Kapasite | Tolerans | Voltaj - Nominal | ESR (Eşdeğer Seri Direnci) | Yaşam Süresi @ Sıcaklık | Çalışma Sıcaklığı | Polarizasyon | Dereceler | Uygulamalar | Dalgalanma Akımı @ Düşük Frekans | Dalgalanma Akımı @ Yüksek Frekans | Empedans | Bağlantı Aralığı | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) | Yüzey Takılı Toprak Boyutu | Montaj Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41554E8229Q000CAP ALUM 22000UF 63V SCREW CHAS |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 22000 µF | -10%, +30% | 63 V | 12mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 13 A @ 100 Hz | - | 9 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41554E9109Q000CAP ALUM 10000UF 100V SCREW CHAS |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 10000 µF | -10%, +30% | 100 V | 15mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 14 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41554E9688Q000CAP ALUM 6800UF 100V SCREW CHAS |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 6800 µF | -10%, +30% | 100 V | 22mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 9.1 A @ 100 Hz | - | 17 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
B41560A7100M003CAP ALUM 100000UF 20% 40V SCREW |
0 |
|
Veri Sayfası |
B41560 | Bulk | Active | 100000 µF | ±20% | 40 V | 8.2mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | - | 7 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41560A9159M003CAP ALUM 15000UF 20% 100V SCREW |
0 |
|
Veri Sayfası |
B41560 | Bulk | Active | 15000 µF | ±20% | 100 V | 10mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 10 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41570E4100Q000CAP ALUM 100000UF 16V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 100000 µF | -10%, +30% | 16 V | 10mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 19 A @ 100 Hz | - | 9 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41570E4689Q000CAP ALUM 68000UF 16V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 68000 µF | -10%, +30% | 16 V | 13mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 13 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570E5479Q000CAP ALUM 47000UF 25V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 47000 µF | -10%, +30% | 25 V | 13mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 11 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570E5689Q000CAP ALUM 68000UF 25V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 68000 µF | -10%, +30% | 25 V | 11mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 9 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41570E7339Q000CAP ALUM 33000UF 40V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 33000 µF | -10%, +30% | 40 V | 12mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 12 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|

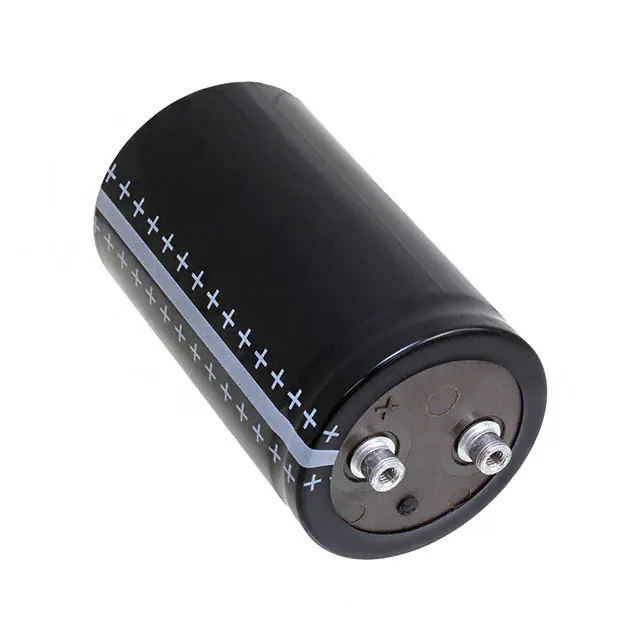

B41570E7479Q000CAP ALUM 47000UF 40V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 47000 µF | -10%, +30% | 40 V | 8mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 8 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41570E8159Q000CAP ALUM 15000UF 63V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 15000 µF | -10%, +30% | 63 V | 13mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 15 A @ 100 Hz | - | 11 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570E8229Q000CAP ALUM 22000UF 63V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 22000 µF | -10%, +30% | 63 V | 10mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 9 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|

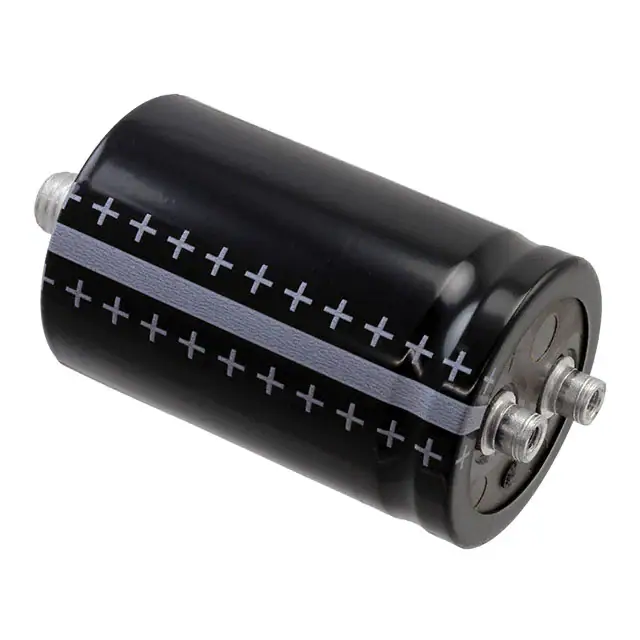

B41570E9109Q000CAP ALUM 10000UF 100V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 10000 µF | -10%, +30% | 100 V | 15mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 16 A @ 100 Hz | - | 14 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570E9159Q000CAP ALUM 15000UF 100V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 15000 µF | -10%, +30% | 100 V | 13mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 18 A @ 100 Hz | - | 11 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41570E9688Q000CAP ALUM 6800UF 100V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 6800 µF | -10%, +30% | 100 V | 20mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 13 A @ 100 Hz | - | 17 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41580A9159M003CAP ALUM 15000UF 20% 100V SCREW |
0 |
|
Veri Sayfası |
B41580 | Bulk | Active | 15000 µF | ±20% | 100 V | 10mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 10 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis, Stud Mount | |
|
|
B43454A4338M000CAP ALUM 3300UF 20% 350V SCREW |
0 |
|
Veri Sayfası |
B43454 | Bulk | Obsolete | 3300 µF | ±20% | 350 V | 60mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.9 A @ 100 Hz | - | 48 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B43454A4398MCAP ALUM 3900UF 20% 350V SCREW |
0 |
|
Veri Sayfası |
B43454 | Bulk | Active | 3900 µF | ±20% | 350 V | 53mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.8 A @ 100 Hz | - | 42 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B43454A4478M000CAP ALUM 4700UF 20% 350V SCREW |
0 |
|
Veri Sayfası |
B43454 | Bulk | Obsolete | 4700 µF | ±20% | 350 V | 45mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.2 A @ 100 Hz | - | 36 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 5.677" (144.20mm) | - | Chassis Mount |
