Alüminyum Elektrolitik Kondansörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Paket/Kutular | Seri | Paketlenme | Ürün Durumu | Kapasite | Tolerans | Voltaj - Nominal | ESR (Eşdeğer Seri Direnci) | Yaşam Süresi @ Sıcaklık | Çalışma Sıcaklığı | Polarizasyon | Dereceler | Uygulamalar | Dalgalanma Akımı @ Düşük Frekans | Dalgalanma Akımı @ Yüksek Frekans | Empedans | Bağlantı Aralığı | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) | Yüzey Takılı Toprak Boyutu | Montaj Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43584F2478M3CAP ALUM 4700UF 20% 200V SCREW |
0 |
|
Veri Sayfası |
B43584 | Bulk | Obsolete | 4700 µF | ±20% | 200 V | 29mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 35 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.217" (81.70mm) | - | Chassis, Stud Mount | |
|
|
B43750A4128M7CAP ALUM 1200UF 20% 350V SCREW |
0 |
|
Veri Sayfası |
B43750 | Bulk | Active | 1200 µF | ±20% | 350 V | 49mOhm @ 100Hz | 8000 Hrs @ 105°C | - | Polar | - | General Purpose | 9.5 A @ 100 Hz | - | 32 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.201" (81.30mm) | - | Chassis Mount | |
|
|
B43750A5567M7CAP ALUM 560UF 20% 450V SCREW CH |
0 |
|
Veri Sayfası |
B43750 | Bulk | Active | 560 µF | ±20% | 450 V | 110mOhm @ 100Hz | 8000 Hrs @ 105°C | - | Polar | - | General Purpose | 7.7 A @ 100 Hz | - | 180 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.201" (81.30mm) | - | Chassis Mount | |
|
|
B43750A5857M7CAP ALUM 850UF 20% 450V SCREW CH |
0 |
|
Veri Sayfası |
B43750 | Bulk | Active | 850 µF | ±20% | 450 V | 75mOhm @ 100Hz | 8000 Hrs @ 105°C | - | Polar | - | General Purpose | 9.1 A @ 100 Hz | - | 120 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.185" (106.30mm) | - | Chassis Mount | |
|
|
B43750A9857M7CAP ALUM 850UF 20% 400V SCREW CH |
0 |
|
Veri Sayfası |
B43750 | Bulk | Active | 850 µF | ±20% | 400 V | 70mOhm @ 100Hz | 8000 Hrs @ 105°C | - | Polar | - | General Purpose | 9.5 A @ 100 Hz | - | 110 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.201" (81.30mm) | - | Chassis Mount | |
|
B41550E8109Q000CAP ALUM 10000UF 63V SCREW CHAS |
0 |
|
Veri Sayfası |
B41550 | Bulk | Obsolete | 10000 µF | -10%, +30% | 63 V | 18mOhm @ 100Hz | 20000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 13 A @ 100 Hz | - | 14 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41550E9478Q000CAP ALUM 4700UF 100V SCREW CHAS |
0 |
|
Veri Sayfası |
B41550 | Bulk | Obsolete | 4700 µF | -10%, +30% | 100 V | 29mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 20 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41554E4479Q000CAP ALUM 47000UF 16V SCREW CHAS |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 47000 µF | -10%, +30% | 16 V | 13mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 13 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41554E5339Q000CAP ALUM 33000UF 25V SCREW CHAS |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 33000 µF | -10%, +30% | 25 V | 15mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 12 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|

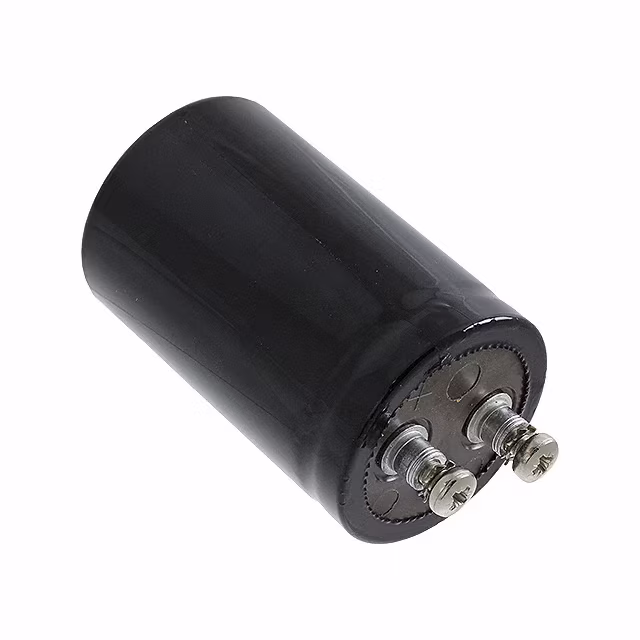

B41554E7229Q000CAP ALUM 22000UF 40V SCREW CHAS |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 22000 µF | -10%, +30% | 40 V | 15mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 12 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41554E8109Q000CAP ALUM 10000UF 63V SCREW CHAS |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 10000 µF | -10%, +30% | 63 V | 18mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 9.6 A @ 100 Hz | - | 14 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41554E9478Q000CAP ALUM 4700UF 100V SCREW CHAS |
0 |
|
Veri Sayfası |
B41554 | Bulk | Obsolete | 4700 µF | -10%, +30% | 100 V | 29mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 7.2 A @ 100 Hz | - | 20 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570E4479Q000CAP ALUM 47000UF 16V SCREW CHAS |
0 |
|
Veri Sayfası |
B41570 | Bulk | Obsolete | 47000 µF | -10%, +30% | 16 V | 13mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 16 A @ 100 Hz | - | 13 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
B41456B7150M003CAP ALUM 150000UF 20% 40V SCREW |
0 |
|
Veri Sayfası |
B41456 | Bulk | Active | 150000 µF | ±20% | 40 V | 5.5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21 A @ 100 Hz | - | 6 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
B41458B8100M003CAP ALUM 100000UF 20% 63V SCREW |
0 |
|
Veri Sayfası |
B41458 | Bulk | Active | 100000 µF | ±20% | 63 V | 4mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25 A @ 100 Hz | - | 6 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
B41550A4220Q000CAP ALUM 220000UF 16V SCREW CHAS |
0 |
|
Veri Sayfası |
B41550 | Bulk | Obsolete | 220000 µF | -10%, +30% | 16 V | 8mOhm @ 100Hz | 20000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 26 A @ 100 Hz | - | 7 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
B41550A5150Q000CAP ALUM 150000UF 25V SCREW CHAS |
0 |
|
Veri Sayfası |
B41550 | Bulk | Obsolete | 150000 µF | -10%, +30% | 25 V | 7mOhm @ 100Hz | 20000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 26 A @ 100 Hz | - | 6 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
B41550A7100Q000CAP ALUM 100000UF 40V SCREW CHAS |
0 |
|
Veri Sayfası |
B41550 | Bulk | Obsolete | 100000 µF | -10%, +30% | 40 V | 7mOhm @ 100Hz | 20000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 26 A @ 100 Hz | - | 6 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
B41550A8479Q000CAP ALUM 47000UF 63V SCREW CHAS |
0 |
|
Veri Sayfası |
B41550 | Bulk | Obsolete | 47000 µF | -10%, +30% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 26 A @ 100 Hz | - | 6 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
B41550A9229Q000CAP ALUM 22000UF 100V SCREW CHAS |
0 |
|
Veri Sayfası |
B41550 | Bulk | Obsolete | 22000 µF | -10%, +30% | 100 V | 11mOhm @ 100Hz | 20000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 19 A @ 100 Hz | - | 9 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount |
