Alüminyum Elektrolitik Kondansörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Paket/Kutular | Seri | Paketlenme | Ürün Durumu | Kapasite | Tolerans | Voltaj - Nominal | ESR (Eşdeğer Seri Direnci) | Yaşam Süresi @ Sıcaklık | Çalışma Sıcaklığı | Polarizasyon | Dereceler | Uygulamalar | Dalgalanma Akımı @ Düşük Frekans | Dalgalanma Akımı @ Yüksek Frekans | Empedans | Bağlantı Aralığı | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) | Yüzey Takılı Toprak Boyutu | Montaj Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

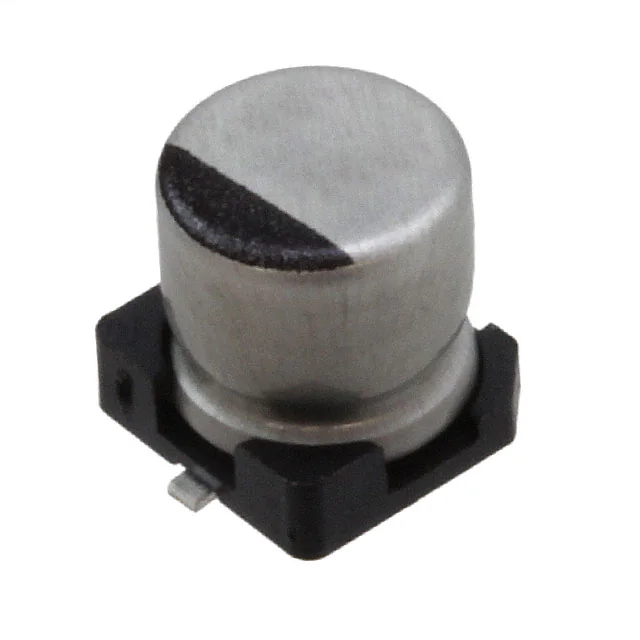

4SEV47M4X5.5CAP ALUM 47UF 20% 4V SMD |
0 |
|
Veri Sayfası |
SEV | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 4 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 34 mA @ 120 Hz | 51 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
50SEV0.47M4X5.5CAP ALUM 0.47UF 20% 50V SMD |
0 |
|
Veri Sayfası |
SEV | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 4 mA @ 120 Hz | 6 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|

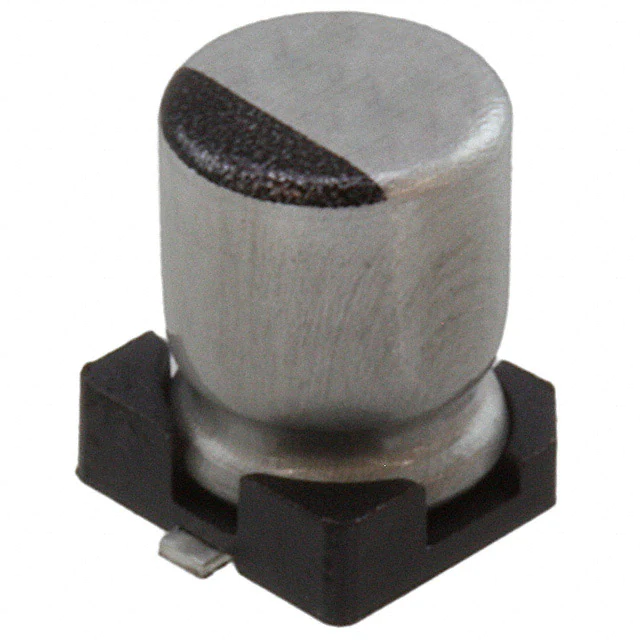

35SKV4.7M4X5.5CAP ALUM 4.7UF 20% 35V SMD |
0 |
|
Veri Sayfası |
SKV | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 14 mA @ 120 Hz | 21 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
50SKV3.3M4X5.5CAP ALUM 3.3UF 20% 50V SMD |
0 |
|
Veri Sayfası |
SKV | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 13 mA @ 120 Hz | 19.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
50SKV0.47M4X5.5CAP ALUM 0.47UF 20% 50V SMD |
0 |
|
Veri Sayfası |
SKV | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 4 mA @ 120 Hz | 6 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
35SZV4.7M4X5.5CAP ALUM 4.7UF 20% 35V SMD |
0 |
|
Veri Sayfası |
SZV | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 25.2 mA @ 120 Hz | 60 mA @ 100 kHz | 3.6 Ohms | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
6.3SZV22M4X5.5CAP ALUM 22UF 20% 6.3V SMD |
0 |
|
Veri Sayfası |
SZV | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 33 mA @ 120 Hz | - | 3 Ohms | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
35SZV2.2M4X5.5CAP ALUM 2.2UF 20% 35V SMD |
0 |
|
Veri Sayfası |
SZV | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 25.2 mA @ 120 Hz | 60 mA @ 100 kHz | 3.7 Ohms | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|

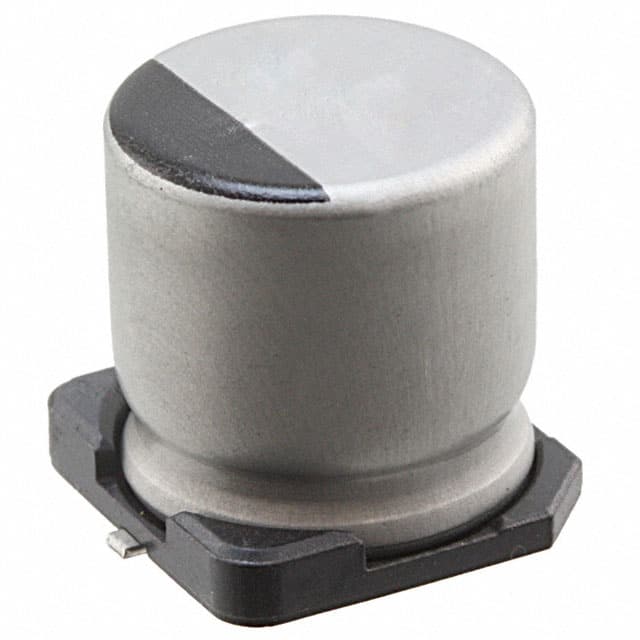

35JGV4.7M4X6.1CAP ALUM 4.7UF 20% 35V SMD |
0 |
|
Veri Sayfası |
JGV | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 15 mA @ 120 Hz | 22.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
50JGV1M4X6.1CAP ALUM 1UF 20% 50V SMD |
0 |
|
Veri Sayfası |
JGV | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 8 mA @ 120 Hz | 12 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
50JGV0.47M4X6.1CAP ALUM 0.47UF 20% 50V SMD |
0 |
|
Veri Sayfası |
JGV | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 4 mA @ 120 Hz | 6 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
50JGV0.33M4X6.1CAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Veri Sayfası |
JGV | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | - | - | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
50SGV3R3M4X6.1CAP ALUM 3.3UF 20% 50V SMD |
0 |
|
Veri Sayfası |
SGV | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 14 mA @ 120 Hz | 21 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
50SGV2R2M4X6.1CAP ALUM 2.2UF 20% 50V SMD |
0 |
|
Veri Sayfası |
SGV | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 11 mA @ 120 Hz | 16.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|

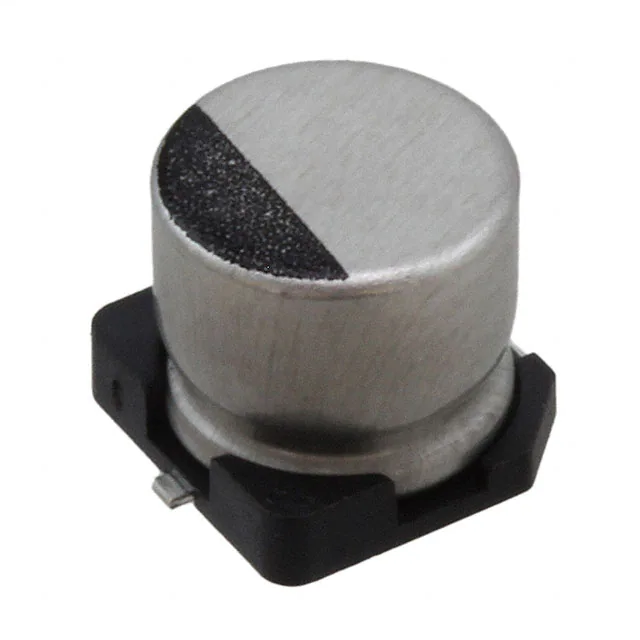

50SJV3.3M4X6.1CAP ALUM 3.3UF 20% 50V SMD |
0 |
|
Veri Sayfası |
SJV | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14 mA @ 120 Hz | 21 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
50SJV1M4X6.1CAP ALUM 1UF 20% 50V SMD |
0 |
|
Veri Sayfası |
SJV | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8 mA @ 120 Hz | 12 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
35SLV4.7M4X6.1CAP ALUM 4.7UF 20% 35V SMD |
0 |
|
Veri Sayfası |
SLV | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 24 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|

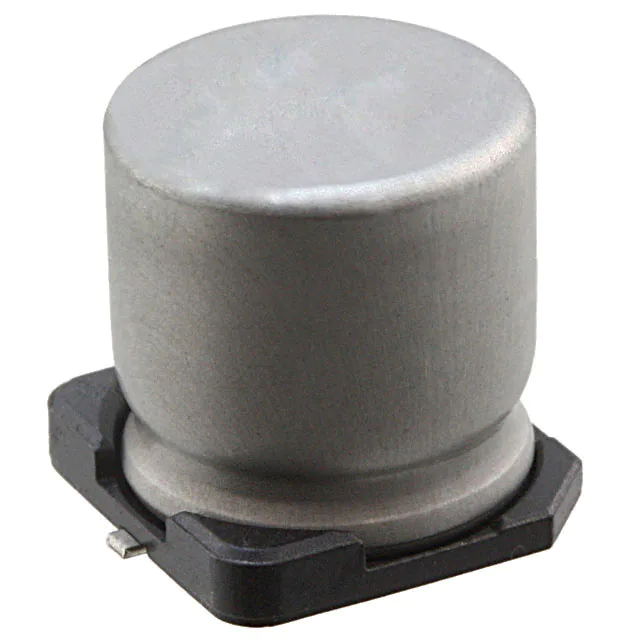

35NSEV4.7M5X5.5CAP ALUM 4.7UF 20% 35V SMD |
0 |
|
Veri Sayfası |
NSEV | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 18 mA @ 120 Hz | 27 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
50NSEV3.3M5X5.5CAP ALUM 3.3UF 20% 50V SMD |
0 |
|
Veri Sayfası |
NSEV | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 17 mA @ 120 Hz | 25.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
50NSEV2.2M5X5.5CAP ALUM 2.2UF 20% 50V SMD |
0 |
|
Veri Sayfası |
NSEV | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 13 mA @ 120 Hz | 19.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
