Alüminyum Elektrolitik Kondansörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Paket/Kutular | Seri | Paketlenme | Ürün Durumu | Kapasite | Tolerans | Voltaj - Nominal | ESR (Eşdeğer Seri Direnci) | Yaşam Süresi @ Sıcaklık | Çalışma Sıcaklığı | Polarizasyon | Dereceler | Uygulamalar | Dalgalanma Akımı @ Düşük Frekans | Dalgalanma Akımı @ Yüksek Frekans | Empedans | Bağlantı Aralığı | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) | Yüzey Takılı Toprak Boyutu | Montaj Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEH200YC3220MU2CAP ALUM 220UF 20% 450V SCREW CH |
156 |
|
Veri Sayfası |
PEH200 | Box | Active | 220 µF | ±20% | 450 V | 240mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | 11.9 A @ 10 kHz | - | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 2.894" (73.50mm) | - | Chassis Mount | |
|
E93E501VND391MB50UCAP ALUM 500V POLAR |
320 |
|
Veri Sayfası |
U93E | Bulk | Active | 390 µF | ±20% | 500 V | 214mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.575 A @ 100 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
|
E91F501VND471MB65UCAP ALUM 470UF 20% 500V SNAP TH |
320 |
|
Veri Sayfası |
U91F | Bulk | Active | 470 µF | ±20% | 500 V | 178mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | - | 2.9 A @ 120 Hz | 4.147 A @ 100 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.657" (67.50mm) | - | Through Hole | |
|
|
E91D401VND122MA80UCAP ALUM 400V POLAR |
498 |
|
- |
U91D | Bulk | Active | 1.2 mF | ±20% | 400 V | 73mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.6 A @ 120 Hz | 6.578 A @ 100 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.248" (82.50mm) | - | Through Hole | |
|
|
E93E501VSN471MA65UCAP ALUM 500V POLAR |
400 |
|
Veri Sayfası |
U93E | Bulk | Active | 470 µF | ±20% | 500 V | 169mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 4.004 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.657" (67.50mm) | - | Through Hole | |
|

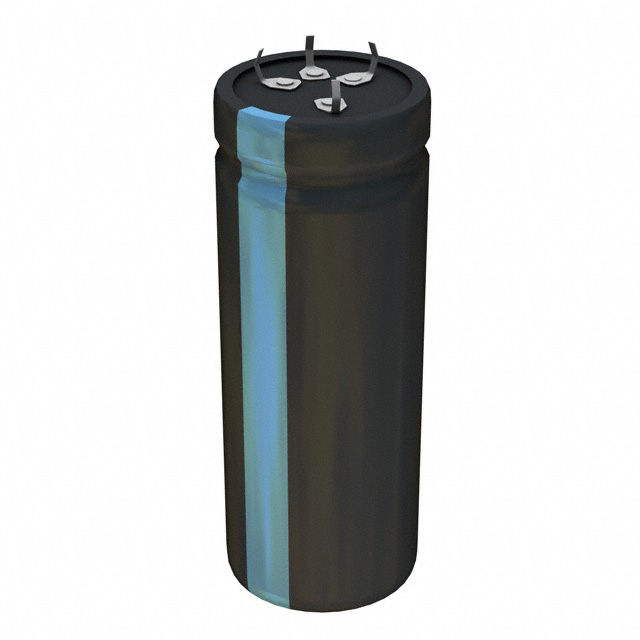

382LX273M080N102CAP ALUM 27000UF 20% 80V SNAP TH |
172 |
|
Veri Sayfası |
382LX | Bulk | Active | 27000 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.35 A @ 120 Hz | 13.05 A @ 20 kHz | - | - | 1.575" Dia (40.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
|
E91F501VSN391MA65UCAP ALUM 500V POLAR |
398 |
|
Veri Sayfası |
U91F | Bulk | Active | 390 µF | ±20% | 500 V | 204mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.718 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.657" (67.50mm) | - | Through Hole | |
|
MAL210616682E3CAP ALUM 6800UF 25V SCREW CHAS M |
288 |
|
Veri Sayfası |
106 PED-ST | Bulk | Active | 6800 µF | -10%, +30% | 25 V | 55mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.3 A @ 100 Hz | - | 42 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 2.744" (69.70mm) | - | Chassis Mount | |
|
|
E91D401VND122MB65UCAP ALUM 400V POLAR |
316 |
|
- |
U91D | Bulk | Active | 1.2 mF | ±20% | 400 V | 76mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.5 A @ 120 Hz | 6.435 A @ 100 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.657" (67.50mm) | - | Through Hole | |
|
|
E91F451VND821MB80UCAP ALUM 820UF 20% 450V SNAP TH |
121 |
|
Veri Sayfası |
U91F | Bulk | Active | 820 µF | ±20% | 450 V | 102mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | - | 4.1 A @ 120 Hz | 5.863 A @ 100 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.248" (82.50mm) | - | Through Hole | |
|
|
MAL210618332E3CAP ALUM 3300UF 63V SCREW CHAS M |
294 |
|
Veri Sayfası |
106 PED-ST | Bulk | Active | 3300 µF | -10%, +30% | 63 V | 40mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 100 Hz | - | 27 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 2.744" (69.70mm) | - | Chassis Mount | |
|
|
E93E401VND102MB65UCAP ALUM 400V POLAR |
320 |
|
Veri Sayfası |
U93E | Bulk | Active | 1 mF | ±20% | 400 V | 92mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 5.863 A @ 100 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.657" (67.50mm) | - | Through Hole | |
|
|
E91F401VNT102MU65UCAP ALUM 1000UF 20% 400V SNAP TH |
245 |
|
Veri Sayfası |
U91F | Bulk | Active | 1000 µF | ±20% | 400 V | 100mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | - | 4.1 A @ 120 Hz | 5.863 A @ 100 kHz | - | 0.984" (25.00mm) | 1.772" Dia (45.00mm) | 2.657" (67.50mm) | - | Through Hole | |
|
|
E91D451VND102MA80UCAP ALUM 450V POLAR |
484 |
|
- |
U91D | Bulk | Active | 1 mF | ±20% | 450 V | 84mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.3 A @ 120 Hz | 6.149 A @ 100 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.248" (82.50mm) | - | Through Hole | |
|
|
E93E451VND102MA80UCAP ALUM 450V POLAR |
492 |
|
Veri Sayfası |
U93E | Bulk | Active | 1 mF | ±20% | 450 V | 84mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.3 A @ 120 Hz | 6.149 A @ 100 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.248" (82.50mm) | - | Through Hole | |
|
|
E91F501VNT561MC50UCAP ALUM 560UF 20% 500V SNAP TH |
245 |
|
Veri Sayfası |
U91F | Bulk | Active | 560 µF | ±20% | 500 V | 164mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | - | 3.1 A @ 120 Hz | 4.433 A @ 100 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
CGS591T200R3CCAP ALUM 590UF 200V SCREW CHAS M |
148 |
|
Veri Sayfası |
CGS | Bulk | Active | 590 µF | -10%, +50% | 200 V | 151mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.9 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
|
E91D501VND821MAA0UCAP ALUM 500V POLAR |
500 |
|
- |
U91D | Bulk | Active | 820 µF | ±20% | 500 V | 97mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 6.292 A @ 100 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 4.035" (102.50mm) | - | Through Hole | |
|
|
E91D451VND102MB65UCAP ALUM 450V POLAR |
316 |
|
- |
U91D | Bulk | Active | 1 mF | ±20% | 450 V | 92mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 5.863 A @ 100 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.657" (67.50mm) | - | Through Hole | |
|
|
E91F501VNT391MU50UCAP ALUM 390UF 20% 500V SNAP TH |
320 |
|
Veri Sayfası |
U91F | Bulk | Active | 390 µF | ±20% | 500 V | 225mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | - | 2.5 A @ 120 Hz | 3.575 A @ 100 kHz | - | 0.984" (25.00mm) | 1.772" Dia (45.00mm) | 2.067" (52.50mm) | - | Through Hole |
