Alüminyum Elektrolitik Kondansörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Paket/Kutular | Seri | Paketlenme | Ürün Durumu | Kapasite | Tolerans | Voltaj - Nominal | ESR (Eşdeğer Seri Direnci) | Yaşam Süresi @ Sıcaklık | Çalışma Sıcaklığı | Polarizasyon | Dereceler | Uygulamalar | Dalgalanma Akımı @ Düşük Frekans | Dalgalanma Akımı @ Yüksek Frekans | Empedans | Bağlantı Aralığı | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) | Yüzey Takılı Toprak Boyutu | Montaj Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UWG1A221MNL1GSCAP ALUM 220UF 20% 10V SMD |
990 |
|
Veri Sayfası |
UWG | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 225 mA @ 120 Hz | 450 mA @ 100 kHz | 300 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
860040275011CAP ALUM 1500UF 20% 10V RADIAL |
960 |
|
Veri Sayfası |
WCAP-ATUL | Cut Tape (CT) | Active | 1500 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.271 A @ 120 Hz | 1.55 A @ 100 kHz | 43 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EEE-FK1A331AVCAP ALUM 330UF 20% 10V SMD |
490 |
|
Veri Sayfası |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-FC1C681PCAP ALUM 680UF 20% 16V SMD |
397 |
|
Veri Sayfası |
FC | Tape & Reel (TR) | Not For New Designs | 680 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-FK1E151AVCAP ALUM 150UF 20% 25V SMD |
235 |
|
Veri Sayfası |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 150 µF | ±20% | 25 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UVP1C471MPD1TDCAP ALUM 470UF 20% 16V RADIAL TH |
97 |
|
Veri Sayfası |
UVP | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 485 mA @ 120 Hz | 727.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UWH1E470MCL1GSCAP ALUM 47UF 20% 25V SMD |
69 |
|
Veri Sayfası |
UWH | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 48 mA @ 120 Hz | 72 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

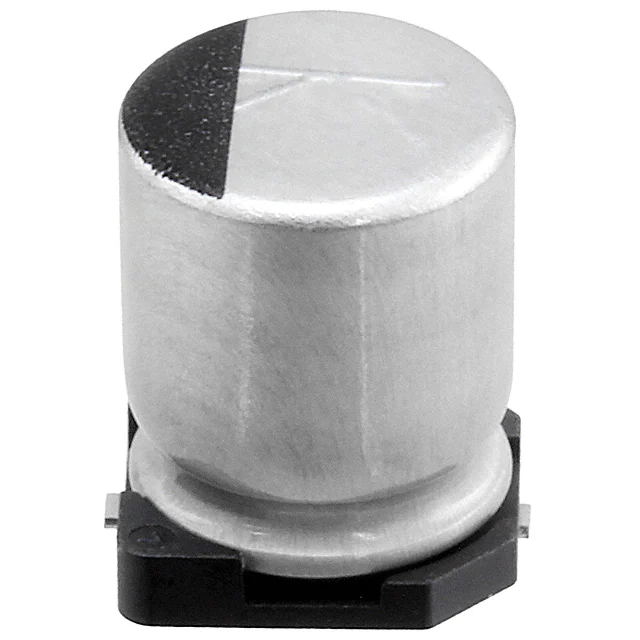

25TLV330M8X10.5CAP ALUM 330UF 20% 25V SMD |
50 |
|
Veri Sayfası |
TLV | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EGXE101ELL330MJC5SCAP ALUM 33UF 20% 100V RADIAL TH |
30 |
|
Veri Sayfası |
GXE | Bulk | Active | 33 µF | ±20% | 100 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 192 mA @ 120 Hz | 480 mA @ 100 kHz | 800 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
UCJ1C101MCL1GSCAP ALUM 100UF 20% 16V SMD |
1,000 |
|
Veri Sayfası |
UCJ | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | 2Ohm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 125 mA @ 120 Hz | 250 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPM1A122MHD6TOCAP ALUM 1200UF 20% 10V RADIAL |
907 |
|
Veri Sayfası |
UPM | Cut Tape (CT) | Not For New Designs | 1200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 930 mA @ 120 Hz | 1.06 A @ 10 kHz | 60 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.669" (17.00mm) | - | Through Hole | |
|
UFW1V331MPD1TDCAP ALUM 330UF 20% 35V RADIAL TH |
704 |
|
Veri Sayfası |
UFW | Cut Tape (CT) | Not For New Designs | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 470 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UPJ1H391MHDCAP ALUM 390UF 20% 50V RADIAL TH |
688 |
|
Veri Sayfası |
UPJ | Bulk | Not For New Designs | 390 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.44 A @ 10 kHz | 53 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EEU-HD1E101CAP ALUM 100UF 20% 25V RADIAL TH |
655 |
|
Veri Sayfası |
HD | Bulk | Active | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 195 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.500" (12.70mm) | - | Through Hole | |
|
25TXV100M8X10.5CAP ALUM 100UF 20% 25V SMD |
435 |
|
Veri Sayfası |
TXV | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | 160mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 150 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
50SGV100M10X10.5CAP ALUM 100UF 20% 50V SMD |
181 |
|
Veri Sayfası |
SGV | Tape & Reel (TR) | Active | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 315 mA @ 120 Hz | 378 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UCJ1H330MCL1GSCAP ALUM 33UF 20% 50V SMD |
1,051 |
|
Veri Sayfası |
UCJ | Tape & Reel (TR) | Active | 33 µF | ±20% | 50 V | 2Ohm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 100 mA @ 120 Hz | 200 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
860040875004CAP ALUM 82UF 20% 100V RADIAL TH |
942 |
|
Veri Sayfası |
WCAP-ATUL | Cut Tape (CT) | Active | 82 µF | ±20% | 100 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 402 mA @ 120 Hz | 600 mA @ 100 kHz | 210 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPJ2A470MHD6TOCAP ALUM 47UF 20% 100V RADIAL TH |
927 |
|
Veri Sayfası |
UPJ | Cut Tape (CT) | Not For New Designs | 47 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 239 mA @ 120 Hz | 402 mA @ 10 kHz | 310 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole | |
|
10YXS2200MEFC10X23CAP ALUM 2200UF 20% 10V RADIAL |
884 |
|
Veri Sayfası |
YXS | Bulk | Active | 2200 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.337 A @ 120 Hz | 1.91 A @ 100 kHz | 31 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.984" (25.00mm) | - | Through Hole |
