Kablolu ve Kordon Kavrayıcıları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Paket/Kutular | Tür | Dış Kablolu Çapı (Minimum) | Dış Kablolu Çapı (Maksimum) | İplik Boyutu | İplik Uzunluğu | Kanal Hub Boyutu | Panel Delik Boyutu | Malzeme | Dahil Edilenler | Renk | Giriş Koruma | Çalışma Sıcaklığı |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1300980175CABLE GRP RA 19.05-22.23MM 1 1/4 |
0 |
|
Veri Sayfası |
Cable Grip - 90° | 0.750" (19.05mm) | 0.875" (22.23mm) | 1 1/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
1706950000CABLE GLAND 14-16.5MM M25 BRASS |
0 |
|
Veri Sayfası |
Cable Gland | 0.551" (14.00mm) | 0.650" (16.50mm) | M25x1.5 | 0.433" (11.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 135°C | |
|
|
09370005101CABLE GLAND PG11 METAL |
0 |
|
Veri Sayfası |
Cable Gland | - | - | PG11 | - | - | - | Metal | - | Silver | - | - | |
|

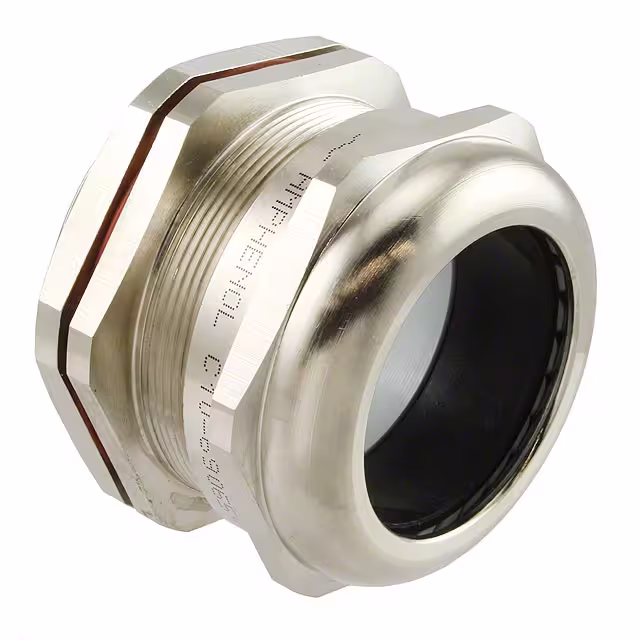

AIO-CSJM63CABLE GLAND 37-44MM M63 BRASS |
0 |
|
Veri Sayfası |
Cable Gland | 1.457" (37.00mm) | 1.732" (44.00mm) | M63x1.5 | 0.472" (12.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
95556.6CABLE GLAND 11.43-15.5MM M32 |
0 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20780.5CABLE GLAND 23.88-27.94MM PG36 |
0 |
|
- |
Cable Gland | 0.940" (23.88mm) | 1.100" (27.94mm) | PG36 | 0.350" (8.89mm) | - | 1.850" (47.0mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20781.5CABLE GLAND 27.94-32MM PG36 PVDF |
0 |
|
- |
Cable Gland | 1.100" (27.94mm) | 1.260" (32.00mm) | PG36 | 0.350" (8.89mm) | - | 1.850" (47.0mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
95066.7CABLE GLND 6.6-9.4MM M20 S STEEL |
0 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | M20x1.5 | 0.240" (6.10mm) | - | 0.790" (20.1mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
95067.7CABLE GLAND 7.11-10.41MM M20 |
0 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | M20x1.5 | 0.240" (6.10mm) | - | 0.790" (20.1mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
95068.7CABLE GLAND 8.89-12.95MM M20 |
0 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | M20x1.5 | 0.240" (6.10mm) | - | 0.790" (20.1mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
1300970264CABLE GRP 13.21-18.54MM 3/4" NPT |
0 |
|
Veri Sayfası |
Cable Grip | 0.520" (13.21mm) | 0.730" (18.54mm) | 3/4" NPT | 0.670" (17.02mm) | - | - | Aluminum | Locknut, Strain Relief | Silver | - | - | |
|
|
98609.6CABLE FEEDTHROUGH 16-27.94MM M36 |
0 |
|
- |
Cable Feedthrough | 0.630" (16.00mm) | 1.100" (27.94mm) | M36x2 | 0.510" (12.95mm) | - | 1.420" (36.1mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - | |
|
|
26007.6M63X1.5 STRAIGHT THROUGH |
0 |
|
- |
- | - | - | M63x1.5 | - | - | - | - | - | - | - | - | |
|
|
26008.6M63X1.5 STRAIGHT THROUGH |
0 |
|
- |
- | - | - | M63x1.5 | - | - | - | - | - | - | - | - | |
|
|
19093.6CABLE GLAND PG29 |
0 |
|
- |
Cable Gland | - | - | PG29 | - | - | - | - | - | - | - | - | |
|
|
19094.6CABLE GLAND PG29 |
0 |
|
- |
Cable Gland | - | - | PG29 | - | - | - | - | - | - | - | - | |
|
|
95559.6CABLE GLAND M40 |
0 |
|
- |
Cable Gland | - | - | M40x1.5 | - | - | - | - | - | Silver | - | - | |
|
|
95560.6CABLE GLAND M40 BRASS |
0 |
|
- |
Cable Gland | - | - | M40x1.5 | - | - | - | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 300°C | |
|
|
1411179CABLE GLAND 30-38MM PG42 BRASS |
0 |
|
Veri Sayfası |
Cable Gland | 1.181" (30.00mm) | 1.496" (38.00mm) | PG42 | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
|
53112055CABLE GLAND 19-28.02MM M40 BRASS |
0 |
|
Veri Sayfası |
Cable Gland | 0.748" (19.00mm) | 1.103" (28.02mm) | M40x1.5 | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C |
