DIP Anahtarları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Devre | Pozisyon Sayısı | Akım Derecesi (Amper) | Voltaj Derecesi | Aktüatör Türü | Aktüatör Seviyesi | Kontak Malzemesi | Kontak Bitişi | Kart Üzerinden Yükseklik | Montaj Türü | Sonlandırma Stili | Adım | Yıkamalı | Özellikler | Çalışma Sıcaklığı |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KT05RHSWITCH SLIDE DIP SPST 0.025A 24V |
419 |
|
Veri Sayfası |
KT | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KT06RHSWITCH SLIDE DIP SPST 0.025A 24V |
399 |
|
Veri Sayfası |
KT | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KT06EHSWITCH SLIDE DIP SPST 0.025A 24V |
141 |
|
Veri Sayfası |
KT | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0201MBSWITCH SLIDE DIP SPST 0.1A 6V |
39 |
|
Veri Sayfası |
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KP08RSWITCH PIANO DIP SPST 0.025A 24V |
405 |
|
Veri Sayfası |
KP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ07RTTSWITCH SLIDE DIP SPST 0.025A 24V |
377 |
|
Veri Sayfası |
KJ | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

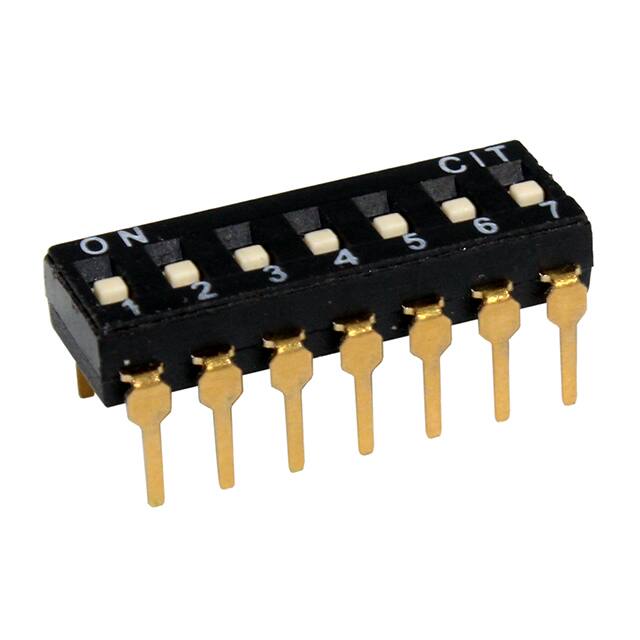

KT07RHSWITCH SLIDE DIP SPST 0.025A 24V |
391 |
|
Veri Sayfası |
KT | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

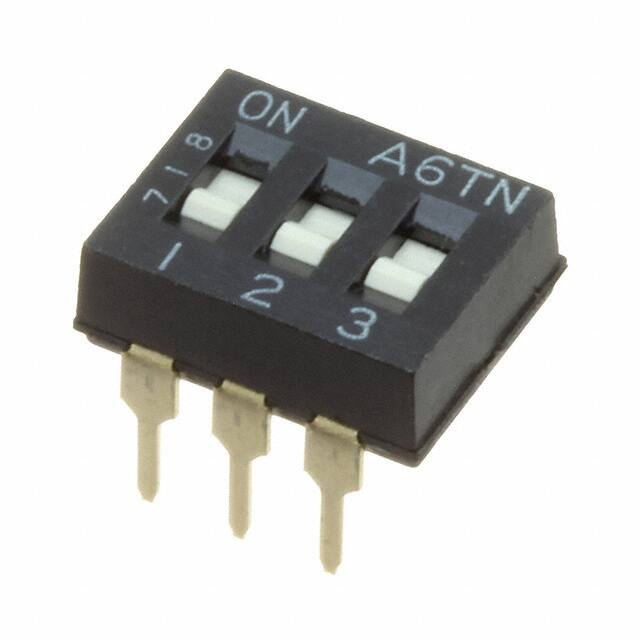

A6TN-3101SWITCH SLIDE DIP SPST 0.025A 24V |
60 |
|
Veri Sayfası |
A6TN | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
A6SR-2101SWITCH PIANO DIP SPST 0.025A 24V |
43 |
|
Veri Sayfası |
A6SR | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
DS02C-254-1L-07BESWITCH PIANO DIP SPST 0.025A 24V |
84 |
|
Veri Sayfası |
DS02-254 | Tube | Active | SPST | 7 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6T-6101SWITCH SLIDE DIP SPST 0.025A 24V |
27 |
|
Veri Sayfası |
A6T | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6FR-7101SWITCH PIANO DIP SPST 0.025A 24V |
71 |
|
Veri Sayfası |
A6FR | Tube | Active | SPST | 7 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6TR-2101SWITCH PIANO DIP SPST 0.025A 24V |
95 |
|
Veri Sayfası |
A6TR | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
DS03-254-07BESWITCH SLIDE DIP SPST 0.025A 24V |
39 |
|
Veri Sayfası |
DS03-254 | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6FR-9101SWITCH PIANO DIP SPST 0.025A 24V |
93 |
|
Veri Sayfası |
A6FR | Tube | Active | SPST | 9 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
RD07A10RTTSWITCH ROTARY DIP BCD 0.1A 50V |
30 |
|
Veri Sayfası |
RD07 | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

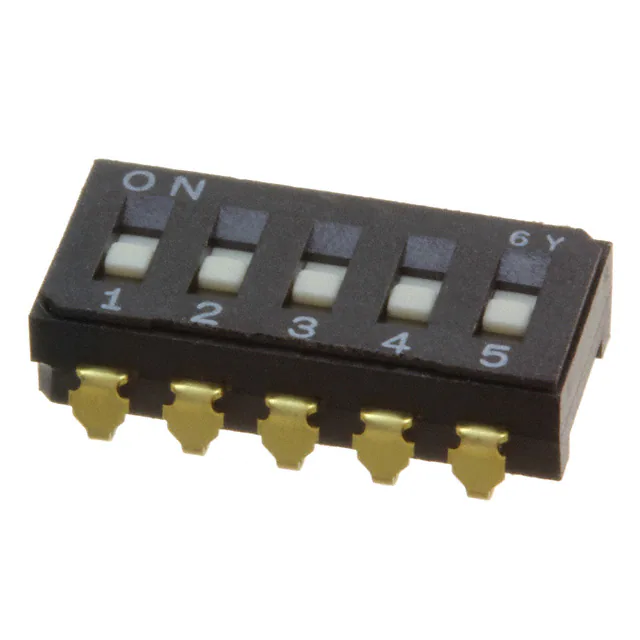

CFS-0501MASWITCH SLIDE DIP SPST 0.1A 6V |
80 |
|
Veri Sayfası |
CFS | Tube | Active | SPST | 5 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418127160910SWITCH SLIDE DIP SPST 0.025A 24V |
38 |
|
Veri Sayfası |
WS-DITV | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
418127160906SWITCH SLIDE DIP SPST 0.025A 24V |
26 |
|
Veri Sayfası |
WS-DITV | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6TN-7101SWITCH SLIDE DIP SPST 0.025A 24V |
32 |
|
Veri Sayfası |
A6TN | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
