DIP Anahtarları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Devre | Pozisyon Sayısı | Akım Derecesi (Amper) | Voltaj Derecesi | Aktüatör Türü | Aktüatör Seviyesi | Kontak Malzemesi | Kontak Bitişi | Kart Üzerinden Yükseklik | Montaj Türü | Sonlandırma Stili | Adım | Yıkamalı | Özellikler | Çalışma Sıcaklığı |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

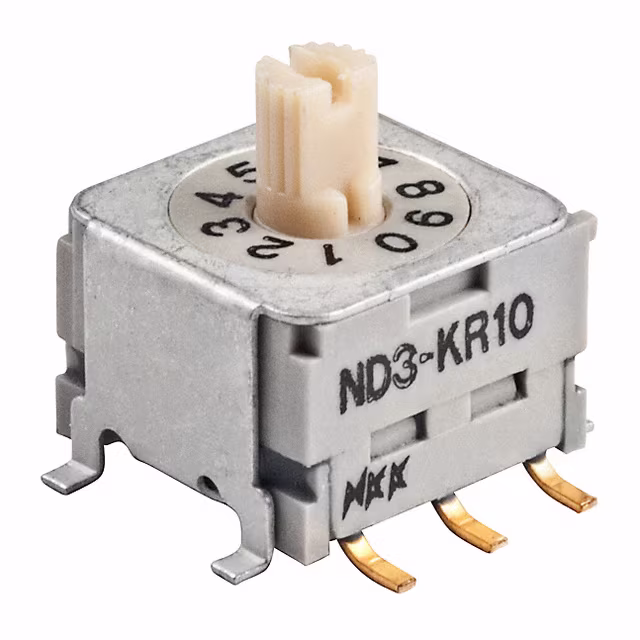

ND3KR10BSWITCH ROTARY DIP BCD 0.1A 5V |
99 |
|
Veri Sayfası |
ND3 | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.346" (8.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
ND3FC16HSW ROTARY DIP HEX COMP 0.1A 5V |
65 |
|
Veri Sayfası |
ND3 | Box | Obsolete | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|

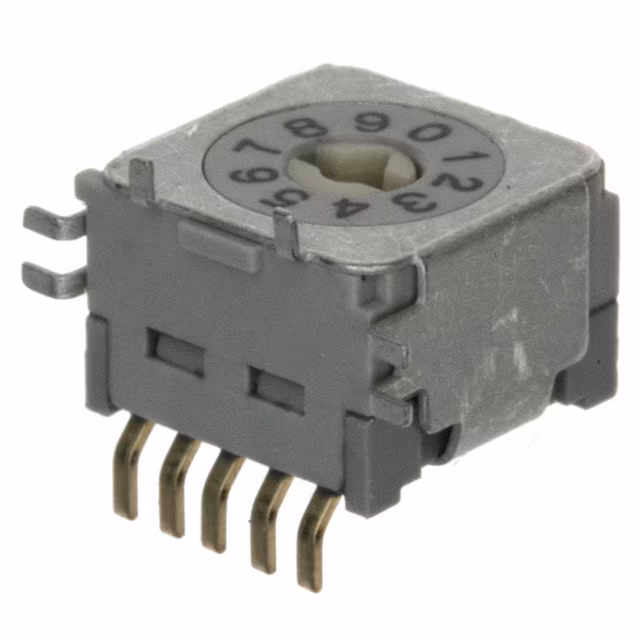

ND3FR10H-RSWITCH ROTARY DIP BCD 0.1A 5V |
55 |
|
Veri Sayfası |
ND3 | Tape & Reel (TR) | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
ND3KR16HSWITCH ROTARY DIP HEX 0.1A 5V |
73 |
|
Veri Sayfası |
ND3 | Bulk | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|

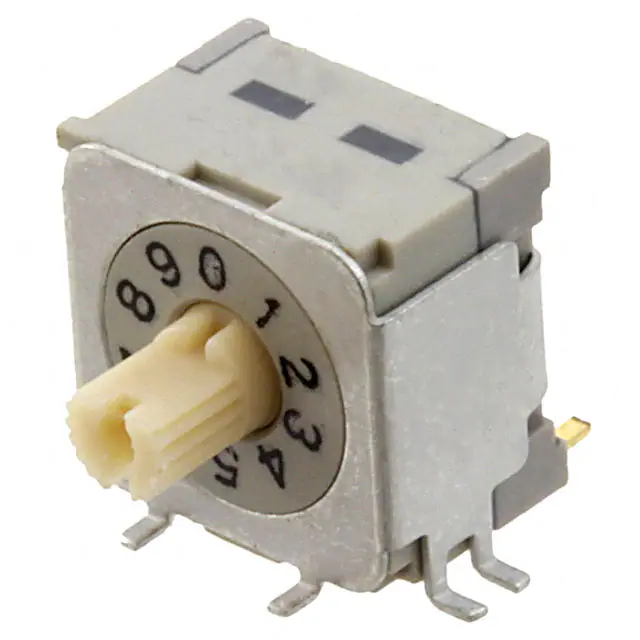

ND3KR10HSWITCH ROTARY DIP BCD 0.1A 5V |
33 |
|
Veri Sayfası |
ND3 | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
FR01AC10HB-SSWITCH ROTARY DIP BCD COMP |
0 |
|
Veri Sayfası |
FR01 | Tube | Active | BCD Complement | 10 | - | - | Rotary with Shaft | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
|
79B10TSWITCH SLIDE DIP BCD 0.125A 6V |
0 |
|
Veri Sayfası |
79B | Tube | Active | BCD | 10 | 125mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.250" (6.35mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
79B10STSWITCH SLIDE DIP BCD 0.125A 6V |
0 |
|
Veri Sayfası |
79B | Tube | Active | BCD | 10 | 125mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.250" (6.35mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
SA-5051A3ESWITCH ROTARY DIP HEX 0.1A 5V |
7 |
|
- |
SA-5000 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.433" (11.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|

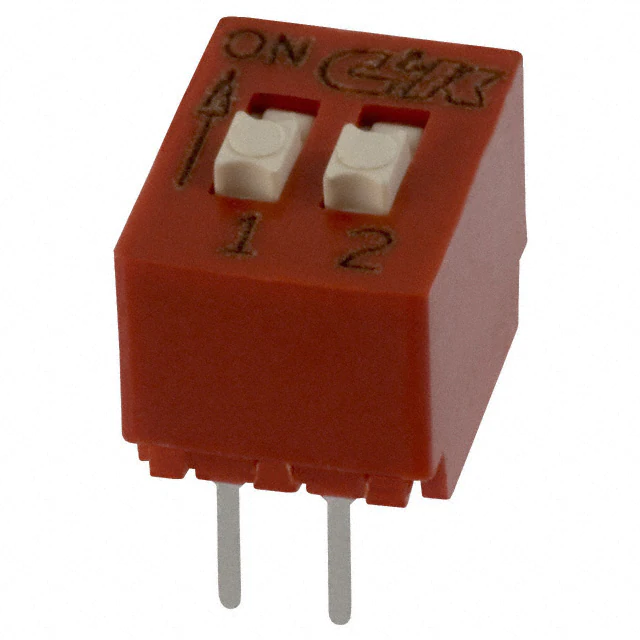

BD02SWITCH DIP TOP SLIDE 2POS |
850 |
|
Veri Sayfası |
BD | Bulk | Active | SPST | 2 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
A6TN0003ESWITCH SLIDE DIP SPST 0.025A 24V |
175 |
|
Veri Sayfası |
A6T | Box | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
A6SN0011BSWITCH SLIDE DIP SPST 0.025A 24V |
56 |
|
Veri Sayfası |
A6S-H | Box | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.215" (5.46mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
A6TN0019ASWITCH SLIDE DIP SPST 0.025A 24V |
67 |
|
Veri Sayfası |
A6T | Box | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
A6SR0017MSWITCH PIANO DIP 0.025A 24V |
47 |
|
Veri Sayfası |
A6S-H | Box | Active | - | - | 25mA | 24VDC | Piano | - | - | - | - | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
KF1003-04P-R0-DFT-02BDIP SW, RA, 4POS, EXTRNDED |
100 |
|
Veri Sayfası |
- | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6SN0009MSWITCH SLIDE DIP SPST 0.025A 24V |
56 |
|
Veri Sayfası |
A6S-H | Box | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
A6SN0010DSWITCH SLIDE DIP SPST 0.025A 24V |
37 |
|
Veri Sayfası |
A6S-H | Box | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
A6D 0146FSWITCH SLIDE DIP 0.03A 30V |
52 |
|
Veri Sayfası |
A6D | Box | Active | - | - | 30mA | 30VDC | Slide (Standard) | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
KF1002-08P-R0-GLG-DFT-02BDIP SW, PIANO TYPE, 8POS, LONG A |
100 |
|
Veri Sayfası |
- | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6K 0035GSWITCH DIP 0.025A 24V |
60 |
|
Veri Sayfası |
A6K | Box | Active | - | - | 25mA | 24VDC | - | - | - | - | - | - | - | - | No | - | -30°C ~ 80°C |
