DIP Anahtarları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Devre | Pozisyon Sayısı | Akım Derecesi (Amper) | Voltaj Derecesi | Aktüatör Türü | Aktüatör Seviyesi | Kontak Malzemesi | Kontak Bitişi | Kart Üzerinden Yükseklik | Montaj Türü | Sonlandırma Stili | Adım | Yıkamalı | Özellikler | Çalışma Sıcaklığı |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

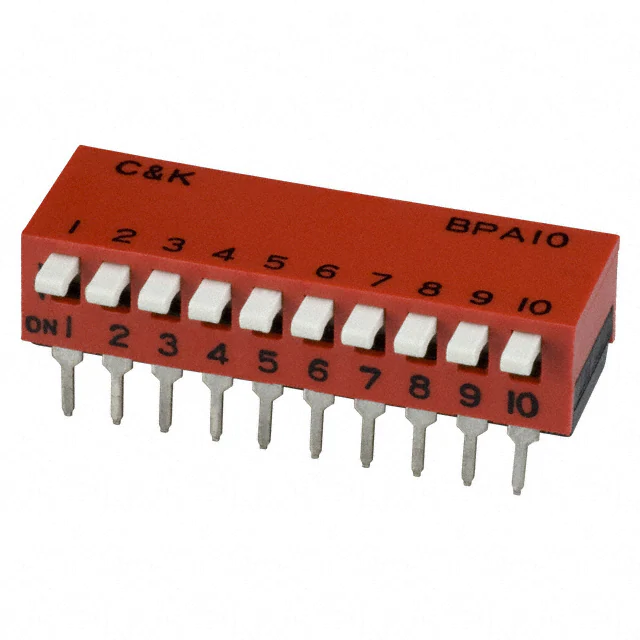

BPA10KSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Veri Sayfası |
BPA | Bag | Obsolete | SPST | 10 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

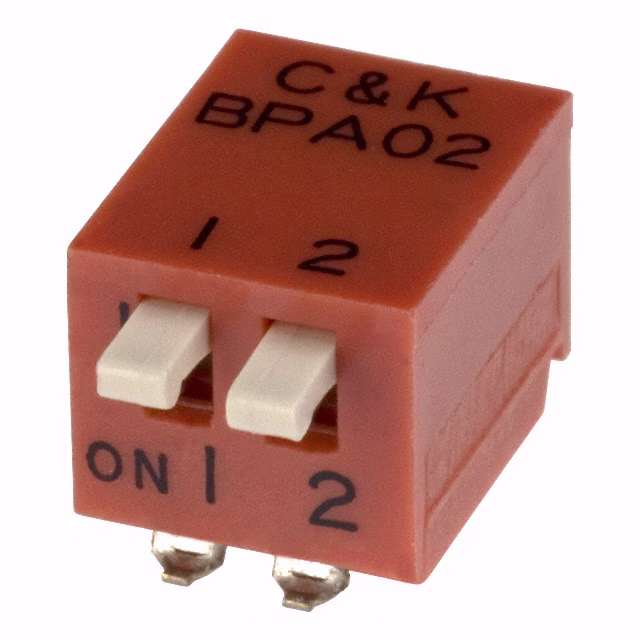

BPA02SKSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Veri Sayfası |
BPA | Bag | Obsolete | SPST | 2 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

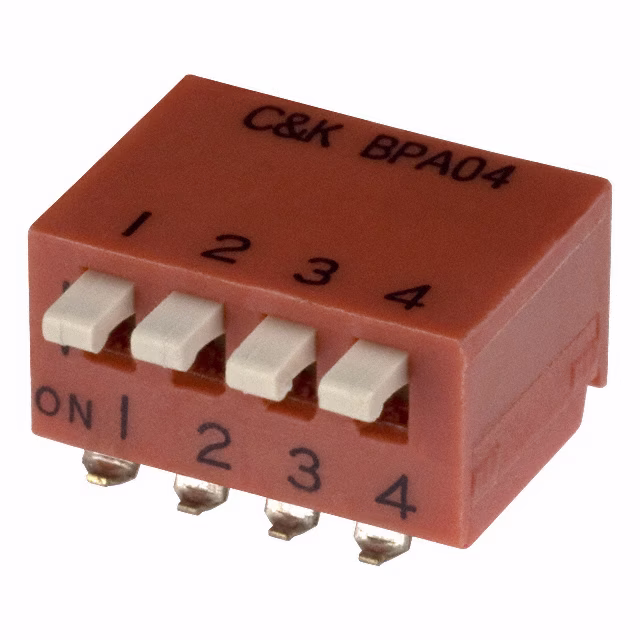

BPA04SKSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Veri Sayfası |
BPA | Bag | Obsolete | SPST | 4 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

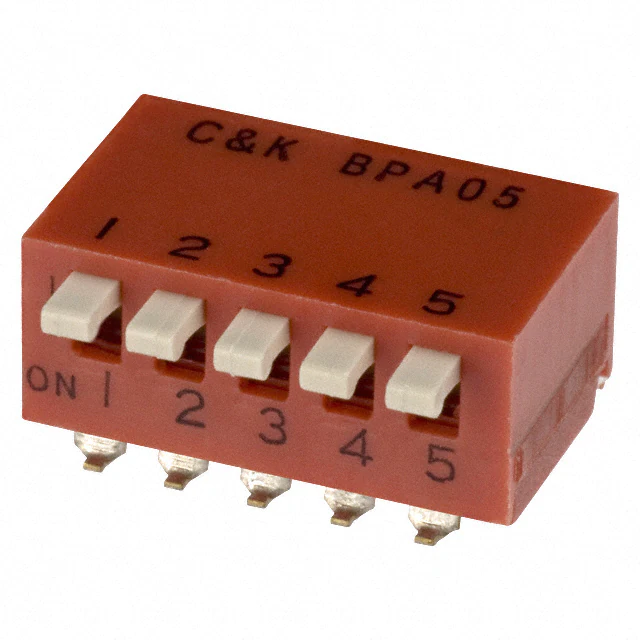

BPA05SKSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Veri Sayfası |
BPA | Bag | Obsolete | SPST | 5 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

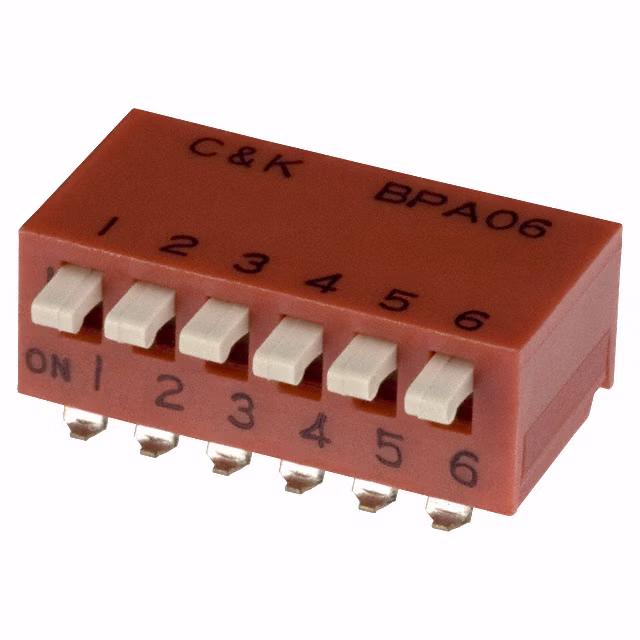

BPA06SKSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Veri Sayfası |
BPA | Bag | Obsolete | SPST | 6 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

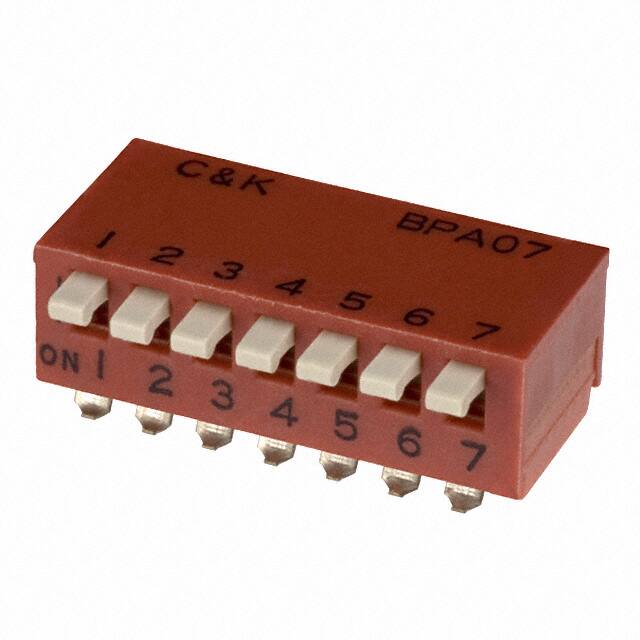

BPA07SKSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Veri Sayfası |
BPA | Bag | Obsolete | SPST | 7 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

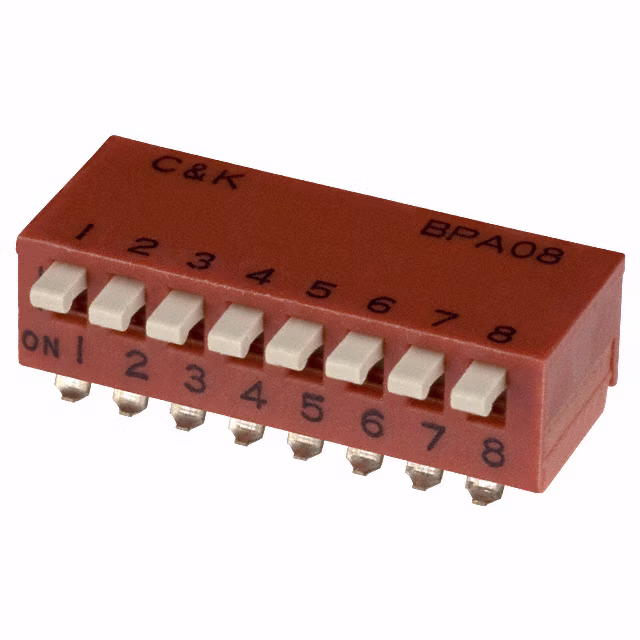

BPA08SKSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Veri Sayfası |
BPA | Bag | Obsolete | SPST | 8 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

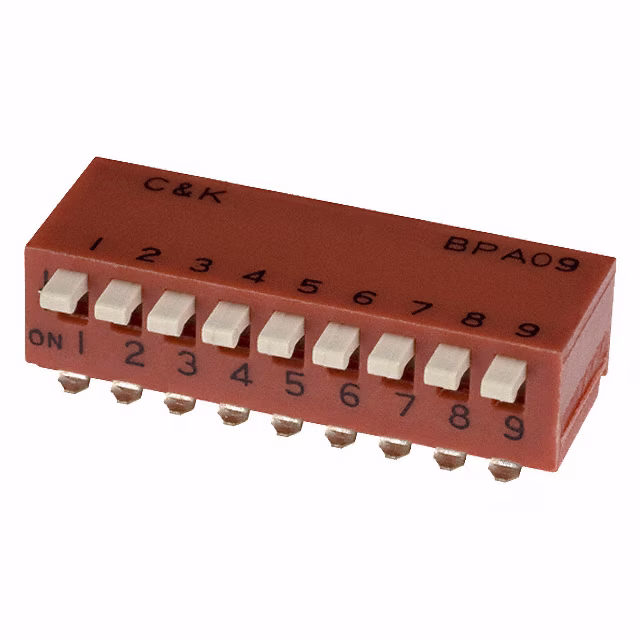

BPA09SKSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Veri Sayfası |
BPA | Bag | Obsolete | SPST | 9 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

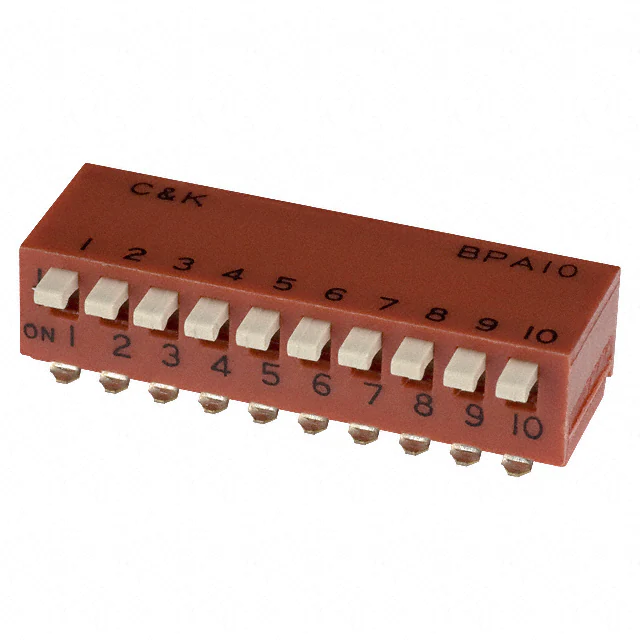

BPA10SKSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Veri Sayfası |
BPA | Bag | Obsolete | SPST | 10 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP02SWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Veri Sayfası |
SP | Bag | Obsolete | SPST | 2 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP04SWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Veri Sayfası |
SP | Bag | Obsolete | SPST | 4 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP06SWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Veri Sayfası |
SP | Bag | Obsolete | SPST | 6 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP08SWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Veri Sayfası |
SP | Bag | Obsolete | SPST | 8 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP10SWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Veri Sayfası |
SP | Bag | Obsolete | SPST | 10 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP02ASWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Veri Sayfası |
SP | Bag | Obsolete | SPST | 2 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP04ASWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Veri Sayfası |
SP | Bag | Obsolete | SPST | 4 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP06ASWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Veri Sayfası |
SP | Bag | Obsolete | SPST | 6 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP08ASWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Veri Sayfası |
SP | Bag | Obsolete | SPST | 8 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP10ASWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Veri Sayfası |
SP | Bag | Obsolete | SPST | 10 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

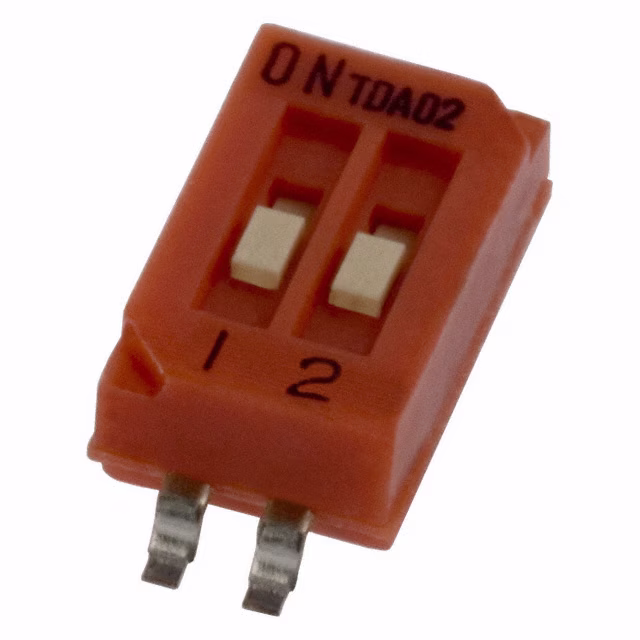

TDA02H0SK1SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Veri Sayfası |
TDA | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 85°C |
