DIP Anahtarları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Devre | Pozisyon Sayısı | Akım Derecesi (Amper) | Voltaj Derecesi | Aktüatör Türü | Aktüatör Seviyesi | Kontak Malzemesi | Kontak Bitişi | Kart Üzerinden Yükseklik | Montaj Türü | Sonlandırma Stili | Adım | Yıkamalı | Özellikler | Çalışma Sıcaklığı |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS08SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DS | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS07SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DS | Tube | Obsolete | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|

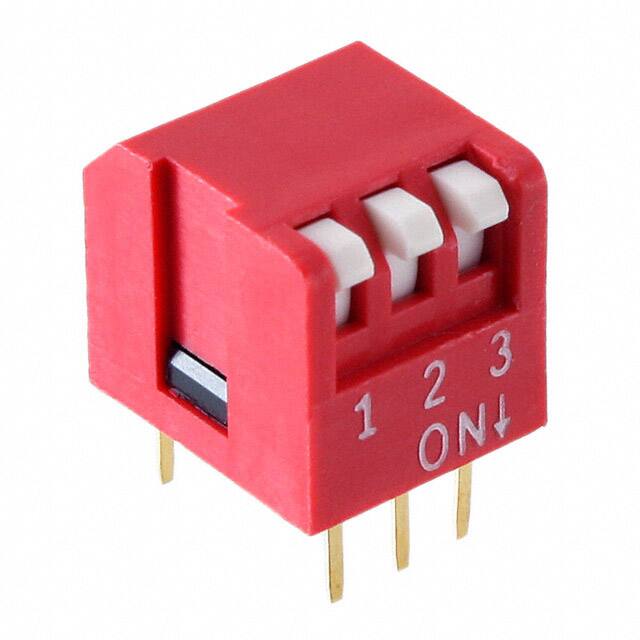

DP03SWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DP | Tube | Obsolete | SPST | 3 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS08TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DS | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DSR02TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DSR | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.222" (5.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DSR08TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DSR | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.222" (5.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DSR06TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DSR | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.222" (5.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DSR05TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DSR | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.222" (5.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DSR04TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DSR | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.222" (5.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS12SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DS | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS12TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DS | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS10TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DS | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS10SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DS | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS09TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DS | Tube | Obsolete | SPST | 9 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS09SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DS | Tube | Obsolete | SPST | 9 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP04SWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DP | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP02SWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DP | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP02TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DP | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA05SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Veri Sayfası |
DA | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|

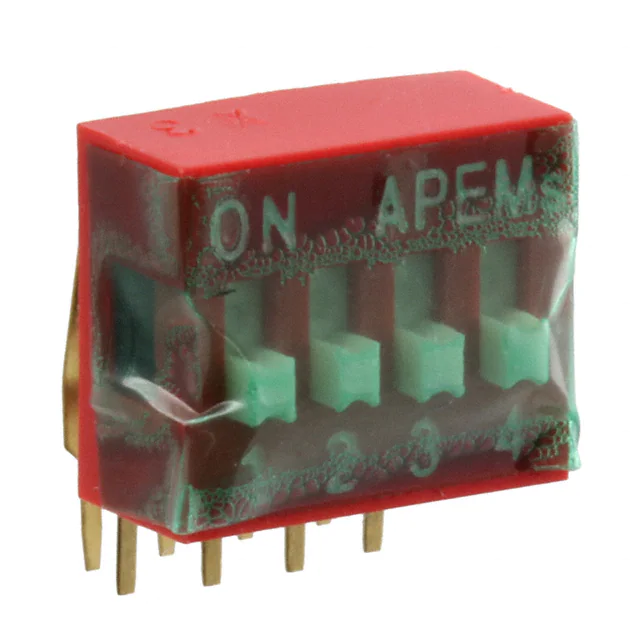

DA04TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
- |
DA | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
