AC Fanlar
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19026166AFAN AXIAL 179X63MM 230VAC FF213 |
0 |
|
Veri Sayfası |
Feather | - | Obsolete | 230VAC | Round - 179mm Dia | 63.00mm | 245.0 CFM (6.86m³/min) | - | Ball | Tubeaxial | - | - | 20.00W | 3200 RPM | 2 Terminals | - | - | - | 1.5 lbs (680.4 g) |
|

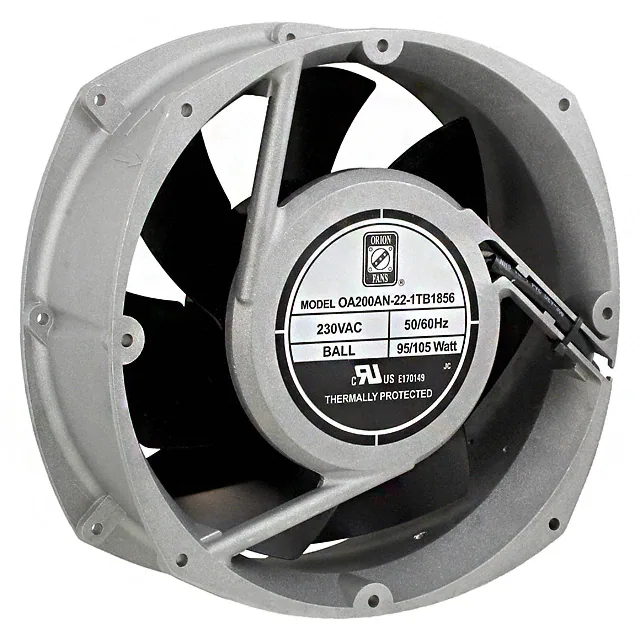

OA200AN-22-1TB1856FAN AXIAL 200X70MM 230VAC TERM |
0 |
|
Veri Sayfası |
OA200AN | Box | Active | 230VAC | Rectangular/Rounded - 220mm L x 200mm H | 70.00mm | 485.0 CFM (13.58m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 68.0dB | 105W | 3300 RPM | 2 Terminals | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 4 lbs (1.8 kg) |
|
|
OA254AN-22-1WBThermal Products |
0 |
|
- |
OA254AN | Bulk | Active | 230VAC | Round - 254mm Dia | 89.00mm | 700.0 CFM (19.60m³/min) | 0.530 in H2O (132.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 65.0dB | 70.0W | 2200 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | - |
|
109S405UL-20FAN 120X38MM 100VAC ALARM |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | Alarm | 43.0dB(A) | 12.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, PSE, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109S425UL-20FAN 120X38MM 230VAC ALARM |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | Alarm | 43.0dB(A) | 12.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, PSE, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109S474UL-30FAN 120X38MM 115VAC ALARM |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | Alarm | 45.0dB(A) | 16.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, PSE, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109S475UL-20FAN 120X38MM 100VAC ALARM |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | Alarm | 45.0dB(A) | 16.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, PSE, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109S429UL-20120X38MM 100V,SAN ACE,SNSR VLT 4 |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 100VAC | Square - 120mm L x 120mm H | 38.00mm | 83.0 CFM (2.32m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 12.00W | 2700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S429UL-30120X38MM 100V,SAN ACE,SNSR VLT 9 |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 100VAC | Square - 120mm L x 120mm H | 38.00mm | 83.0 CFM (2.32m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 12.00W | 2700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S406UL-30120X38MM 100V,SAN ACE, SNSR VLT |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 100VAC | Square - 120mm L x 120mm H | 38.00mm | 53.0 CFM (1.48m³/min) | 0.071 in H2O (17.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 6.00W | 1700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S405UL-30120X38MM 100V,SAN ACE, SNSR VLT |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 100VAC | Square - 120mm L x 120mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 12.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S475UL-30120X38MM 100V,SAN ACE, SNSR VLT |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 100VAC | Square - 120mm L x 120mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 16.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S472UL-20120X38MM 230V,SAN ACE, SNSR VLT |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 16.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S408UL-30120X38MM 200V,SAN ACE,SNSR VLT 9 |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 200VAC | Square - 120mm L x 120mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 12.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S424UL-20120X38MM 115V,SAN ACE, SNSR VLT |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 12.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S408UL-20120X38MM 200V,SAN ACE, SNSR VLT |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 200VAC | Square - 120mm L x 120mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 12.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S424UL-30120X38MM 115V,SAN ACE, SNSR VLT |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 12.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S406UL-20120X38MM 100V,SAN ACE, SNSR VLT |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 100VAC | Square - 120mm L x 120mm H | 38.00mm | 53.0 CFM (1.48m³/min) | 0.071 in H2O (17.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 6.00W | 1700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
OA254AN-22-3TBFAN AXIAL 254X89MM 230VAC TERM |
0 |
|
Veri Sayfası |
OA254AN | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 320.0 CFM (8.96m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 48.0dB | 32.00W | 1100 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | 5.4 lbs (2.4 kg) |
|
UF25HC12/23-BWHRFAN AXIAL 254X107MM 115/230V WR |
0 |
|
Veri Sayfası |
UF25HC | Bulk | Active | 115/230VAC | Round - 254mm Dia | 107.0mm | 850.0 CFM (23.80m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 65.0dB(A) | 125W | 2750 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 5.5 lbs (2.5 kg) |
