AC Fanlar
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55416.27250CROSSFLOW BLOWER 115VAC, 46W |
501 |
|
Veri Sayfası |
QLN65 | Bulk | Active | 115VAC | Rectangular - 271mm L x 90mm H | 108.4mm | - | - | - | Blower | - | - | 46.00W | - | 2 Terminals | - | - | - | - |
|
RG125-19/06FAN BLWR FLATPAK 180X40MM 115VAC |
346 |
|
Veri Sayfası |
RG125 | Box | Active | 115VAC | Square - 180mm L x 180mm H | 40.00mm | 55.3 CFM (1.55m³/min) | - | Ball | Blower, Flatpak | - | 60.0dB(A) | 19.00W | 2750 RPM | 2 Wire Leads | - | -22 ~ 176°F (-30 ~ 80°C) | CE, CSA, UL, VDE | 2 lbs (907.2 g) |
|

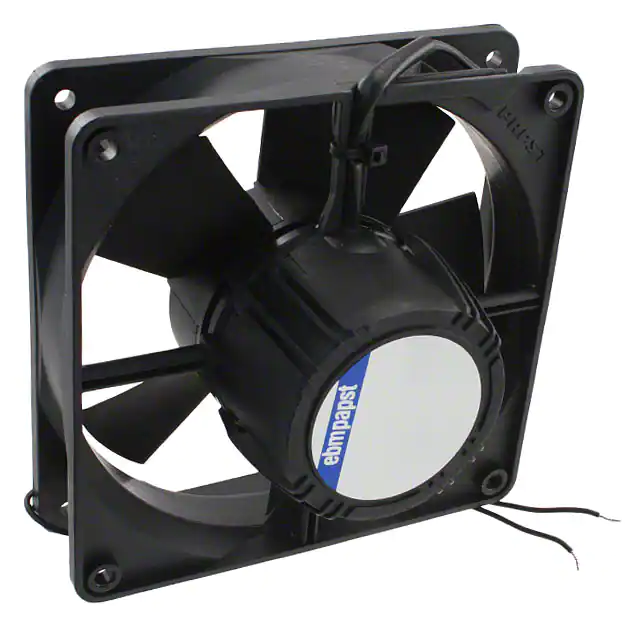

AC4300HFAN AXIAL 119X32MM 85/265VAC |
150 |
|
Veri Sayfası |
Green Tech ACmaxx, AC4300 | Box | Active | 115VAC | Square - 119mm L x 119mm H | 32.00mm | 120.0 CFM (3.36m³/min) | - | Ball | Tubeaxial | Electronic Commutation (EC), Locked Rotor Protection | 51.0dB(A) | 11.00W | 3400 RPM | 2 Wire Leads | IP21 | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.716 lb (324.77 g) |
|

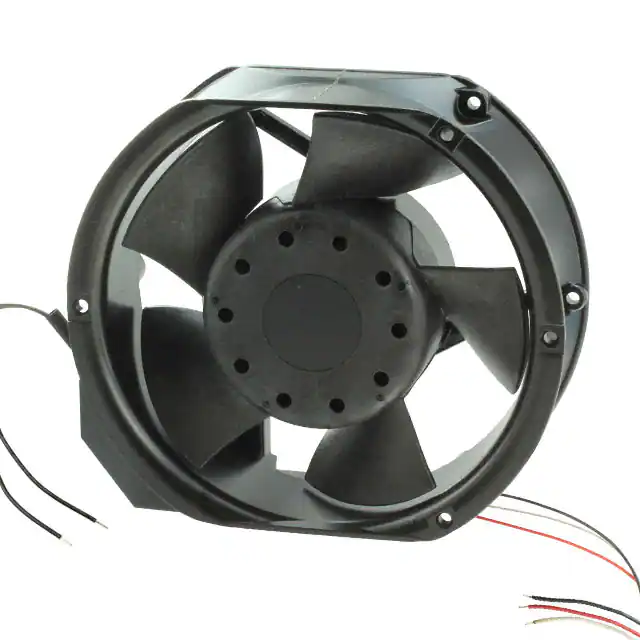

UF15KC12-BWHR-B1FAN 172X150X55MM 115VAC TACH |
129 |
|
Veri Sayfası |
UF15KC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 60.0dB(A) | 38.00W | 3400 RPM | 5 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) |
|

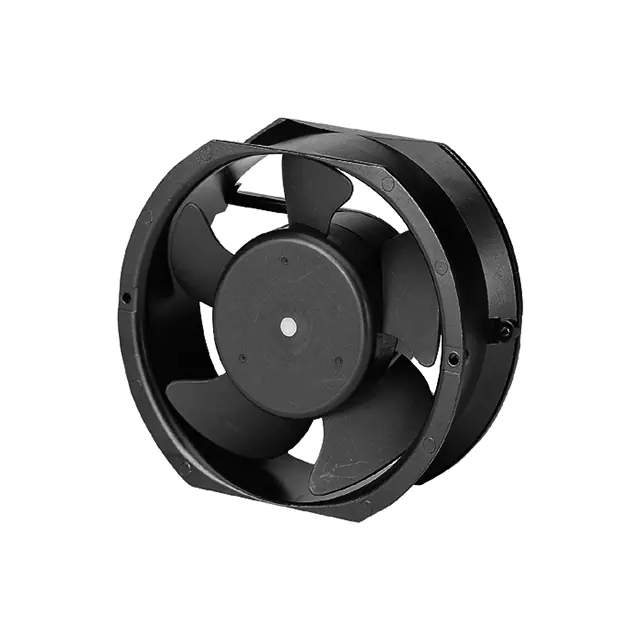

A2175-HBL.TC.GNFAN AXIAL 171.5X51MM 220/240VAC |
463 |
|
Veri Sayfası |
A | Bulk | Active | 240VAC | Rectangular/Rounded - 171.5mm L x 151.5mm H | 51.00mm | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 26.00W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 2.1 lbs (952.5 g) |
|
|
AFL15AUHSAXIAL 151X60.5MM 115/230VAC |
151 |
|
Veri Sayfası |
AFL | Box | Active | 115/230VAC | Round - 151mm Dia | 60.50mm | 214.1 CFM (5.99m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Dual Speed, Dual Voltage, Locked Rotor Protection, Thermal Overload Protector (TOP) | 56.0dB(A) | 10.00W, 17.00W | 2600 RPM/3200 RPM | 3 Wire Leads | - | -40°C ~ 60°C | cURus | - |
|

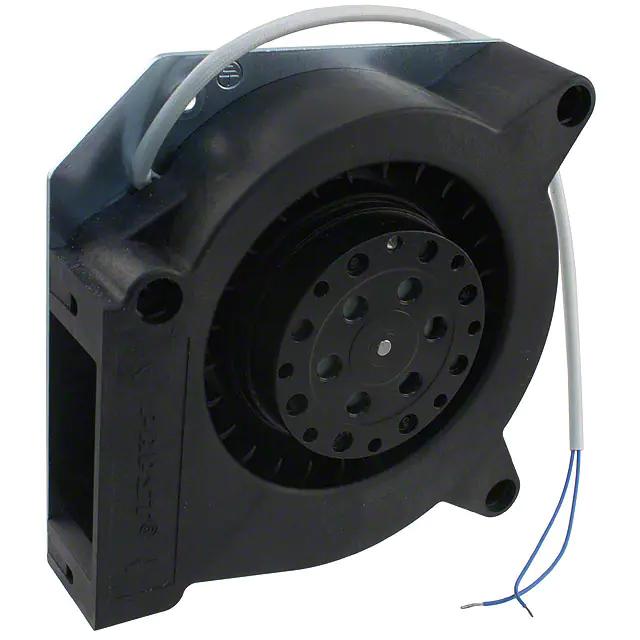

RL90-18/06FAN BLWR FLATPAK 121X37MM 115VAC |
60 |
|
Veri Sayfası |
RL90N | Box | Active | 115VAC | Square - 121mm L x 121mm H | 37.00mm | 24.7 CFM (0.692m³/min) | - | Ball | Blower, Flatpak | - | 60.0dB(A) | 19.50W | 2550 RPM | 2 Wire Leads | - | -22 ~ 185°F (-30 ~ 85°C) | - | 1.5 lbs (680.4 g) |
|
RL90-18/56FAN BLWR FLATPAK 121X37MM 230VAC |
133 |
|
Veri Sayfası |
RL90 | Box | Active | 230VAC | Square - 121mm L x 121mm H | 37.00mm | 23.5 CFM (0.658m³/min) | - | Ball | Blower, Flatpak | - | 60.0dB(A) | 20.00W | 2450 RPM | 2 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 1.5 lbs (680.4 g) |
|

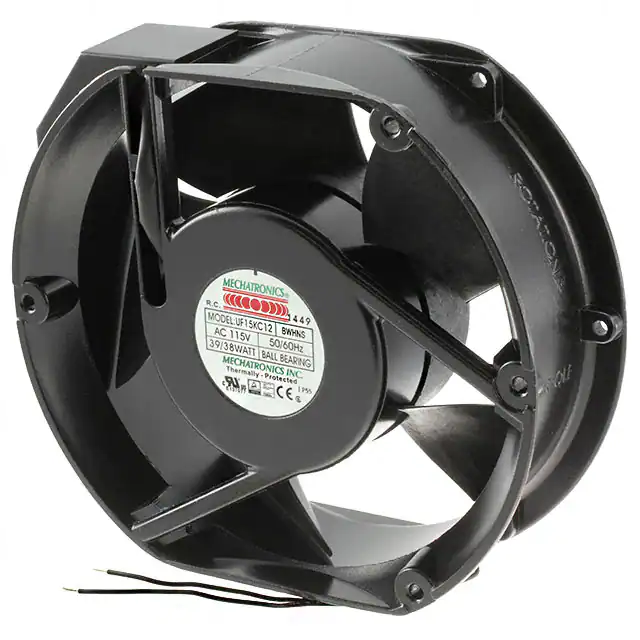

UF15KC12-BWHNSR172X150X55MM 115V IP55 SALT FOG |
121 |
|
Veri Sayfası |
UF15KC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) | 60.0dB(A) | 38.00W | 3400 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) |
|

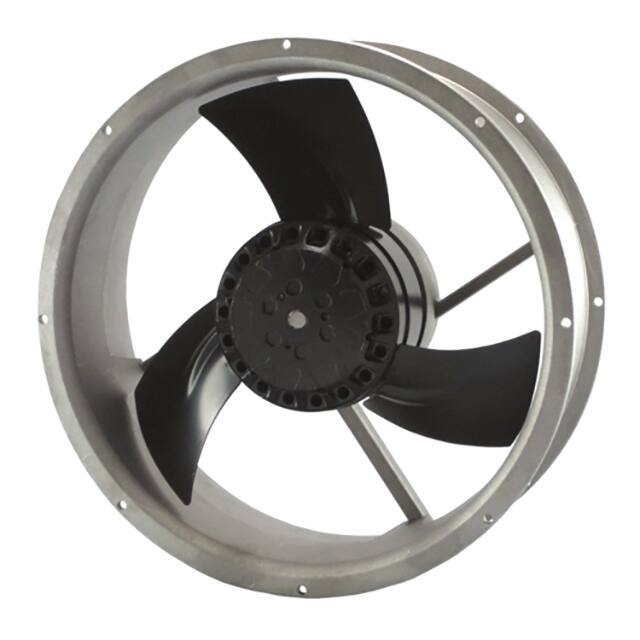

OA180APL-11-2TBFAN AC 180X65 115V BALL |
152 |
|
Veri Sayfası |
OA180APL | Bulk | Active | 115VAC | Square - 180mm L x 180mm H | 65.00mm | 280.0 CFM (7.84m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 50.0W | 2200 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | - |
|
|
RG125-19/56FAN BLWR FLATPAK 180X40MM 230VAC |
51 |
|
Veri Sayfası |
RG125 | Bulk | Active | 230VAC | Square - 180mm L x 180mm H | 40.00mm | 50.6 CFM (1.42m³/min) | - | Ball | Blower, Flatpak | - | 60.0dB(A) | 20.00W | 2550 RPM | 2 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | CE, CSA, UL, VDE | 2 lbs (907.2 g) |
|
UF190APA12-H1C2AIMPELLER 190X70MM 115VAC |
38 |
|
Veri Sayfası |
UF190APA | Bulk | Active | 115VAC | Round - 190mm Dia | 70.00mm | 370.0 CFM (10.36m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 63.0dB(A) | 65.0W | 2700 RPM | 4 Wire Leads | - | -40 ~ 122°F (-40 ~ 50°C) | CE, cUL, TUV, UL | 2.7 lbs (1.2 kg) |
|
R2E190-RA26-20190 MM AC CENTRIFUGAL FAN |
176 |
|
Veri Sayfası |
RadiCal® R2E190RA | Bulk | Active | 230VAC | Round - 190mm Dia | 68.50mm | 347.3 CFM (9.72m³/min) | - | Ball | Motorized Impellers | - | 68.0dB(A) | 70.0W | 2500 RPM | 4 Wire Leads | IP44 | -13 ~ 167°F (-25 ~ 75°C) | UL | 2.6 lbs (1.2 kg) |
|

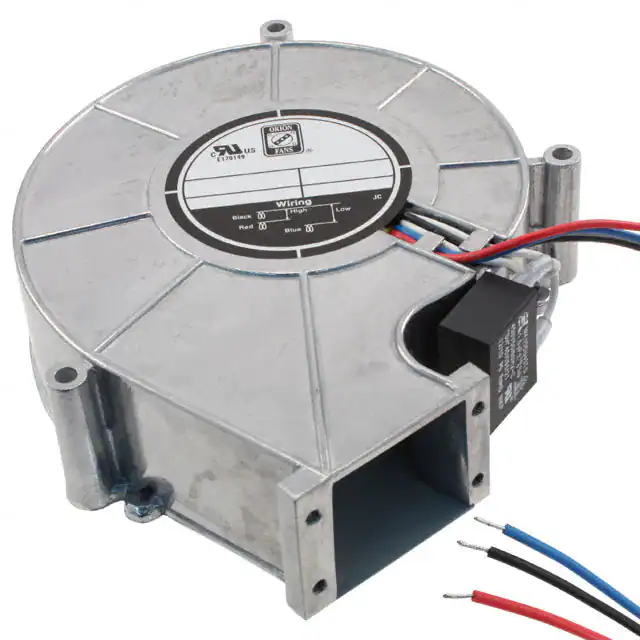

OAB908AN-22-1/2FAN BLOWER 183X70MM 220VAC WIRE |
42 |
|
Veri Sayfası |
OAB908 | Box | Active | 230VAC | Rectangular/Rounded - 183mm L x 189.8mm H | 70.00mm | 75.0 ~ 100.0 CFM (2.10 ~ 2.80m³/min) | 1.40/1.80 in H2O (348.7/448.4 Pa) | Ball | Blower | Dual Speed, Thermal Overload Protector (TOP) | 55/68dB | 65.0W, 80.0W | 2400/3100 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus | - |
|
OA254AN-22-1WBXCFAN AXIAL 254X89MM 230VAC WIRE |
30 |
|
Veri Sayfası |
OA254AN XC | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 850.0 CFM (23.80m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 69.0dB | 75.0W | 2700 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | 5.4 lbs (2.4 kg) |
|

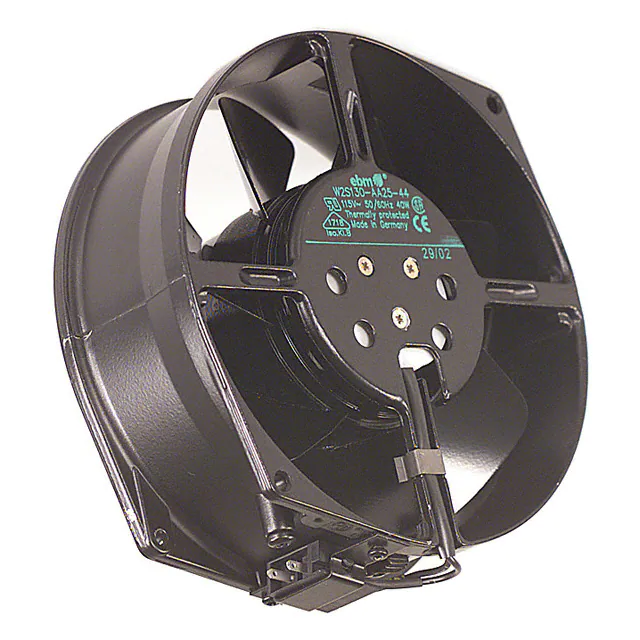

W2S130-AA25-44FAN AXIAL 150X55MM 115VAC TERM |
28 |
|
- |
W2S130 | Bulk | Active | 115VAC | Round - 150mm Dia | 55.00mm | 223.6 CFM (6.26m³/min) | - | Ball | Tubeaxial | - | 53.0dB(A) | 38.00W | - | 2 Terminals | - | -13 ~ 140°F (-25 ~ 60°C) | CE, CSA, UL, VDE | 2.4 lbs (1.1 kg) |
|
4606ZWU-879FAN AXIAL 119X38MM 115VAC WIRE |
50 |
|
Veri Sayfası |
4000ZU | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.321 in H2O (80.0 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 17.00W | 3100 RPM | 2 Wire Leads | IP65 - Dust Tight, Water Resistant | -40 ~ 176°F (-40 ~ 80°C) | CCC, CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
OA254AP-22-1WBFAN AXIAL 254X89MM 230VAC WIRE |
57 |
|
Veri Sayfası |
OA254 | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 547.0 CFM (15.32m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 55.0dB | 35.00W | 1650 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 4.2 lbs (1.9 kg) |
|

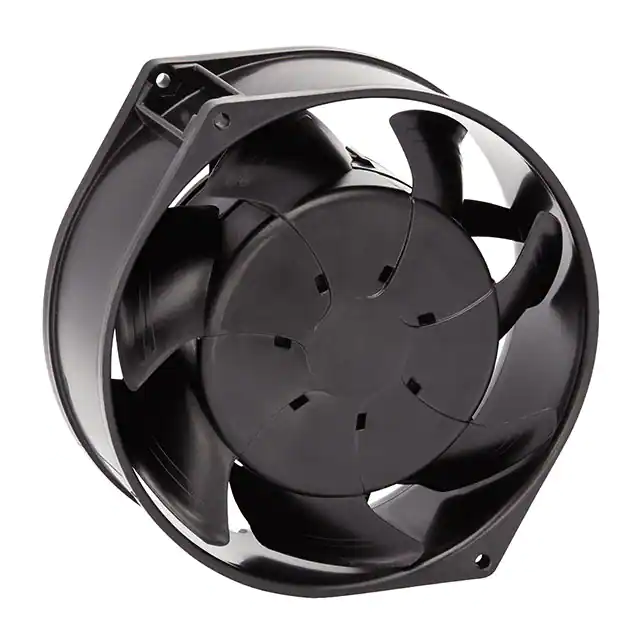

W1G130-AA49-01FAN 115VAC 220CFM 130MM |
129 |
|
Veri Sayfası |
W1G130 | Box | Active | 115VAC | Round - 151mm Dia | 58.00mm | - | 0.363 in H2O (90.5 Pa) | Ball | Tubeaxial | - | - | 24.00W | 3200 RPM | - | IP54 - Dust Protected, Water Resistant | -22 ~ 140°F (-30 ~ 60°C) | CSA, EAC, UL, VDE | 1.7 lbs (771.1 g) |
|
W2E143-AB09-06FAN AXIAL 230VAC 172X51MM |
88 |
|
Veri Sayfası |
W2E143 | Bulk | Active | 230VAC | Round - 171.5mm Dia | 51.00mm | - | - | Ball | Tubeaxial | - | - | 29.00W | 3300 RPM | - | IP20 | -13 ~ 167°F (-25 ~ 75°C) | CCC, CE, CSA, UL, VDE | 2 lbs (907.2 g) |
