DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

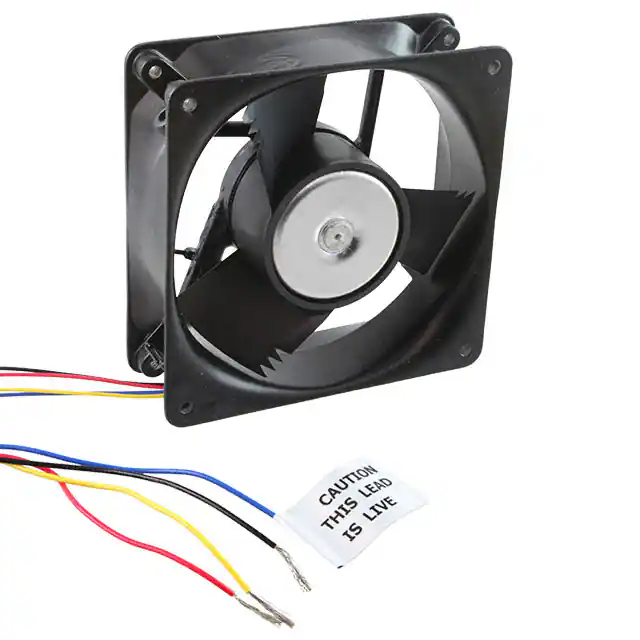

17001162AFAN AXIAL 12VDC MDD12B1E2X-E3 |
0 |
|
Veri Sayfası |
- | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 6 W | 3100 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
9WV0848P1H0011FAN AXIAL 80X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 131.0 CFM (3.67m³/min) | 1.770 in H2O (440.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 36 W | 9700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9WV0812P1M001180X38MM 12V,SPLASH PROOF,RBLS DC |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
PF60761B1-000U-A99Thermal Products |
0 |
|
Veri Sayfası |
PF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 58.7 CFM (1.64m³/min) | 2.540 in H2O (632.7 Pa) | Ball | Tubeaxial (Dual) | Auto Restart | 62.8dB(A) | 19.2 W | 14600 RPM Front, 11700 RPM Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PF60761BX-000U-A99Thermal Products |
0 |
|
Veri Sayfası |
PF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 73.2 CFM (2.05m³/min) | 3.960 in H2O (986.4 Pa) | Ball | Tubeaxial (Dual) | Auto Restart | 68.6dB(A) | 33.6 W | 18200 RPM Front, 14700 RPM Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
4354-133DC TUBEAXIAL FAN |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
9GA1248G4001FAN AXIAL 120X25.4MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 11.52 W | 6400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|
|
17001164AFAN AXIAL 48VDC MDD48B1E2X-E3 |
0 |
|
Veri Sayfası |
- | Bulk | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 5.8 W | 3100 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
CFM-A751BF-253-623-22FAN AXIAL 172X51.5MM 24VDC WIRE |
0 |
|
Veri Sayfası |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 382.7 CFM (10.72m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.3dB(A) | 83.5 W | 5300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9GT0412J3002FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 40T | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.4 CFM (0.515m³/min) | 0.827 in H2O (206.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 3.72 W | 11700 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
9GT0424J3002FAN AXIAL 40X28MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 40T | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 18.4 CFM (0.515m³/min) | 0.827 in H2O (206.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 3.6 W | 11700 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
AHB1348GHE-CZ41FAN AXIAL 127X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
AHB | Box | Obsolete | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 255.8 CFM (7.16m³/min) | 1.448 in H2O (360.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 36 W | 5500 RPM | 4 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|
|
PF60761B1-000U-H9912VDC FAN 60X76MM PWM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 58.8 CFM (1.64m³/min) | 2.540 in H2O (632.7 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, PWM Control | 62.8dB(A) | 19.2 W | 14600 RPM Front, 11700 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60761B1-000U-G9912VDC FAN 60X76MM ALARM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 58.8 CFM (1.64m³/min) | 2.540 in H2O (632.7 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Speed Sensor (Tach) | 62.8dB(A) | 19.2 W | 14600 RPM Front, 11700 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60761BX-000U-H9912VDC FAN 60X76MM PWM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 73.1 CFM (2.05m³/min) | 3.960 in H2O (986.4 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, PWM Control | 68.6dB(A) | 33.6 W | 18200 RPM Front, 14700 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60761BX-000U-G9912VDC FAN 60X76MM ALARM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 73.1 CFM (2.05m³/min) | 3.960 in H2O (986.4 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Speed Sensor (Tach) | 68.6dB(A) | 33.6 W | 18200 RPM Front, 14700 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

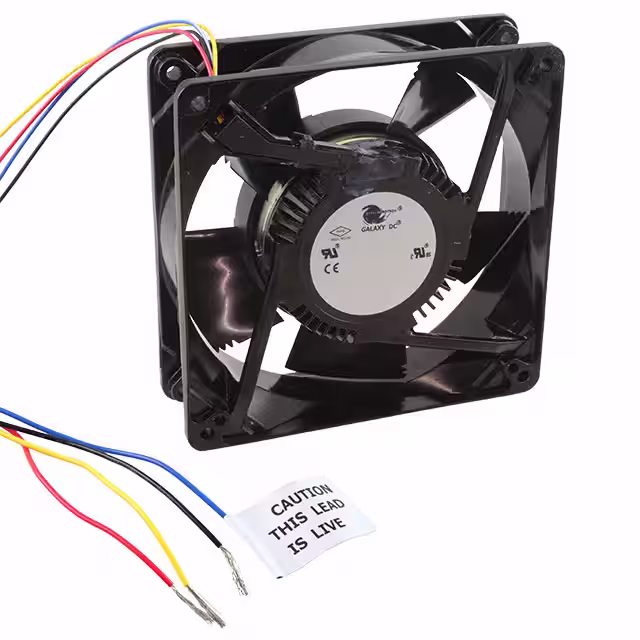

17001174AFAN AXIAL 24VDC GLD24K3E2X-E3 |
0 |
|
Veri Sayfası |
- | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.10mm | 175.0 CFM (4.90m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.9dB(A) | 22.8 W | 3900 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001207AFAN AXIAL 12VDC GLD12B3-E3 |
0 |
|
Veri Sayfası |
Galaxy | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 53.6dB(A) | 15.6 W | 3300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001209AFAN AXIAL 48VDC GLD48B3-E3 |
0 |
|
Veri Sayfası |
Galaxy | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 53.6dB(A) | 14.9 W | 3300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
109L0612S4D0160X25MM 12V,LONG LIFE,RBLS DC LC |
0 |
|
Veri Sayfası |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
