DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WS0912L402FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 720 mW | 1700 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0912M402FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 35.7 CFM (1.00m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | - | 27.0dB(A) | 1.2 W | 2100 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0924F402FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.68 W | 2450 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0924L402FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 1.2 W | 1700 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0924M402FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 35.7 CFM (1.00m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | - | 27.0dB(A) | 1.44 W | 2100 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9HV1248H1002FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 254.0 CFM (7.11m³/min) | 4.220 in H2O (1051.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 72.0dB(A) | 67 W | 10000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.1 lbs (499.0 g) |
|
GFB1248VHW-TP15FAN AXIAL DUAL 120X76.2MM 52VDC |
0 |
|
Veri Sayfası |
GFB | Box | Obsolete | 52VDC | Square - 120mm L x 120mm H | 76.20mm | 220.3 CFM (6.17m³/min) | 0.592 in H2O (147.5 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 20.8 W | 3550 Front, 3200 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
|
9WS0912F401FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1.56 W | 2450 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0912F4D01FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB(A) | 1.56 W | 2450 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

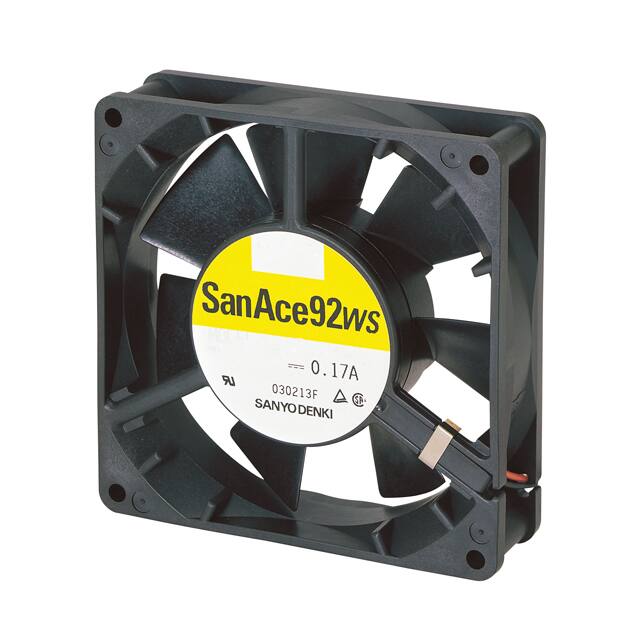

9WS0912H401FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 2.04 W | 2850 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0912L401FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 23.0dB(A) | 720 mW | 1700 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0912M401FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 35.7 CFM (1.00m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 2100 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0924F401FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1.68 W | 2450 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0924H4D01FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.0dB(A) | 2.4 W | 2850 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0924L401FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 23.0dB(A) | 1.2 W | 1700 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0924M401FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 35.7 CFM (1.00m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 27.0dB(A) | 1.44 W | 2100 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9HV1248H1001FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 254.0 CFM (7.11m³/min) | 4.220 in H2O (1051.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 72.0dB(A) | 67 W | 10000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.1 lbs (499.0 g) |
|
|
15050VA-48P-GA-00DC AXIAL FAN |
0 |
|
Veri Sayfası |
15050VA | Box | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 282.6 CFM (8.00m³/min) | 0.931 in H2O (232.0 Pa) | Ball | Tubeaxial | Auto Restart | 62.0dB | 26.4 W | 3750 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15050VA-48Q-GA-00DC AXIAL FAN |
0 |
|
Veri Sayfası |
15050VA | Box | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 304.0 CFM (8.51m³/min) | 1.072 in H2O (267.0 Pa) | Ball | Tubeaxial | Auto Restart | 64.0dB | 31.2 W | 4000 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15050VA-24P-GA-00DC AXIAL FAN |
0 |
|
Veri Sayfası |
15050VA | Box | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 282.6 CFM (8.00m³/min) | 0.931 in H2O (232.0 Pa) | Ball | Tubeaxial | Auto Restart | 62.0dB | 26.4 W | 3750 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
