DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

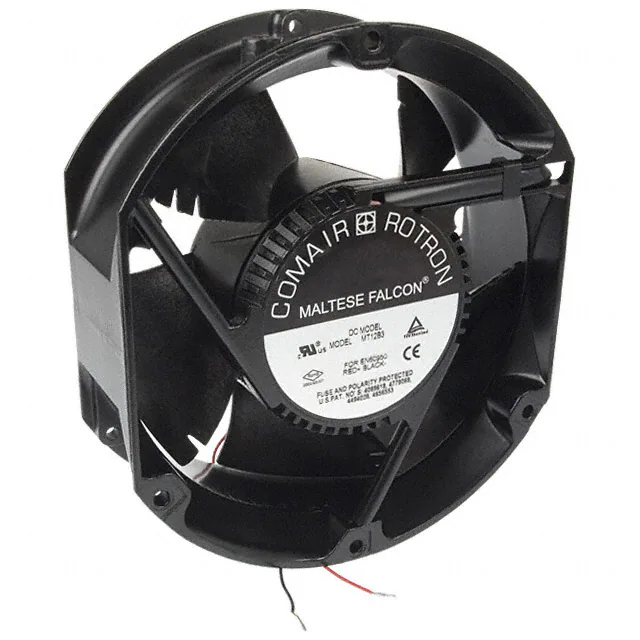

19031841AFAN AXIAL 171.5X55MM 48V MT48B3 |
0 |
|
Veri Sayfası |
Maltese | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 55.00mm | 298.0 CFM (8.34m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 57.1dB(A) | 34.6 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.8 lbs (816.5 g) |
|
9GV1448P1S001FAN AXIAL 140X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 140 | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 272.0 CFM (7.62m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 37.44 W | 6650 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (635.0 g) |
|
19039850AFAN IMP MTR 175X68MM DD692712K1A |
0 |
|
Veri Sayfası |
Diplomat | - | Active | 12VDC | Round - 175mm Dia | 68.58mm | 332.0 CFM (9.30m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 68.8dB(A) | 56.4 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
AHB1548EH-F00FAN AXIAL 172X25.4MM 48VDC WIRE |
0 |
|
Veri Sayfası |
AHB | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 271.1 CFM (7.59m³/min) | 0.736 in H2O (183.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 61.0dB(A) | 24.96 W | 4000 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
RG125-19/14NMFAN BLOWER CF 180X40MM 24VDC |
0 |
|
Veri Sayfası |
RG125N | Box | Active | 24VDC | Square - 180mm L x 180mm H | 40.00mm | 35.3 CFM (0.988m³/min) | - | Ball | Blower, Centrifugal | - | 48.0dB(A) | 2 W | 1750 RPM | 2 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | - | 1.6 lbs (725.7 g) |
|
|
9WL0812G4D001FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 54.3 CFM (1.52m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 43.0dB(A) | 3.6 W | 5500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WL0924H4D00192X25MM 24V; SPLASH & DUST PROOF |
0 |
|
Veri Sayfası |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9GV5724H502FAN AXIAL 172X51MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 400.0 CFM (11.20m³/min) | 2.530 in H2O (630.2 Pa) | Ball | Tubeaxial | - | 74.0dB(A) | 96 W | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|
|
9GV5748H502FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 400.0 CFM (11.20m³/min) | 2.530 in H2O (630.2 Pa) | Ball | Tubeaxial | - | 74.0dB(A) | 96 W | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|
|
9GT1224S1002FAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120T | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 26.4 W | 5600 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|
|
TD48B6NDNXFAN AXL 175.5X107.2MM 48VDC RECT |
0 |
|
Veri Sayfası |
Tarzan | Box | Active | 48VDC | Square - 175.5mm L x 175.5mm H | 107.2mm | 330.0 CFM (9.24m³/min) | - | Ball | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 65.2dB(A) | 33.6 W | 3275 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | - |
|
|
9GT1224S1D001FAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120T | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 58.0dB(A) | 26.4 W | 5600 RPM | 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|
|
19039851AFAN IMP MTR 175X68MM DD692724K1A |
0 |
|
Veri Sayfası |
Diplomat | Bulk | Active | 24VDC | Round - 175mm Dia | 68.58mm | 332.0 CFM (9.30m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 68.8dB(A) | 44.9 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
|
9LG1212M1002120X38MM 12V, HIGH PERF LONG LIF |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG1224H1D001FAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 176.6 CFM (4.94m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 54.0dB(A) | 16.8 W | 4700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|
|
9LG1224S1001FAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 26.4 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|
|
9LG1224A1D001FAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120L | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 137.8 CFM (3.85m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 8.88 W | 3700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9LG1212F1001120X38MM 12V, HIGH PERF LONG LIF |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 4.68 W | 2800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9LG1212F1D001120X38MM 12V, HIGH PERF LONG LIF |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG1224H1001120X38MM 24V, HIGH PERF LONG LIF |
0 |
|
Veri Sayfası |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
