DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
08025KA-24L-EL-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 31.8 CFM (0.890m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB | 1.92 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24M-AA-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 35.3 CFM (0.988m³/min) | - | Ball | Tubeaxial | - | 31.0dB | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24M-AL-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 35.3 CFM (0.988m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB | 2.4 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24M-EA-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 35.3 CFM (0.988m³/min) | - | Ball | Tubeaxial | - | 31.0dB | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24M-EL-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 35.3 CFM (0.988m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB | 2.4 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24N-AA-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.8 CFM (1.09m³/min) | - | Ball | Tubeaxial | - | 34.0dB | 2.88 W | 3250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24N-AL-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.8 CFM (1.09m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB | 2.88 W | 3250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24N-AT-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.8 CFM (1.09m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 2.88 W | 3250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24N-EA-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.8 CFM (1.09m³/min) | - | Ball | Tubeaxial | - | 34.0dB | 2.88 W | 3250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24P-AA-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | - | Ball | Tubeaxial | - | 35.0dB | 3.36 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24P-AL-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB | 3.36 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24P-EA-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | - | Ball | Tubeaxial | - | 35.0dB | 3.36 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24P-EL-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB | 3.36 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24Q-AA-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 45.9 CFM (1.29m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 40.0dB | 3.84 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24Q-EA-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 45.9 CFM (1.29m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 40.0dB | 3.84 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
08025KA-24Q-EL-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
- | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 45.9 CFM (1.29m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB | 3.84 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
08025SA-12P-AA-00FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|

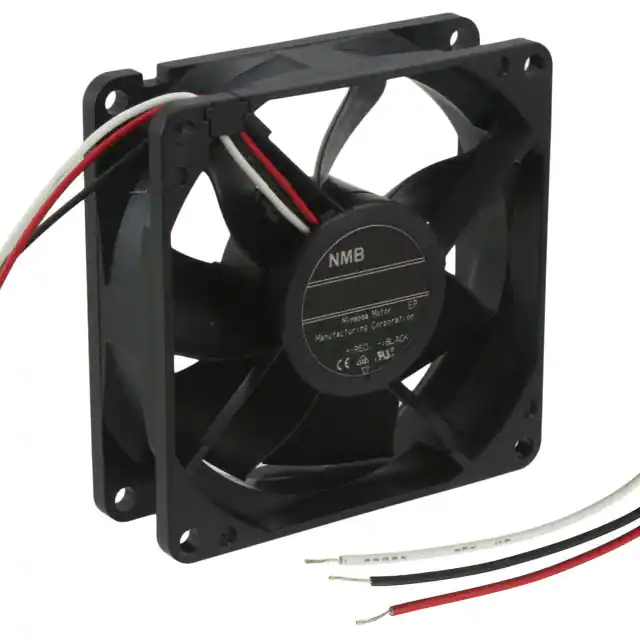

08025SA-12P-EL-00FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
08025SA-12R-AL-00FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB | 3.84 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
08025SA-24P-EA-00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
