DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0912T4H122FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 53.7 CFM (1.50m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Thermistor | 35.0dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0912T4H123FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 53.7 CFM (1.50m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Thermistor | 35.0dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0912W401FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 2.52 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0912W4021FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.52 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0924F402FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.130 in H2O (32.5 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.92 W | 2450 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0924F4D011FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.130 in H2O (32.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB(A) | 1.92 W | 2450 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|

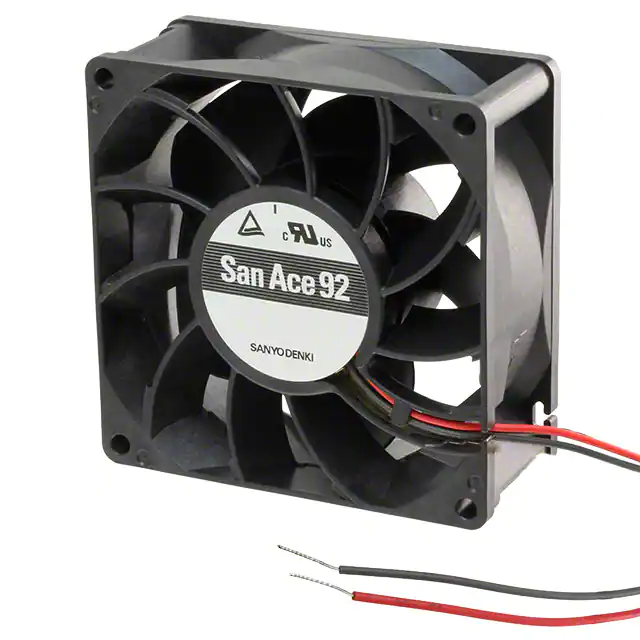

109P0924L4021FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 28.3 CFM (0.792m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 1.2 W | 1700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0924M401FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 36.7 CFM (1.03m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 27.0dB(A) | 1.44 W | 2100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0924M4011FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 36.7 CFM (1.03m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 27.0dB(A) | 1.44 W | 2100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0924M402FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 36.7 CFM (1.03m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | - | 27.0dB(A) | 1.44 W | 2100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0924M4021FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 36.7 CFM (1.03m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | - | 27.0dB(A) | 1.44 W | 2100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0924W402FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.88 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0924W4021FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.88 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0924W4D011FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.0dB(A) | 2.88 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0948H401FAN AXIAL 92X25MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 92 | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 2.88 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P1212T4H121FAN AXIAL 119X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 88.3 CFM (2.50m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | Thermistor, External | 40.0dB(A) | 6.6 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UR | 0.463 lb (210.01 g) |
|
109R0612T4H122FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.4 CFM (0.543m³/min) | 0.168 in H2O (41.8 Pa) | Ball | Tubeaxial | Thermistor | 28.0dB(A) | 1.56 W | 3950 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0624H4D011FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.44 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0812T4H11FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach), Thermistor (External) | 29.0dB(A) | 1.68 W | 2900 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0824L402FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 960 mW | 1850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
