DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0824M4D011FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | 1.2 W | 2350 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0805M401FAN AXIAL 80X25MM BALL 5VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 850 mW | 2350 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0805M4011FAN AXIAL 80X25MM BALL 5VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 850 mW | 2350 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812L401FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 720 mW | 1850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812L4011FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 720 mW | 1850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0824M401FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 1.2 W | 2350 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0624D402FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.88 W | 5150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0624D4021FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.88 W | 5150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
OD2510-24LBThermal Products |
0 |
|
- |
OD2510 | Bulk | Active | 24VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 18.1dB(A) | 720 mW | 6300 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD2510-24MBThermal Products |
0 |
|
- |
OD2510 | Bulk | Active | 24VDC | Square - 25mm L x 25mm H | 10.00mm | 2.0 CFM (0.056m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart | 24.4dB(A) | 960 mW | 9250 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
MD4028X24B6-RSRFAN AXIAL 40X28MM 24VDC WIRE |
0 |
|
Veri Sayfası |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 47.3dB(A) | - | 11500 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
PF80251B3-1000U-G9912VDC FAN 80X25MM ALARM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.5dB(A) | 2.34 W | 4200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80251B2-1000U-H9912VDC FAN 80X25MM PWM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 56.0 CFM (1.6m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 44.0dB(A) | 3.06 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80251B3-1000U-H9912VDC FAN 80X25MM PWM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 42.5dB(A) | 2.34 W | 4200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80251B1-1000U-H9912VDC FAN 80X25MM PWM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 45.5dB(A) | 3.54 W | 4800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80251B2-1000U-G9912VDC FAN 80X25MM ALARM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 56.0 CFM (1.6m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 3.06 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80251B1-1000U-G9912VDC FAN 80X25MM ALARM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.5dB(A) | 3.54 W | 4800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

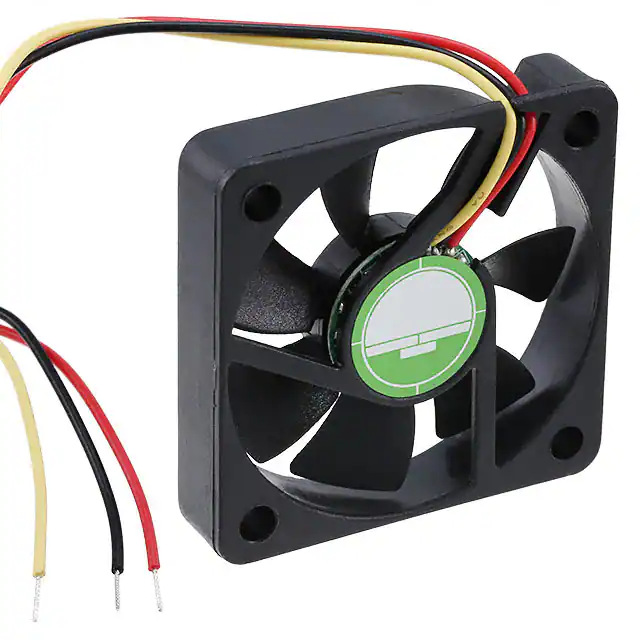

OD5010-05MB02AFAN AXIAL 50X10.5MM 5VDC WIRE |
0 |
|
Veri Sayfası |
OD5010 | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.50mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | CE, cURus | - |
|
|
CFM-6025BG68-135-253-20DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 |
|
Veri Sayfası |
CFM-60BG68 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.7 CFM (0.412m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.3dB(A) | 0.72 W | 3500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG68-235-253-20DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 |
|
Veri Sayfası |
CFM-60BG68 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.7 CFM (0.412m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.3dB(A) | 0.96 W | 3500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
