DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S1212F4D011FAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 70.6 CFM (1.98m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB(A) | 2.28 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
|
9S1212H4D01FAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 86.5 CFM (2.42m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.0dB(A) | 4.68 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
|
PF38281B1-1000U-F9HFAN AXIAL 38X28MM 12VDC WIRE |
0 |
|
Veri Sayfası |
PF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 18.1 CFM (0.507m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 51.8dB(A) | 3.78 W | 16000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF38281BX-1000U-F9H12VDC FAN 38X28MM TACH |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 23.0 CFM (0.644m³/min) | 2.260 in H2O (562.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 57.0dB(A) | 6.84 W | 20000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
9WF0424H702FAN AXIAL 40X15MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.9 CFM (0.193m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 2.04 W | 11300 RPM | 2 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.078 lb (35.38 g) |
|
|
PF40281B1-1000U-H9HFAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Veri Sayfası |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 56.0dB(A) | 6.12 W | 17600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF40281B1-1000U-G9HFAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Veri Sayfası |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.0dB(A) | 6.12 W | 17600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF40281BX-1000U-H9H12VDC FAN 40X28MM PWM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 3.120 in H2O (777.2 Pa) | Ball | Tubeaxial | PWM Control | 62.0dB(A) | 11.4 W | 22000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF40281BX-1000U-G9H12VDC FAN 40X28MM ALARM |
0 |
|
Veri Sayfası |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 3.120 in H2O (777.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 62.0dB(A) | 11.4 W | 22000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

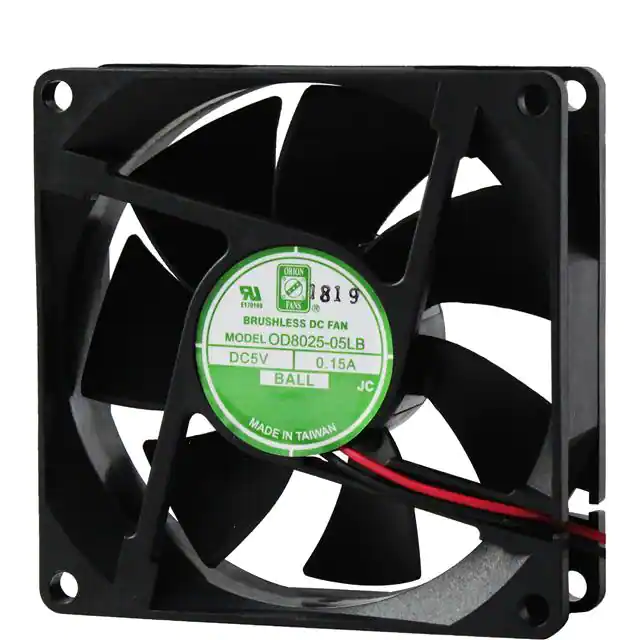

OD8025-48MBXEFAN AXIAL 80X25MM 48VDC WIRE |
0 |
|
Veri Sayfası |
OD8025 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 76.5 CFM (2.14m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Auto Restart | 55.7dB(A) | 19.2 W | 6975 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD8025-48LBXEFAN AXIAL 80X25MM 48VDC WIRE |
0 |
|
Veri Sayfası |
OD8025 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 64.6 CFM (1.81m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart | 50.3dB(A) | 14.4 W | 5990 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD2510-12HB01ADC FAN 12V 25X10MM |
0 |
|
Veri Sayfası |
OD2510 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.7 CFM (0.076m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.2dB(A) | 720 mW | 11500 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD2510-12HB02AThermal Products |
0 |
|
- |
OD2510 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.7 CFM (0.076m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.2dB(A) | 720 mW | 11500 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD2510-24HB02AThermal Products |
0 |
|
- |
OD2510 | Bulk | Active | 24VDC | Square - 25mm L x 25mm H | 10.00mm | 2.7 CFM (0.076m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.2dB(A) | 1.6 W | 11500 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD2510-24MB02AThermal Products |
0 |
|
- |
OD2510 | Bulk | Active | 24VDC | Square - 25mm L x 25mm H | 10.00mm | 2.0 CFM (0.056m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 24.4dB(A) | 960 mW | 9250 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
PF92252B1-1000U-G9924VDC FAN 92X25MM ALARM |
0 |
|
Veri Sayfası |
PF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.1dB(A) | 4.92 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF92252B1-1000U-H9924VDC FAN 92X25MM PWM |
0 |
|
Veri Sayfası |
PF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 46.1dB(A) | 4.92 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
F1238E12B1-FHRFAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
F1238-H | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 121.0 CFM (3.39m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | - | 3300 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.59 lb (267.62 g) |
|
F1238E12B1-FSRFAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 126.0 CFM (3.53m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
|
F1238E12B2-FHR-TTLFAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
F1238-H | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 121.0 CFM (3.39m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, Speed Sensor (Tach) | 44.0dB(A) | - | 3300 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.59 lb (267.62 g) |
