DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0812G1021FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 13.2 W | 6300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0812H102FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 10.8 W | 5700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0812H1021FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 10.8 W | 5700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0824H1021FAN AXIAL 80X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 10.1 W | 5700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

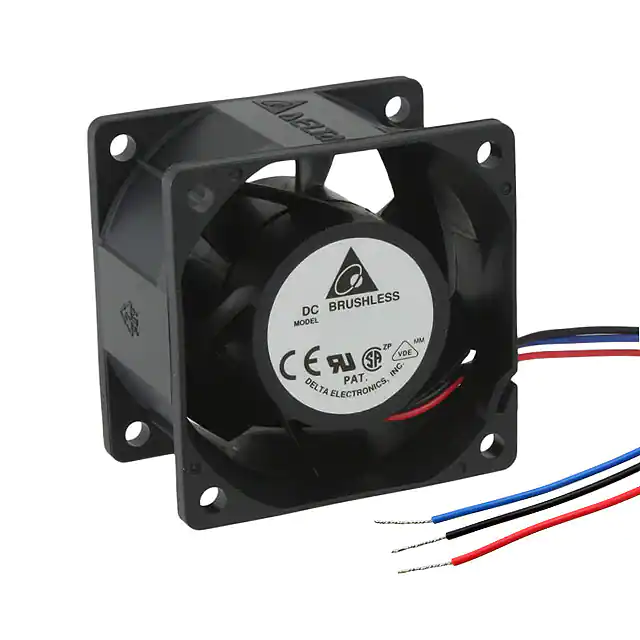

PFB0612SHE-R00FAN AXIAL 60X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
PFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 43.6 CFM (1.22m³/min) | 0.918 in H2O (228.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 50.5dB(A) | 5.76 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|
|
9GA0812G700280X15MM 12V, HIGH PERF., LOW POW |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9GA0824G700280X15MM 24V, HIGH PERF., LOW POW |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9BD24SA6-1FAN BLOWER 76X20MM 24VDC WIRE |
0 |
|
Veri Sayfası |
San Ace B76 | Box | Active | 24VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Blower | Locked Rotor Protection | 43.0dB(A) | 3.36 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.128 lb (58.06 g) |
|
|
09225VA-24L-CA-00DC AXIAL FAN |
0 |
|
Veri Sayfası |
09225VA | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 61.7 CFM (1.73m³/min) | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | Auto Restart | 38.5dB | 3.36 W | 3600 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-24K-CA-00DC AXIAL FAN |
0 |
|
Veri Sayfası |
09225VA | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 54.6 CFM (1.53m³/min) | 0.201 in H2O (50.0 Pa) | Ball | Tubeaxial | Auto Restart | 35.5dB | 2.64 W | 3200 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-24P-CA-00DC AXIAL FAN |
0 |
|
Veri Sayfası |
09225VA | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 86.7 CFM (2.43m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB | 6.72 W | 5000 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-12K-CA-00DC AXIAL FAN |
0 |
|
Veri Sayfası |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 54.6 CFM (1.53m³/min) | 0.201 in H2O (50.0 Pa) | Ball | Tubeaxial | Auto Restart | 35.5dB | 2.16 W | 3200 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC1203824H2B-2T0FAN 120X38MM 24VDC |
0 |
|
Veri Sayfası |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 9.6 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
OD6025-48HHBIP68FAN AXIAL 60X25MM 48VDC WIRE |
0 |
|
Veri Sayfası |
OD6025 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 32.0 CFM (0.896m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB(A) | 3.4 W | 4390 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | 0.141 lb (63.96 g) |
|
|
F1238E24B-FHR-CCFAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
F1238-H | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 121.0 CFM (3.39m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart, Conformal Coating | 44.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.59 lb (267.62 g) |
|
F1238X12B-FSR-CCFAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 45.0dB(A) | - | 3100 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
|
F1238X24B-FSR-CCFAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 45.0dB(A) | - | 3100 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
|
F1238X24BT-FSR-CCFAN AXIAL 119X38MM 24VDC TERM |
0 |
|
Veri Sayfası |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 45.0dB(A) | - | 3100 RPM | 2 Terminals | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
|
DC0401005V2B-3T1FAN 40X10MM 5VDC TACH COMPUTER |
0 |
|
Veri Sayfası |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2 W | 10000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0402812L2B-3T3FAN 40X28MM 12VDC TACH MOLEX 22- |
0 |
|
Veri Sayfası |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.9 CFM (0.445m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 3.12 W | 9500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
