DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9WP0812P4G0480X25MM 12V, SPLASH PROOF DC LCK |
0 |
|
Veri Sayfası |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | - | - | CSA, TUV, UR | - |
|

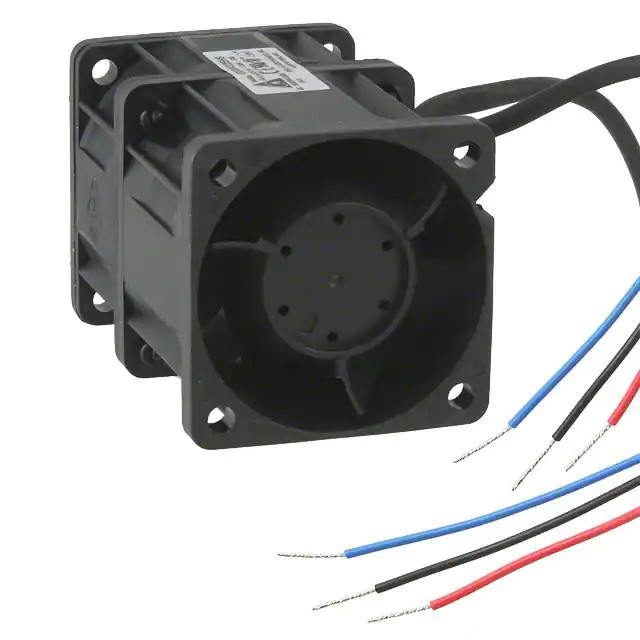

GFB0412GHS-CF00FAN AXIAL DUAL 40X56MM 12VDC |
0 |
|
Veri Sayfası |
GFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 34.9 CFM (0.977m³/min) | 2.397 in H2O (597.1 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 66.5dB(A) | 21.36 W | 16100 Front, 17100 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
MS9238L24B-FHR-2EMFAN AXIAL 92X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
MS9238-H | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 80.7 CFM (2.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB(A) | - | 4000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.446 lb (202.3 g) |
|
|
MS9238M24B-FHR-2EMFAN AXIAL 92X38MM 24VDC WIRE |
0 |
|
Veri Sayfası |
MS9238-H | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 125.3 CFM (3.51m³/min) | 0.870 in H2O (216.7 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | - | 6000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.446 lb (202.3 g) |
|
|
MS9238L48B-FHR-2EMFAN AXIAL 92X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
MS9238-H | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 80.7 CFM (2.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB(A) | - | 4000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.446 lb (202.3 g) |
|
|
MS9238M48B-FHR-2EMFAN AXIAL 92X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
MS9238-H | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 125.3 CFM (3.51m³/min) | 0.870 in H2O (216.7 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | - | 6000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.446 lb (202.3 g) |
|

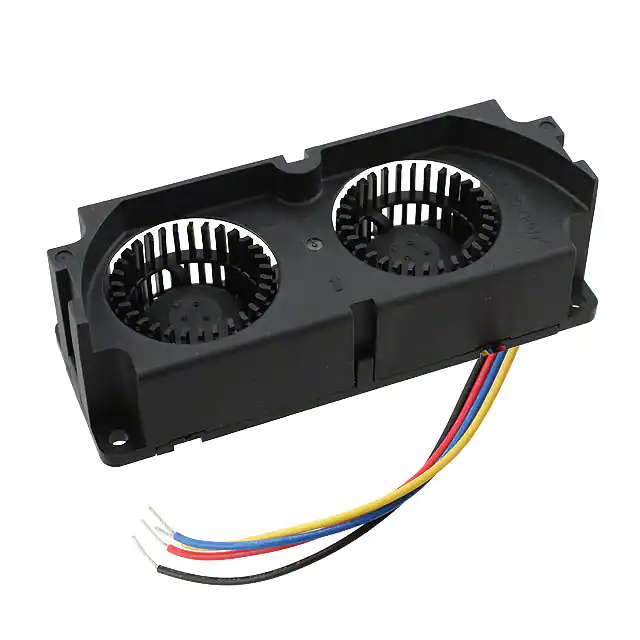

SFB0212HH-F00FAN BLOWER CF 125X45MM 12VDC |
0 |
|
Veri Sayfası |
SFB | Box | Obsolete | 12VDC | Rectangular - 125mm L x 38mm H | 45.00mm | 23.1 CFM (0.647m³/min) | 0.643 in H2O (160.2 Pa) | Ball | Blower, Centrifugal (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 7.44 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|
4712KL-04W-B59-P00FAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 120.0 CFM (3.36m³/min) | 0.373 in H2O (93.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 50.5dB | 10.2 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-04W-B19-P00FAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 56.1 CFM (1.57m³/min) | 0.088 in H2O (21.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB | 1.92 W | 1600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-04W-B19-P50FAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 56.1 CFM (1.57m³/min) | 0.088 in H2O (21.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 1.92 W | 1600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-04W-B29-P00FAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 82.2 CFM (2.30m³/min) | 0.168 in H2O (41.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB | 3.84 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-04W-B29-P50FAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 82.2 CFM (2.30m³/min) | 0.168 in H2O (41.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB | 3.84 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-04W-B39-P00FAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 99.9 CFM (2.80m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB | 5.76 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-04W-B39-P50FAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 99.9 CFM (2.80m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 44.0dB | 5.76 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-04W-B49-P00FAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 112.0 CFM (3.14m³/min) | 0.329 in H2O (82.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB | 8.28 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-04W-B49-P50FAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 112.0 CFM (3.14m³/min) | 0.329 in H2O (82.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 47.0dB | 8.28 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-05W-B19-P00FAN AXIAL 119X32MM 24VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 56.1 CFM (1.57m³/min) | 0.088 in H2O (21.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB | 2.16 W | 1600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-05W-B19-P50FAN AXIAL 119X32MM 24VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 56.1 CFM (1.57m³/min) | 0.088 in H2O (21.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 2.16 W | 1600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-05W-B29-P00FAN AXIAL 119X32MM 24VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 82.2 CFM (2.30m³/min) | 0.168 in H2O (41.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB | 4.08 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-05W-B29-P50FAN AXIAL 119X32MM 24VDC WIRE |
0 |
|
Veri Sayfası |
4712KL | Box | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 82.2 CFM (2.30m³/min) | 0.168 in H2O (41.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB | 4.08 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
