DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9WPA0624P4G20160X25MM 24VDC IP68 -40C TACH PWM |
119 |
|
Veri Sayfası |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 53.7 CFM (1.50m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | - | 12000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | - | - |
|
15050VA-24N-ET-00FAN AXIAL 172.7X50.8MM 24VDC |
38 |
|
Veri Sayfası |
15050VA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 261.3 CFM (7.32m³/min) | 0.735 in H2O (183.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 60.0dB | 21.6 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

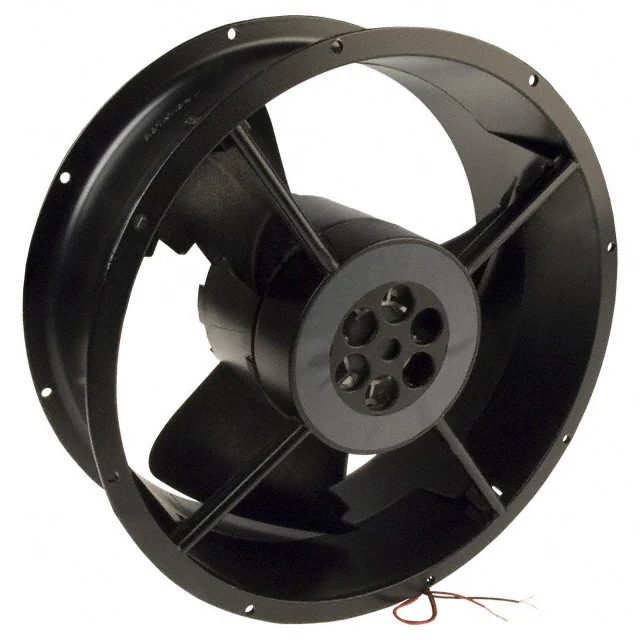

19031573AFAN AXIAL 254X88.9MM 24V CD24B3 |
571 |
|
Veri Sayfası |
Caravel | Box | Active | 24VDC | Round - 254mm Dia | 88.90mm | 550.0 CFM (15.40m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 49.1dB(A) | 29 W | 1650 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 4.4 lbs (2 kg) |
|

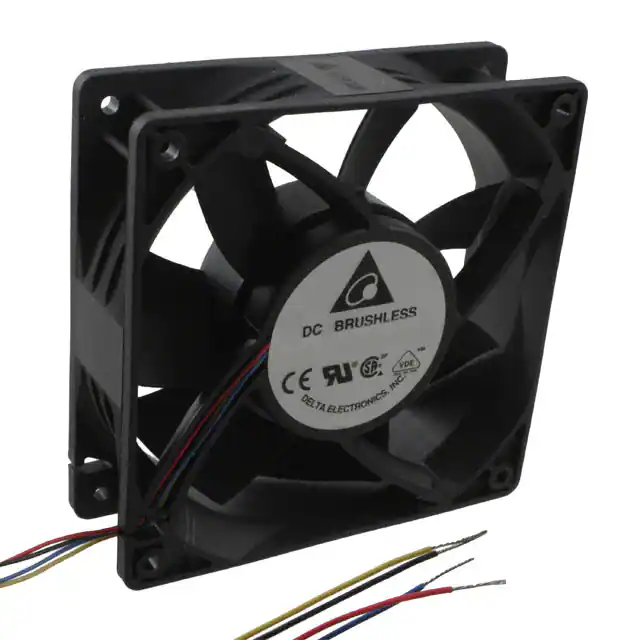

AFB1224EHE-EPFAN AXIAL 120X38MM 24VDC WIRE |
409 |
|
Veri Sayfası |
AFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.844 in H2O (210.2 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 20.4 W | 4600 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.772 lb (350.17 g) |
|
8214J/2H4FAN AXIAL 80X38MM 24VDC WIRE |
467 |
|
Veri Sayfası |
8200J | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 131.0 CFM (3.67m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 71.0dB(A) | 38 W | - | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.44 lb (199.58 g) |
|
15050VA-48N-EU-01FAN AXIAL 172X50.8MM 48VDC WIRE |
26 |
|
Veri Sayfası |
15050VA | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 261.3 CFM (7.32m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 60.0dB | 21.6 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|
|
XGC0384BX-1000U-A9HFAN 120X38MM 48VDC |
191 |
|
Veri Sayfası |
XGC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 301.7 CFM (8.45m³/min) | 5.580 in H2O (1389.9 Pa) | Ball | Tubeaxial | Auto Restart | 75.0dB(A) | 101 W | 11600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
19031856AFAN AXIAL 171.5X55MM 12V MT12B3 |
47 |
|
Veri Sayfası |
Maltese | Bulk | Active | 12VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 55.00mm | 300.0 CFM (8.40m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 57.1dB(A) | 36 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | 1.8 lbs (816.5 g) |
|
|
OD172AP-24HBFAN AXIAL 172X51MM 24VDC WIRE |
111 |
|
Veri Sayfası |
OD172AP | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 230.0 CFM (6.44m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 52.7dB(A) | 24 W | 3250 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
17000302AFAN BLOWER 50.8MM SPDD24K1 24VDC |
72 |
|
Veri Sayfası |
- | Bulk | Active | 24VDC | Square/Rounded - 161.8mm L x 161.8mm H | 50.80mm | 100.5 CFM (2.81m³/min) | - | Ball | Blower | Auto Restart, Locked Rotor Protection | 67.2dB(A) | 75.3 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
RER125-19/14NFAN IMP MTRZD 138X35MM 24VDC |
88 |
|
Veri Sayfası |
RER125N | Box | Active | 24VDC | Round - 138mm Dia | 35.00mm | 64.7 CFM (1.81m³/min) | - | Ball | Motorized Impellers | - | 47.0dB(A) | 4.5 W | 2650 RPM | 2 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | - | 0.705 lb (319.78 g) |
|
|
9LG0412P3G00140X28MM 12VDC TACH PWM |
65 |
|
Veri Sayfası |
San Ace 40L | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 32.9 CFM (0.921m³/min) | 7.150 in H2O (1780.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 22.8 W | 33500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
614J/2HFAN AXIAL 60X32MM 24VDC WIRE |
120 |
|
Veri Sayfası |
600J | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 32.00mm | 41.1 CFM (1.15m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 7.7 W | 11700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.22 lb (99.79 g) |
|
4114NUFAN AXIAL 119X38MM 24VDC WIRE |
67 |
|
Veri Sayfası |
4100NU | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 105.9 CFM (2.97m³/min) | - | Ball | Tubeaxial | - | 48.5dB(A) | 4.5 W | 3200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 167°F (-30 ~ 75°C) | UL | 0.86 lb (390.09 g) |
|

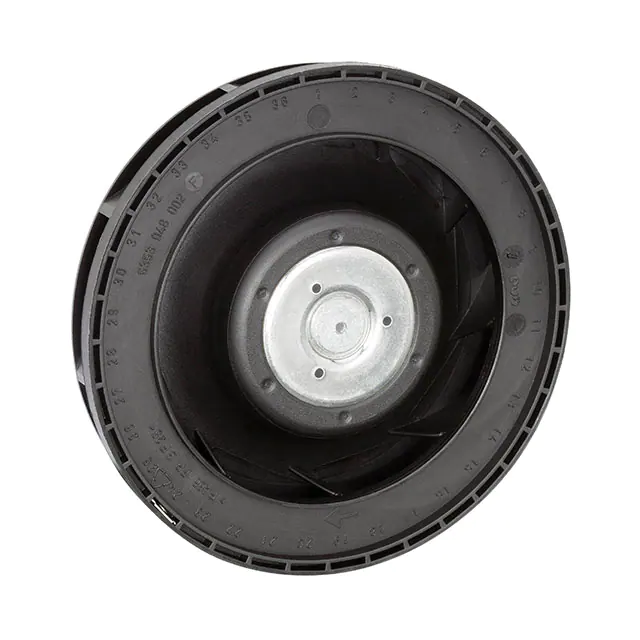

REF100-11/12/2FAN IMP MTRZD 100X25MM 12VDC |
471 |
|
Veri Sayfası |
REF100 | Box | Active | 12VDC | Round - 100mm Dia | 25.00mm | 50.6 CFM (1.42m³/min) | - | Ball | Motorized Impellers | Speed Sensor (Tach) | 66.0dB(A) | 7.5 W | 5400 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.35 lb (158.76 g) |
|
W2G115-AD15-13FAN AXIAL 127X38MM 12VDC TERM |
33 |
|
Veri Sayfası |
W2G115 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 118.0 CFM (3.30m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 4.5 W | 2800 RPM | 2 Terminals | - | - | CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
8315100143FAN AXIAL 120X38.15MM 12VDC WIRE |
65 |
|
Veri Sayfası |
AxiForce | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.15mm | 203.0 CFM (5.68m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 30 W | 6500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
4114NXHFAN AXIAL 119X38MM 24VDC WIRE |
106 |
|
Veri Sayfası |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 139.5 CFM (3.91m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 11 W | 4400 RPM | 2 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 0.86 lb (390.09 g) |
|

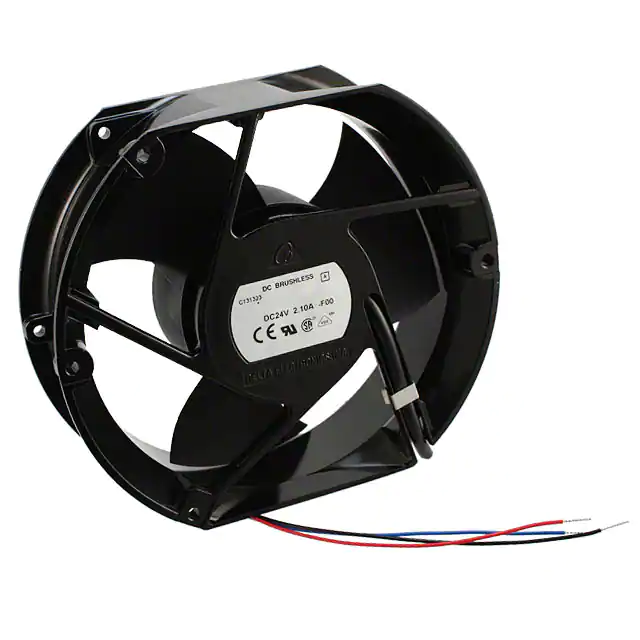

EFB1524SHG-F00FAN AXIAL 172X50.8MM 24VDC WIRE |
315 |
|
Veri Sayfası |
EFB | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 325.0 CFM (9.10m³/min) | 1.083 in H2O (269.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 63.0dB(A) | 28.08 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
|
REF100-11/14FAN IMP MTRZD 100X25MM 24VDC |
578 |
|
Veri Sayfası |
REF100 | Box | Active | 24VDC | Round - 100mm Dia | 25.00mm | 50.6 CFM (1.42m³/min) | - | Ball | Motorized Impellers | - | 66.0dB(A) | 7.5 W | 5400 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.353 lb (160.12 g) |
