DC Bürsüz Fanlar (BLDC)
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Voltaj - Nominal | Boyut / Ölçü | Genişlik | Hava Akışı | Statik Basınç | Yatak Türü | Fan Türü | Özellikler | Gürültü | Güç (Watt) | Devirler Dört Dakika (RPM) | Sonlandırma | Giriş Koruma | Çalışma Sıcaklığı | Onay Ajansı | Ağırlık |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9HV0848G1002FAN AXIAL 80X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 69.0dB(A) | 40.8 W | 14900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
|
9HV0848G10021FAN AXIAL 80X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 69.0dB(A) | 40.8 W | 14900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
|
11938MA-48P-EA-D0FAN AXIAL 119X38.4MM 48VDC WIRE |
0 |
|
Veri Sayfası |
11938MA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MA-12N-EA-D0FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
Veri Sayfası |
11938MA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 162.1 CFM (4.59m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Auto Restart | 56.5dB(A) | 17.5 W | 4200 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MA-12M-EA-D0FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
Veri Sayfası |
11938MA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 142.0 CFM (3.98m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart | 53.5dB(A) | 12 W | 3700 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MA-24L-EA-D0FAN AXIAL 119X38.4MM 24VDC WIRE |
0 |
|
Veri Sayfası |
11938MA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 122.2 CFM (3.46m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart | 49.5dB(A) | 8.4 W | 3200 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MA-24M-EA-D0FAN AXIAL 119X38.4MM 24VDC WIRE |
0 |
|
Veri Sayfası |
11938MA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 142.0 CFM (3.98m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart | 53.5dB(A) | 12.5 W | 3700 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
3312N/2NFAN AXIAL 92X32MM 12VDC WIRE |
0 |
|
- |
3300N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 47.1 CFM (1.32m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 1.8 W | 2650 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, EAC, UL, VDE | - |
|
|
3318N/2NDC TUBEAXIAL FAN |
0 |
|
- |
3300N | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 47.1 CFM (1.32m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.8 W | 2650 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
9GV1248J1D01FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 64.0dB(A) | 36 W | 6400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1248J101FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 36 W | - | 3 Wire Leads | - | - | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1248J1011FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 36 W | 6400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|

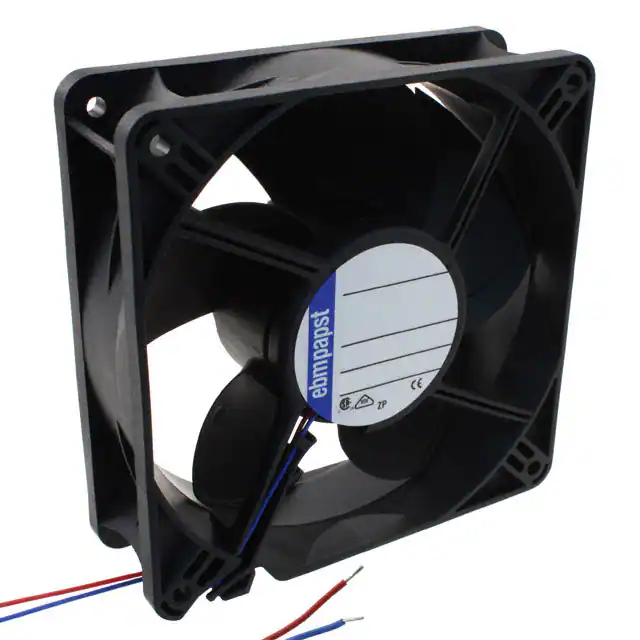

4412MLFAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Veri Sayfası |
4400 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | - | Ball | Tubeaxial | - | 46.0dB(A) | 3 W | 3000 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 176°F (-20 ~ 80°C) | - | 0.604 lb (273.97 g) |
|
|
4418LFAN AXIAL 119X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
4400 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 88.4 CFM (2.47m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.5 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|
CFM-A751BF-235-533-20FAN AXIAL 172X51.5MM 24VDC WIRE |
0 |
|
Veri Sayfası |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 252.9 CFM (7.08m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.3dB(A) | 24.24 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
19040215AFAN AXIAL 127X38.1MM 12V GL12S7Z |
0 |
|
Veri Sayfası |
Galaxy | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.10mm | 190.0 CFM (5.32m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.9dB(A) | 30 W | 4150 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
9HV0848G1D001FAN AXIAL 80X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 69.0dB(A) | 40.8 W | 14900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
|
9HV0848G1001FAN AXIAL 80X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
|
9HV0848G10011FAN AXIAL 80X38MM 48VDC WIRE |
0 |
|
Veri Sayfası |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|

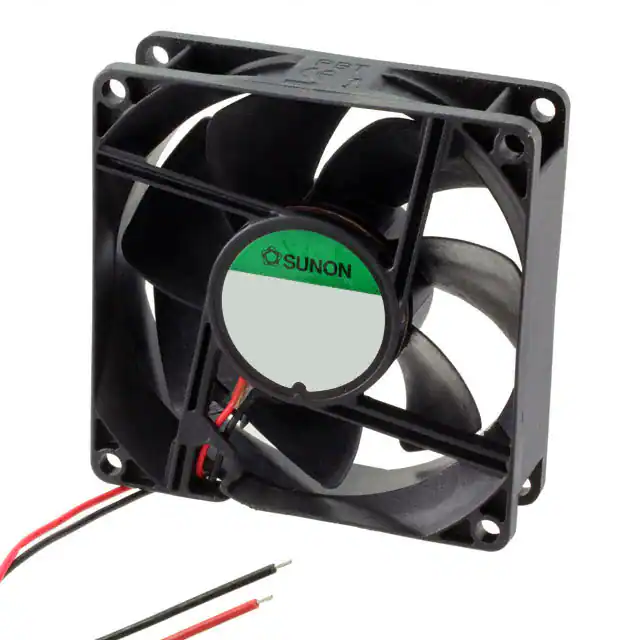

GE80254B1-000U-AE9FAN AXIAL 80X25MM 48VDC WIRE |
0 |
|
Veri Sayfası |
GE | Bulk | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart | 47.5dB(A) | 5.48 W | 4800 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.231 lb (104.78 g) |
