Ferrit Çekirdekleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Çekirdek Türü | Tedarikçi Cihaz Paketi | Malzeme | Çap | Endüktans Faktörü (Al) | Tolerans | Boşluk | Etkin Geçirgenlik (µe) | Başlangıç Geçirgenliği (µi) | Çekirdek Faktörü (ΣI/A) mm⁻¹ | Etkin Uzunluk (le) mm | Etkin Alan (Ae) mm² | Minimum Çekirdek Kesit Alanı (Amin) mm² | Etkin Manyetik Hacmi (Ve) mm³ | Bitiş | Yükseklik | Uzunluk | Genişlik |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

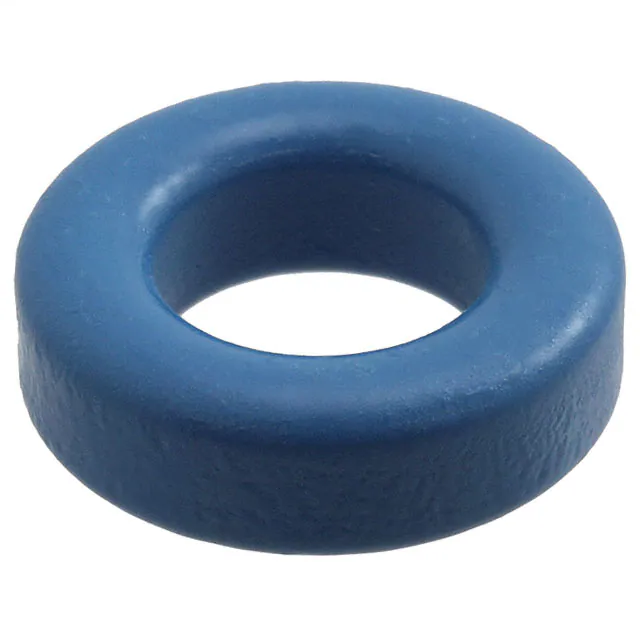

B64290L0743X087FERRITE CORE TOROID 1.19UH N87 |
7,081 |
|
Veri Sayfası |
TX16/9/5 | Box | Active | Toroid | - | N87 | 0.661" (16.80mm) | 1.19 µH | ±25% | Ungapped | - | 2200 | 2.33 | 36.75 | 15.78 | - | 580.0 | Epoxy | 0.215" (5.45mm) | - | - |
|

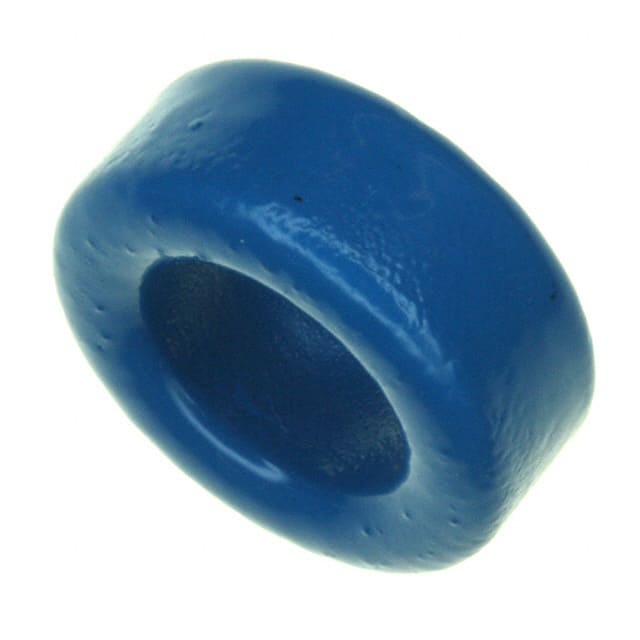

B64290L0045X087FERRITE CORE TOROID 1.42UH N87 |
1,311 |
|
Veri Sayfası |
TX16/9.6/6.3 | Bulk | Active | Toroid | - | N87 | 0.677" (17.20mm) | 1.42 µH | ±25% | Ungapped | - | 2200 | 1.95 | 38.52 | 19.73 | - | 760.0 | Epoxy | 0.287" (7.30mm) | - | - |
|

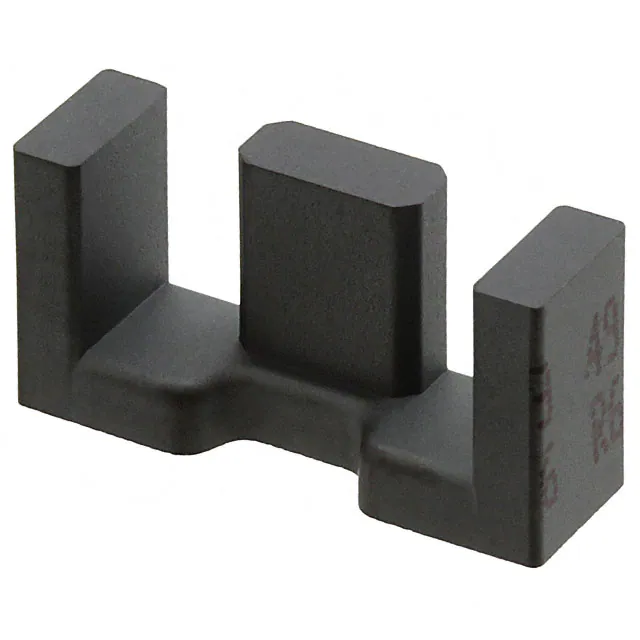

B66413G0000X149FERRITE CORE EFD N49 1PC |
1,468 |
|
Veri Sayfası |
EFD15/8/5 | Box | Active | EFD | EFD 15 x 8 x 5 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.183" (4.65mm) |
|

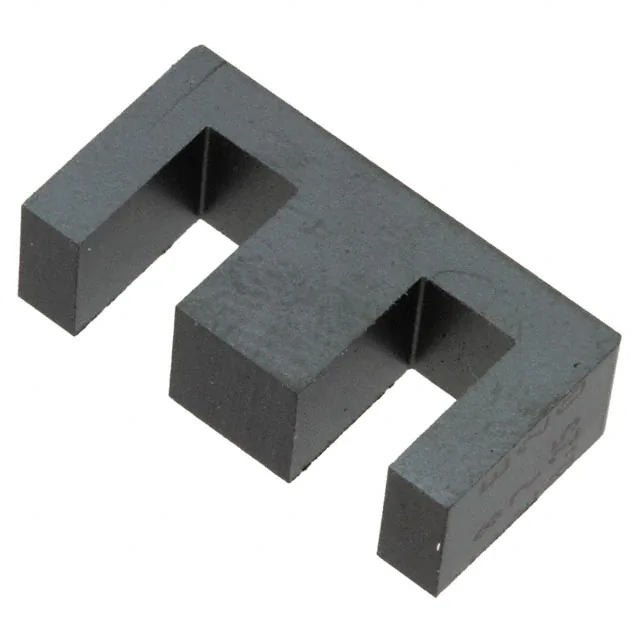

B66311G0250X127FERRITE CORE E N27 1PC |
2,105 |
|
Veri Sayfası |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|

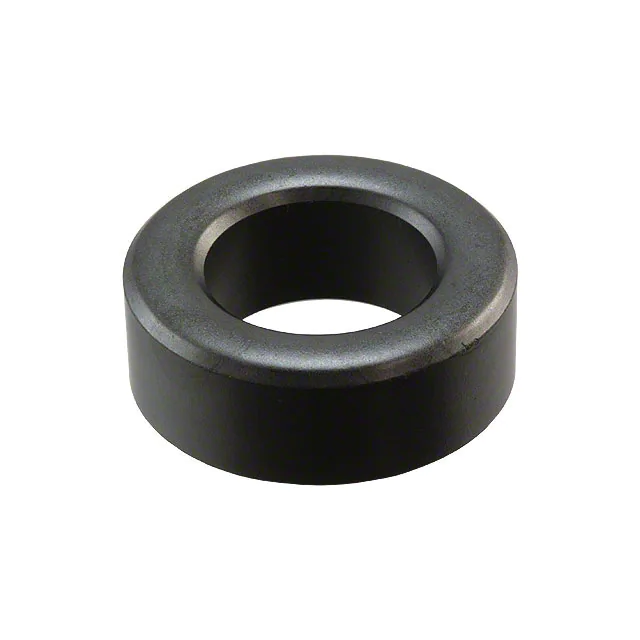

B64290A0783X010FERRITE CORE TOROID 450NH K10 |
5,244 |
|
Veri Sayfası |
T10/6/7 | Box | Active | Toroid | R 10 x 6 x 7 | K10 | 0.394" (10.00mm) | 450 nH | ±25% | Ungapped | - | 630 | 1.76 | 24.07 | 13.7 | - | 330.0 | Uncoated | 0.275" (7.00mm) | - | - |
|

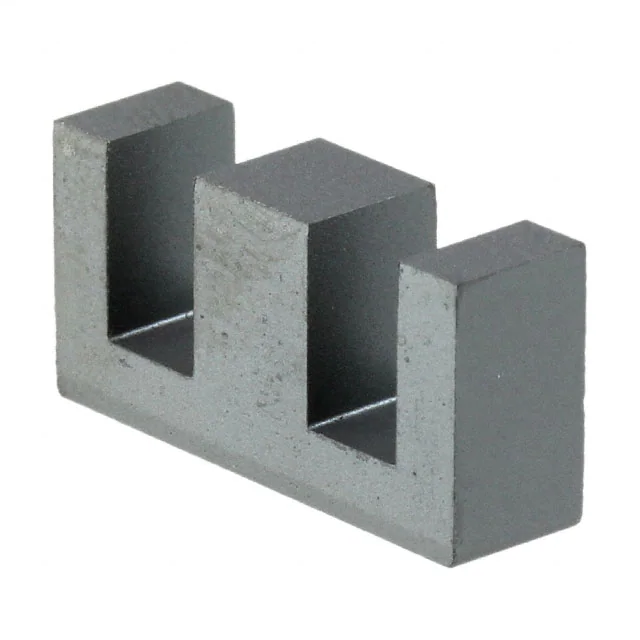

B66311G0000X187FERRITE CORE E N87 1PC |
4,900 |
|
Veri Sayfası |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|

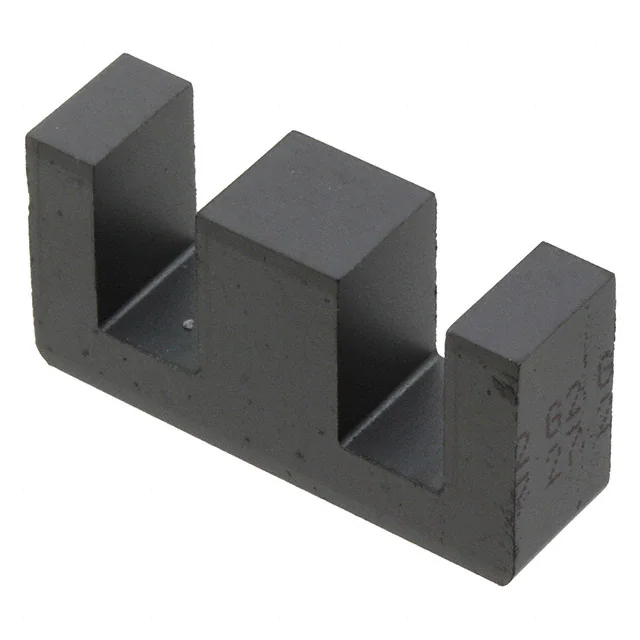

B66317G0000X127FERRITE CORE E N27 1PC |
3,999 |
|
Veri Sayfası |
E25/13/7 | Box | Active | E | E 25 x 13 x 7 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.504" (12.80mm) | 0.984" (25.00mm) | 0.295" (7.50mm) |
|
5943001121FERRITE CORE TOROID 480NH 43 |
5,236 |
|
Veri Sayfası |
- | Box | Active | Toroid | - | 43 | 0.530" (13.45mm) | 480 nH | -25%, +20% | Ungapped | - | 800 | 2.0842 | 31.2 | 15.0 | - | 466.0 | Plastic | 0.280" (7.11mm) | - | - |
|
5979001101FERRITE CORE TOROID 1.3UH 79 |
4,406 |
|
Veri Sayfası |
HF | Bag | Active | Toroid | - | 79 | 0.500" (12.70mm) | 1.3 µH | ±25% | Ungapped | - | 1400 | 2.08 | 31.2 | 15.0 | - | 470.0 | Uncoated | 0.250" (6.35mm) | - | - |
|
3078990891FERRITE CORE ROD 78 |
3,410 |
|
Veri Sayfası |
- | Bulk | Active | ROD | - | 78 | 0.197" (5.00mm) | - | - | Ungapped | 29.0 | 2300 | - | - | 19.6 | - | - | Uncoated | - | 1.378" (35.00mm) | - |
|

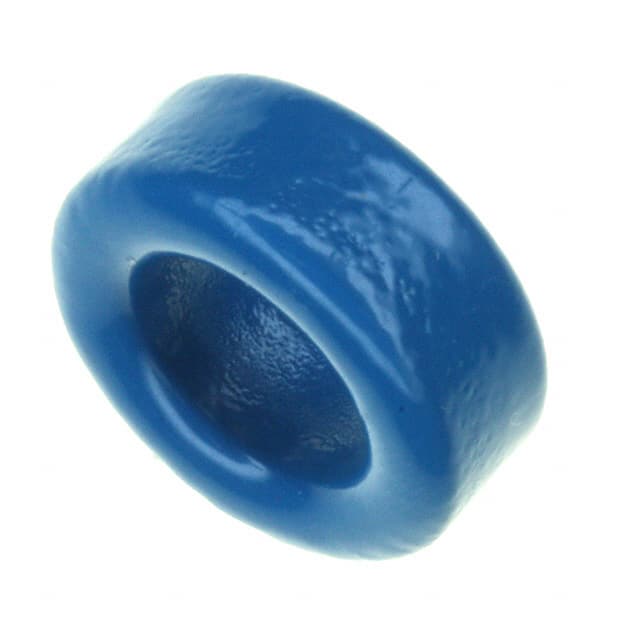

B64290L0045X830FERRITE CORE TOROID 2.77UH N30 |
1,610 |
|
Veri Sayfası |
TX16/9.6/6.3 | Bulk | Active | Toroid | - | N30 | 0.677" (17.20mm) | 2.77 µH | ±25% | Ungapped | - | 4300 | 1.95 | 38.52 | 19.73 | - | 760.0 | Epoxy | 0.287" (7.30mm) | - | - |
|
B66413G0000X187FERRITE CORE EFD N87 1PC |
7,302 |
|
Veri Sayfası |
EFD15/8/5 | Box | Active | EFD | EFD 15 x 8 x 5 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.183" (4.65mm) |
|

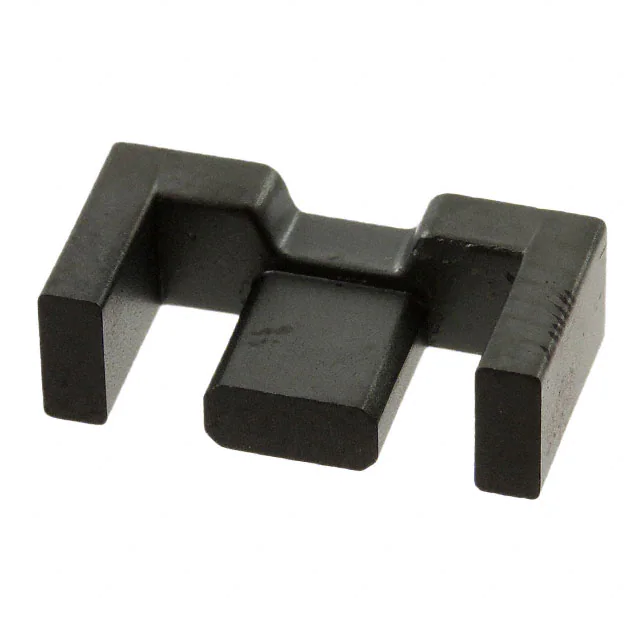

B66413U0160L187FERRITE CORE EFD N87 1PC |
2,252 |
|
Veri Sayfası |
EFD15/8/5 | Box | Active | EFD | EFD 15 x 8 x 5 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.183" (4.65mm) |
|
B62152A0007X030FERRITE CORE 2 HOLE 7.3UH N30 |
5,999 |
|
Veri Sayfası |
MHB2-7.25/4.2/6.2 | Box | Active | Multi-Hole (2) | - | N30 | - | 7.3 µH | ±30% | Ungapped | - | 4300 | 0.75 | 7.6 | 10.2 | - | 78.0 | Uncoated | 0.244" (6.20mm) | 0.285" (7.25mm) | 0.165" (4.20mm) |
|

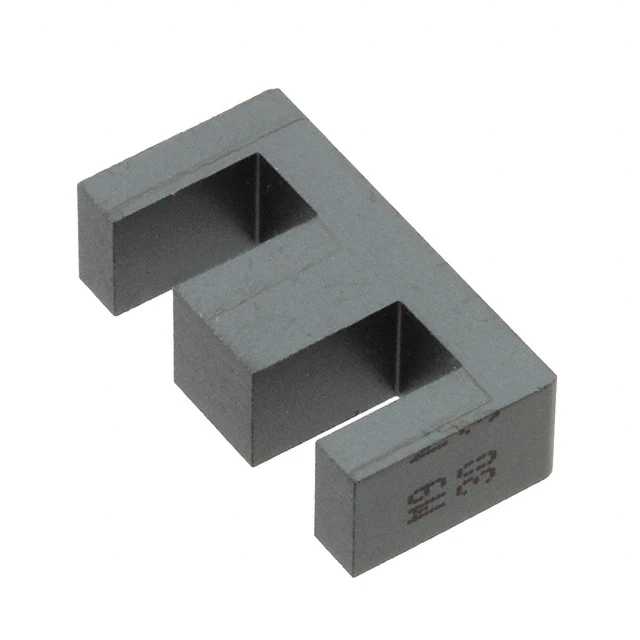

B66311G0000X130FERRITE CORE E N30 1PC |
2,576 |
|
Veri Sayfası |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N30 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|
PLT18/10/2/S-3C95FERRITE CORE PLT 3C95 |
5,941 |
|
Veri Sayfası |
- | Bulk | Active | PLT | PLT 18 x 10 x 2 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.094" (2.40mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
|
5980001101FERRITE CORE TOROID 1778NH 80 |
4,483 |
|
Veri Sayfası |
HF | Bag | Active | Toroid | - | 80 | 0.500" (12.70mm) | 335 nH | ±25% | Ungapped | - | 550 | 0.0212 | 31.0 | 14.7 | - | 455.0 | Uncoated | 0.250" (6.35mm) | - | - |
|
B66317G0000X187FERRITE CORE E N87 1PC |
1,402 |
|
Veri Sayfası |
E25/13/7 | Box | Active | E | E 25 x 13 x 7 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.504" (12.80mm) | 0.984" (25.00mm) | 0.295" (7.50mm) |
|
B66307G0100X187FERRITE CORE E N87 1PC |
14,856 |
|
Veri Sayfası |
E16/8/5 | Box | Active | E | E 16 x 8 x 5 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.323" (8.20mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
|
EFD20/10/7-3C96FERRITE CORE EFD 3C96 |
7,002 |
|
Veri Sayfası |
- | Bulk | Active | EFD | EFD 20 x 10 x 7 | 3C96 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
