Ferrit Çekirdekleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Çekirdek Türü | Tedarikçi Cihaz Paketi | Malzeme | Çap | Endüktans Faktörü (Al) | Tolerans | Boşluk | Etkin Geçirgenlik (µe) | Başlangıç Geçirgenliği (µi) | Çekirdek Faktörü (ΣI/A) mm⁻¹ | Etkin Uzunluk (le) mm | Etkin Alan (Ae) mm² | Minimum Çekirdek Kesit Alanı (Amin) mm² | Etkin Manyetik Hacmi (Ve) mm³ | Bitiş | Yükseklik | Uzunluk | Genişlik |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66285P0000X187FERRITE CORE I N87 1PC |
0 |
|
Veri Sayfası |
B66285 | Box | Obsolete | I | I 22 x 2.5 x 16 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098" (2.50mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
B66285P0000X192FERRITE CORE I 4UH N92 |
0 |
|
Veri Sayfası |
- | Box | Obsolete | I | I 22 x 2.5 x 16 | N92 | - | 4 µH | ±25% | Ungapped | 1050.0 | 1500 | 0.33 | 26.1 | 78.5 | 77.9 | 2050.0 | Uncoated | 0.098" (2.50mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
|
B66285P0000X197FERRITE CORE I 5.25UH N97 |
0 |
|
Veri Sayfası |
- | Box | Obsolete | I | I 22 x 2.5 x 16 | N97 | - | 5.25 µH | ±25% | Ungapped | 1390.0 | 2300 | 0.33 | 26.1 | 78.5 | 77.9 | 2050.0 | Uncoated | 0.098" (2.50mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
|
B66287P0000X149FERRITE CORE N49 |
0 |
|
Veri Sayfası |
- | Box | Obsolete | - | - | N49 | - | - | - | - | - | 1500 | - | - | - | - | - | Uncoated | - | 1.250" (31.75mm) | 0.801" (20.35mm) |
|
B66287P0000X187FERRITE CORE I N87 1PC |
0 |
|
Veri Sayfası |
B66287 | Box | Obsolete | I | I 32 x 3 x 20 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.124" (3.15mm) | 1.250" (31.75mm) | 0.801" (20.35mm) |
|
|
B66287P0000X192FERRITE CORE N92 |
0 |
|
Veri Sayfası |
- | Box | Obsolete | - | - | N92 | - | - | - | - | - | 1500 | - | - | - | - | - | Uncoated | - | 1.250" (31.75mm) | 0.801" (20.35mm) |
|
|
B66289P0000X149FERRITE CORE I 5.7UH N49 |
0 |
|
Veri Sayfası |
- | Box | Obsolete | I | I 38 x 4 x 25 | N49 | - | 5.7 µH | ±25% | Ungapped | 1000.0 | 1500 | 0.22 | 43.6 | 194.0 | 192.0 | 8440.0 | Uncoated | 0.150" (3.81mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|

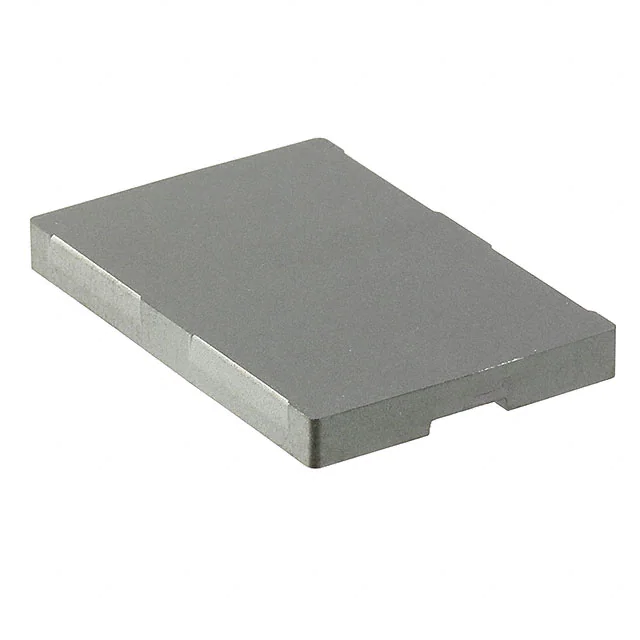

B66289P0000X187FERRITE CORE I N87 1PC |
0 |
|
Veri Sayfası |
B66289 | Box | Obsolete | I | I 38 x 4 x 25 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.150" (3.81mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
B66291P0000X149FERRITE CORE I N49 |
0 |
|
Veri Sayfası |
- | Box | Obsolete | I | I 43 x 4 x 28 | N49 | - | - | ±25% | Ungapped | 1030.0 | 1500 | 0.22 | 50.4 | 229.0 | 225.0 | 11500.0 | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
B66291P0000X187FERRITE CORE I N87 1PC |
0 |
|
Veri Sayfası |
B66291 | Box | Obsolete | I | I 43 x 4 x 28 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
|
B66293P0000X187FERRITE CORE I 8.4UH N87 |
0 |
|
Veri Sayfası |
- | Box | Obsolete | I | I 58 x 4 x 38 | N87 | - | 8.4 µH | ±25% | Ungapped | 1450.0 | 2200 | 0.22 | 67.7 | 310.0 | 308.0 | 21000.0 | Uncoated | 0.160" (4.06mm) | 2.299" (58.40mm) | 1.500" (38.10mm) |
|
|
B66295P0000X187FERRITE CORE N87 |
0 |
|
Veri Sayfası |
- | Box | Active | - | - | N87 | - | - | - | - | - | 2200 | 0.13 | 69.7 | 519.0 | 518.0 | 36200.0 | Uncoated | - | 2.520" (64.00mm) | 2.000" (50.80mm) |
|
|
B66310GX187FERRITE CORE |
0 |
|
Veri Sayfası |
B66310 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B66310G0000X192FERRITE CORE |
0 |
|
- |
E20/10/11 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B66311G0000X192FERRITE CORE E N92 |
0 |
|
Veri Sayfası |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N92 | - | - | - | - | - | 1500 | 1.44 | 46.3 | 32.1 | 31.9 | 1490.0 | Uncoated | 0.398" (10.10mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|
|
B66341GX27FERRITE CORE EC N27 |
0 |
|
Veri Sayfası |
B66341 | Box | Active | EC | EC 52 x 24 x 14 | N27 | - | - | - | - | - | 2000 | 0.58 | 105.0 | 180.0 | 141.0 | 18900.0 | Uncoated | 0.959" (24.35mm) | 2.055" (52.20mm) | 0.541" (13.75mm) |
|
|
B66358G0350X187FERRITE CORE ETD N87 |
0 |
|
Veri Sayfası |
ETD29/16/10 | Box | Active | ETD | ETD 29 x 16 x 10 | N87 | - | - | - | Gapped | - | 2200 | 0.93 | 70.4 | 76.0 | 71.0 | 5350.0 | Uncoated | 0.630" (16.00mm) | 1.205" (30.60mm) | 0.386" (9.80mm) |
|
B66370G0000X187FERRITE CORE E N87 1PC |
0 |
|
Veri Sayfası |
E34/14/9 | Box | Active | E | E 34 x 14 x 9 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.577" (14.65mm) | 1.362" (34.60mm) | 0.382" (9.70mm) |
|
B66393G0000X187FERRITE CORE E N87 |
0 |
|
Veri Sayfası |
E16/6/5 | Box | Active | E | E 16 x 6 x 5 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.228" (5.80mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
|
|
B66393G0000X197FERRITE CORE E 1.25UH N97 |
0 |
|
Veri Sayfası |
E16/6/5 | Box | Active | E | E 16 x 6 x 5 | N97 | - | 1.25 µH | ±25% | Ungapped | 1480.0 | 2300 | 1.49 | 28.6 | 19.2 | 17.6 | 549.0 | Uncoated | 0.228" (5.80mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
