FET'ler, MOSFET'ler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | FET Türü | Teknoloji | Buhradan Kaynak Voltajı (Vdss) | Akım - Sürekli Buhrada (Id) @ 25°C | Sürücü Voltajı (Maksimum Rds Açık, Minimum Rds Açık) | Rds Açık (Maksimum) @ Id, Vgs | Vgs(th) (Maksimum) @ Id | Kapı Şarjı (Qg) (Maksimum) @ Vgs | Vgs (Maksimum) | Giriş Kapasitesi (Ciss) (Maksimum) @ Vds | FET Özelliği | Güç Dağılımı (Maksimum) | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF1405ZSTRLPBFMOSFET N-CH 55V 75A D2PAK |
9,654 |
|
Veri Sayfası |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 4.9mOhm @ 75A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 4780 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
PSMN2R0-30BL,118MOSFET N-CH 30V 100A D2PAK |
2,631 |
|
Veri Sayfası |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Cut Tape (CT) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 4.5V, 10V | 2.1mOhm @ 25A, 10V | 2.15V @ 1mA | 117 nC @ 10 V | ±20V | 6810 pF @ 15 V | - | 211W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
PJD100N04-AU_L2_000A140V N-CHANNEL ENHANCEMENT MODE M |
6,194 |
|
Veri Sayfası |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 17A (Ta), 100A (Tc) | 4.5V, 10V | 3.8mOhm @ 20A, 10V | 2.5V @ 250µA | 50 nC @ 4.5 V | ±20V | 5214 pF @ 25 V | - | 2.4W (Ta), 83.3W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
IXTA90N15TMOSFET N-CH 150V 90A TO263 |
5,075 |
|
Veri Sayfası |
Trench | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 90A (Tc) | 10V | 20mOhm @ 45A, 10V | 4.5V @ 1mA | 80 nC @ 10 V | ±30V | 4100 pF @ 25 V | - | 455W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXTA62N25TMOSFET N-CH 250V 62A TO263 |
4,795 |
|
- |
Trench | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 62A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | TO-263AA |
|
|
IXTA72N20TMOSFET N-CH 200V 72A TO263 |
6,749 |
|
- |
Trench | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 72A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | TO-263AA |
|
IPP80N08S207AKSA1MOSFET N-CH 75V 80A TO220-3 |
9,362 |
|
Veri Sayfası |
OptiMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 10V | 7.4mOhm @ 80A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 4700 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
AOT095A60LMOSFET N-CH 600V 38A TO220 |
8,563 |
|
Veri Sayfası |
aMOS5™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 38A (Tj) | 10V | 95mOhm @ 19A, 10V | 3V @ 250µA | 78 nC @ 10 V | ±20V | 4010 pF @ 100 V | - | 378W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
AONV110A60N |
4,731 |
|
- |
aMOS5™ | 4-PowerTSFN | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.3A (Ta), 35A (Tc) | 10V | 110mOhm @ 19A, 10V | 3.6V @ 250µA | 72 nC @ 10 V | ±20V | 4140 pF @ 100 V | - | 8.3W (Ta), 357W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-DFN (8x8) |
|
IPD200N15N3GBTMA1MOSFET N-CH 150V 50A TO252-3 |
3,967 |
|
Veri Sayfası |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 50A (Tc) | 8V, 10V | 20mOhm @ 50A, 10V | 4V @ 90µA | 31 nC @ 10 V | ±20V | 1820 pF @ 75 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
|
IPD320N20N3GBTMA1MOSFET N-CH 200V 34A TO252-3 |
3,640 |
|
Veri Sayfası |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 34A (Tc) | 10V | 32mOhm @ 34A, 10V | 4V @ 90µA | 29 nC @ 10 V | ±20V | 2350 pF @ 100 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
|
IPD600N25N3GBTMA1MOSFET N-CH 250V 25A TO252-3 |
4,302 |
|
Veri Sayfası |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 25A (Tc) | 10V | 60mOhm @ 25A, 10V | 4V @ 90µA | 29 nC @ 10 V | ±20V | 2350 pF @ 100 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
SIR876DP-T1-GE3MOSFET N-CH 100V 40A PPAK SO-8 |
8,590 |
|
Veri Sayfası |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 4.5V, 10V | 10.8mOhm @ 20A, 10V | 2.8V @ 250µA | 48 nC @ 10 V | ±20V | 1640 pF @ 50 V | - | 5W (Ta), 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
FDMC3020DCMOSFET N-CH 30V 17A/40A DLCOOL33 |
4,044 |
|
Veri Sayfası |
Dual Cool™, PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 17A (Ta), 40A (Tc) | 4.5V, 10V | 6.25mOhm @ 12A, 10V | 3V @ 250µA | 23 nC @ 10 V | ±20V | 1385 pF @ 15 V | - | 3W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Dual Cool ™ 33 |
|

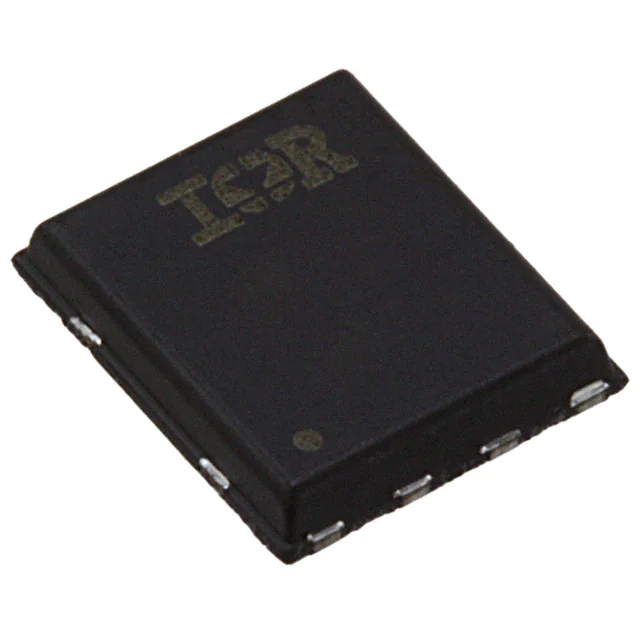

IRFH4201TRPBFMOSFET N-CH 25V 49A 8PQFN |
8,449 |
|
Veri Sayfası |
HEXFET® | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 49A (Ta) | 4.5V, 10V | 0.95mOhm @ 50A, 10V | 2.1V @ 150µA | 94 nC @ 10 V | ±20V | 6100 pF @ 13 V | - | 3.5W (Ta), 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
IRF2807ZMOSFET N-CH 75V 75A TO220AB |
4,113 |
|
Veri Sayfası |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tc) | 10V | 9.4mOhm @ 53A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 3270 pF @ 25 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
STB200N4F3MOSFET N-CH 40V 120A D2PAK |
9,220 |
|
Veri Sayfası |
STripFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 4mOhm @ 80A, 10V | 4V @ 250µA | 75 nC @ 10 V | ±20V | 5100 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IXTA05N100-TRLMOSFET N-CH 1000V 750MA TO263 |
7,761 |
|
- |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 750mA (Tc) | 10V | 17Ohm @ 375mA, 10V | 4.5V @ 250µA | 7.8 nC @ 10 V | ±30V | 260 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
IXTA05N100HV-TRLMOSFET N-CH 1000V 750MA TO263HV |
9,145 |
|
- |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 750mA (Tc) | 10V | 17Ohm @ 375mA, 10V | 4.5V @ 250µA | 7.8 nC @ 10 V | ±30V | 260 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263HV |
|
IRF5210LMOSFET P-CH 100V 40A TO262 |
4,445 |
|
Veri Sayfası |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 10V | 60mOhm @ 24A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 3.8W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
