Sabit Endüktörler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Malzeme - Çekirdek | Endüktans | Tolerans | Akım Derecesi (Amper) | Akım - Doygunluk (Isat) | Koruma | DC Direnci (DCR) | Q @ Frekans | Frekans - Kendi Rezonansı | Dereceler | Çalışma Sıcaklığı | Endüktans Frekansı - Test | Özellikler | Montaj Türü | Tedarikçi Cihaz Paketi | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S0603-15NH1DFIXED IND 15NH 700MA 200MOHM SMD |
0 |
|
Veri Sayfası |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 15 nH | ±3% | 700 mA | - | Unshielded | 200mOhm Max | 32 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-22NH1DFIXED IND 22NH 700MA 220MOHM SMD |
0 |
|
Veri Sayfası |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 22 nH | ±3% | 700 mA | - | Unshielded | 220mOhm Max | 35 @ 250MHz | 3GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-3N3H1DFIXED IND 3.3NH 700MA 100MOHM SM |
0 |
|
Veri Sayfası |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 3.3 nH | ±3% | 700 mA | - | Unshielded | 100mOhm Max | 18 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-5N6H1DFIXED IND 5.6NH 700MA 190MOHM SM |
0 |
|
Veri Sayfası |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 5.6 nH | ±3% | 700 mA | - | Unshielded | 190mOhm Max | 18 @ 250MHz | 5.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-8N2H1DFIXED IND 8.2NH 700MA 150MOHM SM |
0 |
|
Veri Sayfası |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 8.2 nH | ±3% | 700 mA | - | Unshielded | 150mOhm Max | 24 @ 250MHz | 4.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
050AT1003SMWIREWOUND TOROIDAL INDUCTOR |
0 |
|
Veri Sayfası |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 100 µH | ±10% | 3.14 A | 2.2A | Shielded | 55mOhm Max | - | 4MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.405" (10.28mm) |
|
CTS4F-6R8J6.8UH XIALSHIELDED INDUCTOR |
8 |
|
Veri Sayfası |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±5% | 560 mA | 560mA | Shielded | 750mOhm Max | 42 @ 7.9MHz | 62MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-221K220UH XIALSHIELDED INDUCTOR |
5 |
|
Veri Sayfası |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 220 µH | ±10% | 251 mA | 80mA | Shielded | 3.5Ohm Max | 65 @ 790kHz | 9.4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-R22K0.22UH XIALSHIELDED INDUCTOR |
5 |
|
Veri Sayfası |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±10% | 2.05 A | 2.05A | Shielded | 50mOhm Max | 50 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-4R7J4.7UH XIALSHIELDED INDUCTOR |
3 |
|
Veri Sayfası |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±5% | 710 mA | 710mA | Shielded | 470mOhm Max | 42 @ 7.9MHz | 72MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-220J22UH XIALSHIELDED INDUCTOR |
1 |
|
Veri Sayfası |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±5% | 565 mA | 220mA | Shielded | 740mOhm Max | 50 @ 2.5MHz | 38MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
PL8300NLTFIXED IND 38UH 9.5A 19.3MOHM SMD |
0 |
|
Veri Sayfası |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 38 µH | - | 9.5 A | - | Unshielded | 19.3mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|

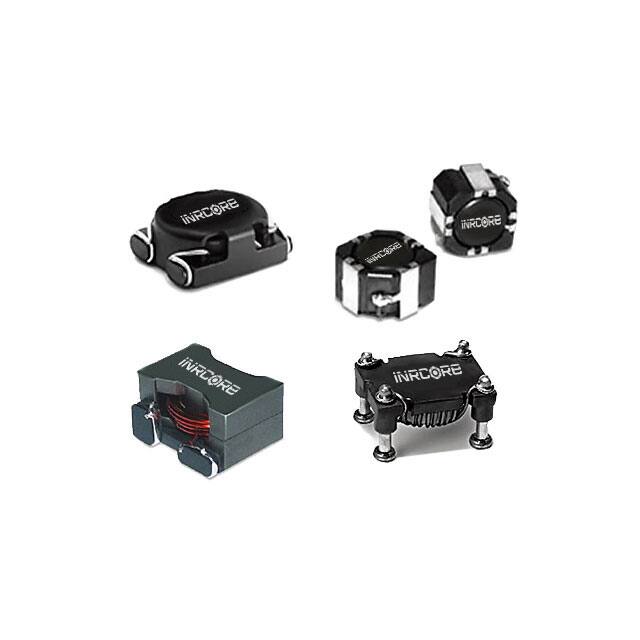

PL8300TFIXED IND 38UH 9.5A 19.3MOHM SMD |
0 |
|
- |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 38 µH | - | 9.5 A | - | Unshielded | 19.3mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8301NLTFIXED IND 28.7UH 12A 13.8 MOHM |
0 |
|
Veri Sayfası |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 28.7 µH | - | 12 A | - | Unshielded | 13.8mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8301TFIXED IND 28.7UH 12A 13.8 MOHM |
0 |
|
- |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 28.7 µH | - | 12 A | - | Unshielded | 13.8mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
IHDM1008BCEV5R6M20HIGH CURRENT THROUGH-HOLE INDUCT |
0 |
|
Veri Sayfası |
IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Wirewound | Iron Powder | 5.6 µH | ±20% | 45 A | 125A | Unshielded | 1.5mOhm Max | - | 34MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
PL9121TFIXED IND 120UH 1.3A 253MOHM SMD |
0 |
|
Veri Sayfası |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | 1.3 A | 1.3A | Shielded | 253mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
1944-15FFIXED IND 1.5UH 850MA 380MOHM TH |
0 |
|
Veri Sayfası |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±1% | 850 mA | - | Unshielded | 380mOhm Max | 45 @ 15MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-16FFIXED IND 1.8UH 720MA 540MOHM TH |
0 |
|
Veri Sayfası |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.8 µH | ±1% | 720 mA | - | Unshielded | 540mOhm Max | 45 @ 15MHz | 144MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-17FFIXED IND 2.2UH 610MA 750MOHM TH |
0 |
|
Veri Sayfası |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±1% | 610 mA | - | Unshielded | 750mOhm Max | 45 @ 15MHz | 132MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
