Endüstriyel, DIN Ray Güç Kaynakları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Giriş Türü | Çıkış Sayısı | AC Voltaj - Giriş | DC Voltaj - Giriş (Minimum) | DC Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Voltaj - Çıkış 5 | Voltaj - Çıkış 6 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Verimlilik | Çalışma Sıcaklığı | Özellikler | Boyut / Ölçü | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

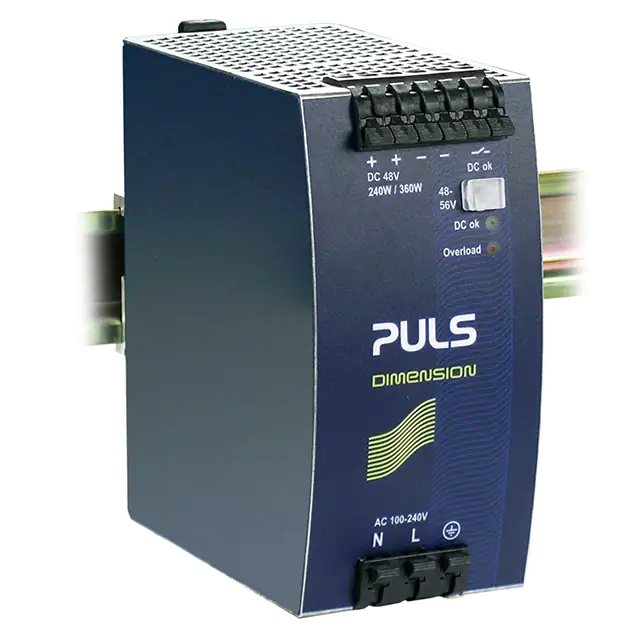

QS10.481AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Veri Sayfası |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 500 V | ITE (Commercial) | 92% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
S8VS-48024BAC/DC DIN RAIL SUPPLY 24V 480W |
1 |
|
Veri Sayfası |
S8VS (480W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 83% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 5.01" L x 5.91" W x 4.53" H (127.2mm x 150.1mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
S8VS-48024AAC/DC DIN RAIL SUPPLY 24V 480W |
1 |
|
Veri Sayfası |
S8VS (480W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 83% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 5.01" L x 5.91" W x 4.53" H (127.2mm x 150.1mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
DRA-60-24AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Veri Sayfası |
DRA-60 (60W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CB, CE, cURus, TUV | - |
|
DLP-04RAC/DC DIN RAIL SUPPLY 16V 3.8W |
3 |
|
Veri Sayfası |
DLP-04 (4W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 16V | - | - | - | - | - | 240mA | 3.8W | 3 kV | ITE (Commercial) | - | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.30" L x 1.38" W x 3.54" H (58.4mm x 35.0mm x 90.0mm) | CE, EAC, ENEC | - |
|
|
1285036PRIMARY-SWITCHED LED POWER SUPPL |
1 |
|
Veri Sayfası |
- | Box | Active | - | 1 | - | - | - | 24V | - | - | - | - | - | - | 90W | - | Laboratory | 92.5% | -10°C ~ 50°C | DC Input Capable, Universal Input | 1.69" L x 2.83" W x 3.54" H (43.0mm x 72.0mm x 90.0mm) | cULus, EAC | 61010-1 |
|
|
DRL-24V120W1ENAC/DC DIN RAIL 24V 120W - LYTE2 |
5 |
|
Veri Sayfası |
DRL (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial), Laboratory | 88.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.18" W x 4.60" H (123.7mm x 30.0mm x 116.8mm) | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|
DTJ1524S12-DDC/DC DIN RAIL SUPPLY 12V 15W |
0 |
|
Veri Sayfası |
DTJ15 (15W) | Box | Active | DC | 1 | - | 9V | 36V | 12V | - | - | - | - | - | 1.25A | 15W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off | 1.24" L x 1.00" W x 3.00" H (31.4mm x 25.4mm x 76.2mm) | CB, UL | 62368-1 |
|
|
DTJ1524S05-DDC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Veri Sayfası |
DTJ15 (15W) | Box | Active | DC | 1 | - | 9V | 36V | 5V | - | - | - | - | - | 3A | 15W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off | 1.24" L x 1.00" W x 3.00" H (31.4mm x 25.4mm x 76.2mm) | CB, UL | 62368-1 |
|
|
DRL-12V120W1ENAC/DC DIN RAIL 12V 120W - LYTE2 |
0 |
|
Veri Sayfası |
DRL (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 10A | 120W | 3 kV | ITE (Commercial), Laboratory | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.18" W x 4.60" H (123.7mm x 30.0mm x 116.8mm) | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|
DTJ2024S05-DDC/DC DIN RAIL SUPPLY 5V 20W |
0 |
|
Veri Sayfası |
DTJ20 (20W) | Box | Active | DC | 1 | - | 9V | 36V | 5V | - | - | - | - | - | 4A | 20W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off | 1.24" L x 1.00" W x 3.00" H (31.4mm x 25.4mm x 76.2mm) | CB, UL | 62368-1 |
|
|
DTJ2024S12-DDC/DC DIN RAIL SUPPLY 12V 20W |
0 |
|
Veri Sayfası |
DTJ20 (20W) | Box | Active | DC | 1 | - | 9V | 36V | 12V | - | - | - | - | - | 1.67A | 20W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off | 1.24" L x 1.00" W x 3.00" H (31.4mm x 25.4mm x 76.2mm) | CB, UL | 62368-1 |
|
|
DRL-12V240W1ENAC/DC DIN RAIL 12V 240W - LYTE2 |
0 |
|
Veri Sayfası |
DRL (240W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 20A | 240W | 3 kV | ITE (Commercial), Laboratory | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.57" W x 4.60" H (123.7mm x 39.9mm x 116.8mm) | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|

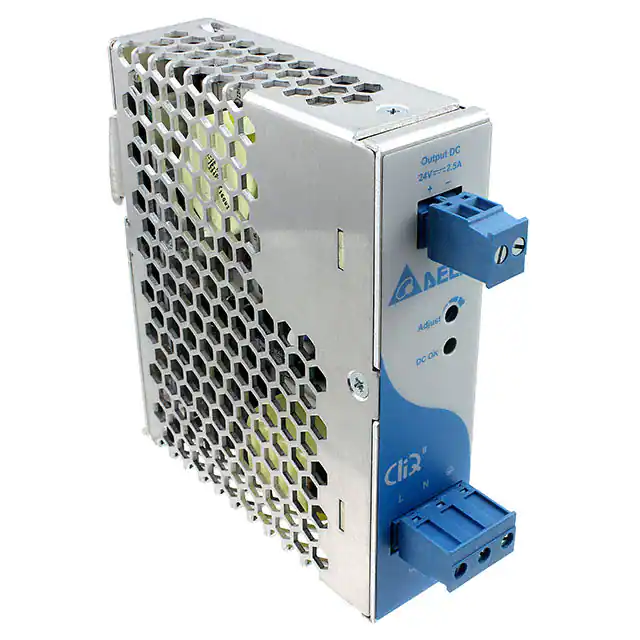

DRP024V060W1BNAC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Veri Sayfası |
CliQ II (60W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 90% | -20°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.92" L x 1.26" W x 4.76" H (125.0mm x 32.0mm x 121.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | F47, 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |
|
DDC3024S24DC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Veri Sayfası |
DDC30 (30W) | Box | Active | DC | 1 | - | 9V | 36V | 24V | - | - | - | - | - | 1.25A | 30W | - | ITE (Commercial) | 85% | -40°C ~ 70°C | - | 2.22" L x 1.38" W x 3.58" H (56.4mm x 35.0mm x 91.0mm) | CB | 62368-1 |
|
|
DRF-24V120W1GBAAC/DC DIN RAIL 24V 120W COATED |
0 |
|
Veri Sayfası |
DRF (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial), Laboratory | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.18" W x 4.60" H (123.7mm x 30.0mm x 116.8mm) | CB, CE, cURus, EAC, KC, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
DDRH-240-24250-1500VDC O/P +24V10A |
0 |
|
Veri Sayfası |
DDRH-240 (240W) | Box | Active | DC | 1 | - | 250V | 1500V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 90% | -40°C ~ 80°C (With Derating) | Adjustable Output | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) | CB, CE, EAC, UKCA | - |
|
859-804DC/DC DIN RAIL SUPPLY 24V |
0 |
|
Veri Sayfası |
- | Box | Active | DC | 1 | - | 8V | 16V | 24V | - | - | - | - | - | 250mA | - | - | ITE (Commercial) | 83% | -25°C ~ 55°C | IP20 | 3.58" L x 0.24" W x 2.03" H (91.0mm x 6.0mm x 51.4mm) | CE | - |
|
|
DRF-12V240W1GBAAC/DC DIN RAIL 12V 240W COATED |
0 |
|
Veri Sayfası |
DRF (240W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 20A | 240W | 4 kV | ITE (Commercial), Laboratory | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.57" W x 4.60" H (123.7mm x 39.9mm x 116.8mm) | CB, CE, cURus, EAC, KC, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
LIF240-10B48R2AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Veri Sayfası |
LIF240-10BxxR2 (240W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial), Medical | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.33" L x 1.61" W x 4.88" H (110.0mm x 41.0mm x 124.0mm) | - | 61010-1; 62368-1 |
