Endüstriyel, DIN Ray Güç Kaynakları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Giriş Türü | Çıkış Sayısı | AC Voltaj - Giriş | DC Voltaj - Giriş (Minimum) | DC Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Voltaj - Çıkış 5 | Voltaj - Çıkış 6 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Verimlilik | Çalışma Sıcaklığı | Özellikler | Boyut / Ölçü | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8FS-G15048CDAC/DC DIN RAIL SUPPLY 48V 158W |
1 |
|
Veri Sayfası |
S8FS-G (150W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 3.3A | 158W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.26" L x 1.54" W x 3.82" H (159.0mm x 39.2mm x 97.0mm) | CE, cURus, TUV, UL | - |
|
2466850000AC/DC DIN RAIL SUPPLY 24V 72W |
1 |
|
Veri Sayfası |
PRO TOP1 (72W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 24V | - | - | - | - | - | 3A | 72W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | - | 4.92" L x 1.38" W x 5.12" H (125.0mm x 35.0mm x 130.0mm) | - | - |
|
|
S8FS-G15015CDAC/DC DIN RAIL SUPPLY 15V 150W |
1 |
|
Veri Sayfası |
S8FS-G (150W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 10A | 150W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.26" L x 1.54" W x 3.82" H (159.0mm x 39.2mm x 97.0mm) | CE, cURus, TUV, UL | - |
|
DPX40-48WS05DC/DC DIN RAIL SUPPLY 5V 40W |
1 |
|
Veri Sayfası |
DPX (40W) | Bulk | Active | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 8A | 40W | - | ITE (Commercial) | 85% | -40°C ~ 85°C | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE | - |
|
|
DPX40-24WS15DC/DC DIN RAIL SUPPLY 15V 40W |
1 |
|
Veri Sayfası |
DPX (40W) | Bulk | Active | DC | 1 | - | 9.5V | 36V | 15V | - | - | - | - | - | 2.67A | 40W | - | ITE (Commercial) | 85% | -40°C ~ 85°C | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE | - |
|

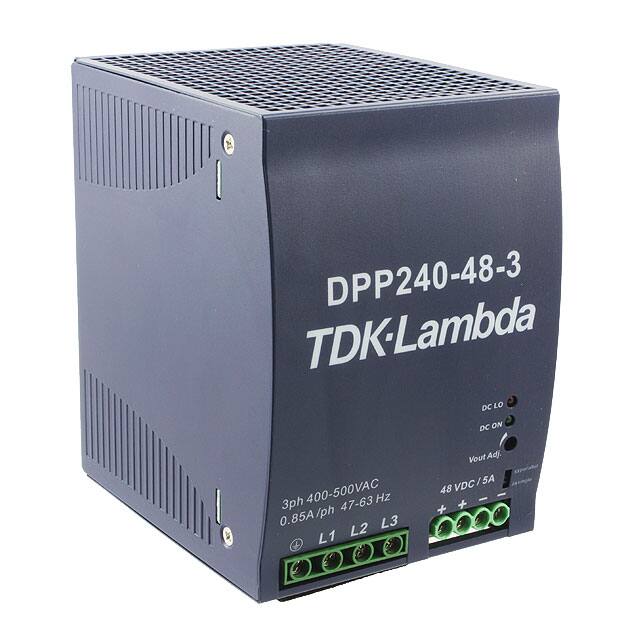

DPP240-48-3AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Veri Sayfası |
DPP (240W) | Bulk | Not For New Designs | AC | 1 | 340 ~ 575 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial) | 91% | -40°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing | 4.68" L x 3.50" W x 4.88" H (118.9mm x 88.9mm x 124.0mm) | CE | - |
|
|
DPX40-48WD15DC/DC DIN RAIL SUPPLY +/-15V 40W |
1 |
|
Veri Sayfası |
DPX (40W) | Bulk | Active | DC | 2 | - | 18V | 75V | 15V | -15V | - | - | - | - | 1.333A, 1.333A | 40W | - | ITE (Commercial) | 85% | -40°C ~ 85°C | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE | - |
|
|
DPX40-24WD12DC/DC DIN RAIL SUPPLY +/-12V 40W |
1 |
|
Veri Sayfası |
DPX (40W) | Bulk | Active | DC | 2 | - | 9.5V | 36V | 12V | -12V | - | - | - | - | 1.667A, 1.667A | 40W | - | ITE (Commercial) | 85% | -40°C ~ 85°C | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE | - |
|

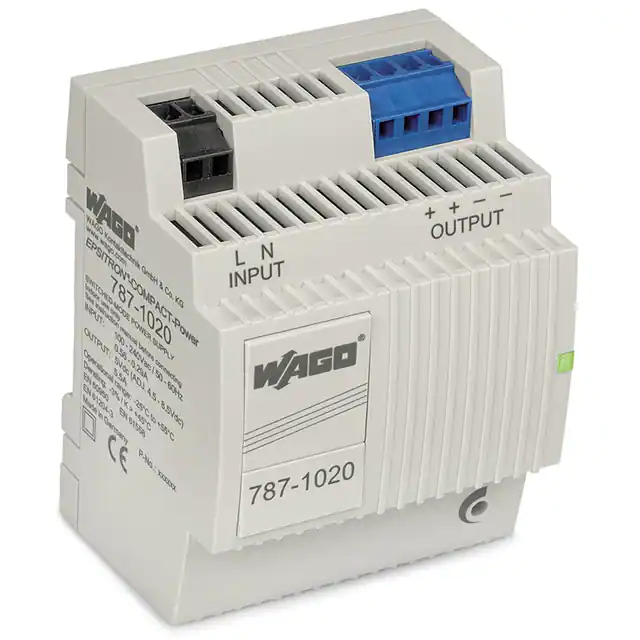

787-1020AC/DC DIN RAIL SUPPLY 5V 28W |
1 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 5V | - | - | - | - | - | 5.5A | 28W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 75% | -25°C ~ 60°C | Adjustable Output, IP20, PFC, Universal Input | 2.17" L x 2.84" W x 3.50" H (55.0mm x 72.0mm x 89.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|

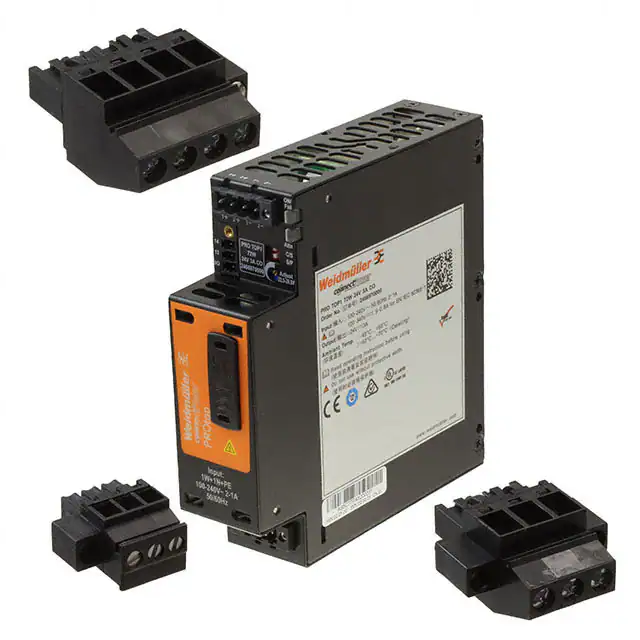

2466970000AC/DC DIN RAIL SUPPLY 24V 72W |
1 |
|
Veri Sayfası |
PRO TOP1 (72W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 24V | - | - | - | - | - | 3A | 72W | 4 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | 4.92" L x 1.38" W x 5.12" H (125.0mm x 35.0mm x 130.0mm) | - | - |
|
S8VK-X06012-EIPAC/DC DIN RAIL SUPPLY 12V 54W |
1 |
|
Veri Sayfası |
S8VK-X (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 350V | 12V | - | - | - | - | - | 4.5A | 54W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.39" L x 1.57" W x 3.54" H (86.0mm x 40.0mm x 90.0mm) | CE, cURus, EAC, KC, RCM, TUV, UL | - |
|
2466870000AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Veri Sayfası |
PRO TOP1 (120W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 48V | 410V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | - | 4.92" L x 1.38" W x 5.12" H (125.0mm x 35.0mm x 130.0mm) | - | - |
|

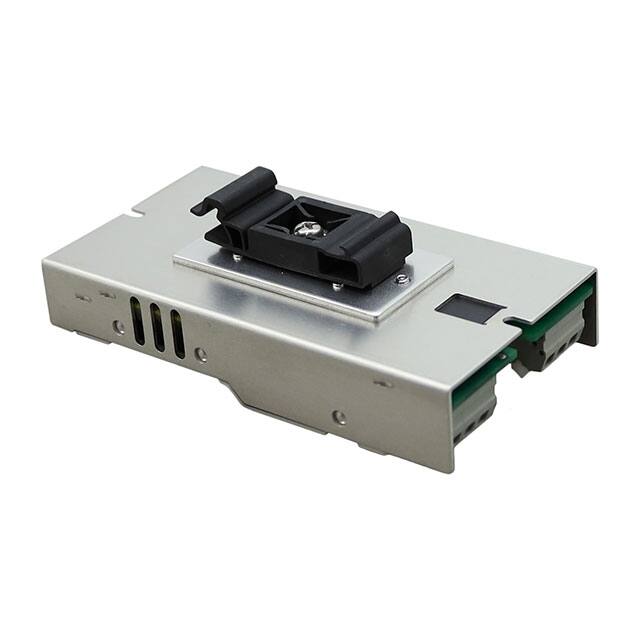

EC7BW18-72D15-EDRTDC/DC DIN RAIL SUPPLY +/-15V 20W |
1 |
|
Veri Sayfası |
EC7BW18 (20W) | Box | Active | DC | 2 | - | 10V | 160V | 15V | -15V | - | - | - | - | 667mA, 667mA | 20W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 100°C (With Derating) | Remote On/Off | 2.33" L x 1.43" W x 4.45" H (59.2mm x 36.4mm x 113.0mm) | CE | 50155; 62368-1 |
|

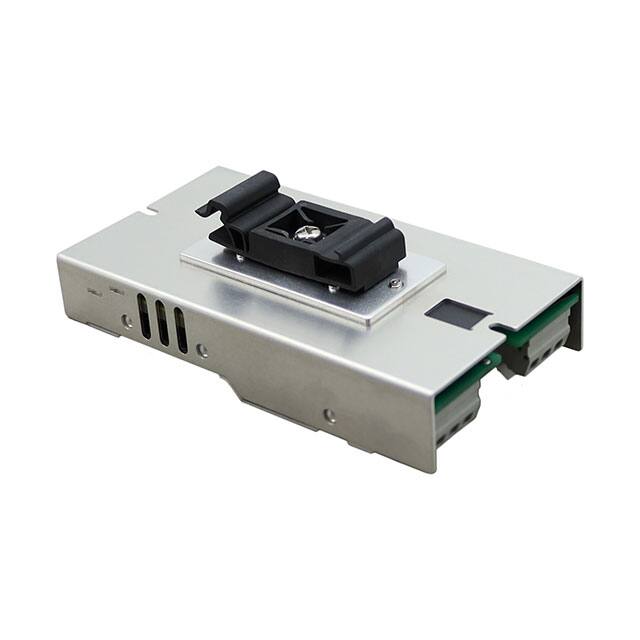

EC7BW18-72D12-EDRTDC/DC DIN RAIL SUPPLY +/-12V 20W |
1 |
|
Veri Sayfası |
EC7BW18 (20W) | Box | Active | DC | 2 | - | 10V | 160V | 12V | -12V | - | - | - | - | 833mA, 833mA | 20W | 3 kV | ITE (Commercial), Railway | 87% | -40°C ~ 100°C (With Derating) | Remote On/Off | 2.33" L x 1.43" W x 4.45" H (59.2mm x 36.4mm x 113.0mm) | CE | 50155; 62368-1 |
|
2466980000AC/DC DIN RAIL SUPPLY 24V 120W |
1 |
|
Veri Sayfası |
PRO TOP1 (120W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 48V | 410V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | 4.92" L x 1.38" W x 5.12" H (125.0mm x 35.0mm x 130.0mm) | - | - |
|

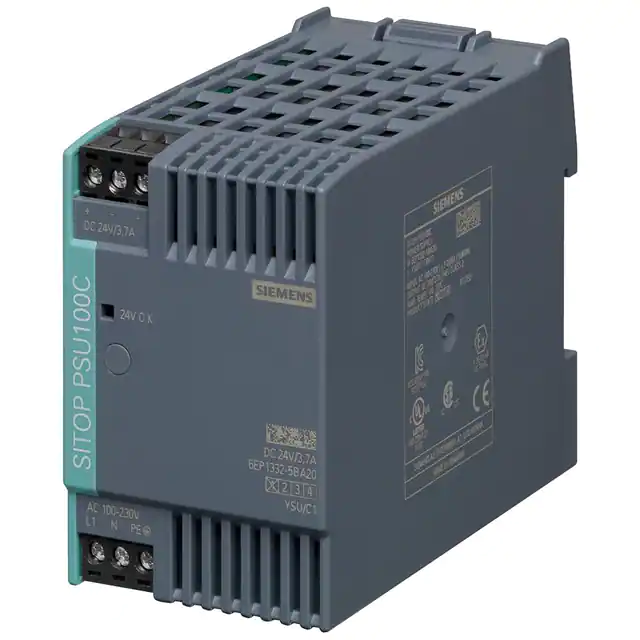

6EP13325BA20AC/DC DIN RAIL SUPPLY 24V 89W |
1 |
|
Veri Sayfası |
6EP1 | Bulk | Active | AC or DC | 1 | 100 ~ 230 VAC, 85 ~ 264 VAC | 110V | 300V | 24V | - | - | - | - | - | 3.7A | 89W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.94" L x 2.07" W x 3.15" H (100.0mm x 52.5mm x 80.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
|
2466910000AC/DC DIN RAIL SUPPLY 12V 120W |
1 |
|
Veri Sayfası |
PRO TOP1 (120W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 12V | - | - | - | - | - | 10A | 120W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | - | 4.92" L x 1.38" W x 5.12" H (125.0mm x 35.0mm x 130.0mm) | - | - |
|
2467020000AC/DC DIN RAIL SUPPLY 12V 120W |
1 |
|
Veri Sayfası |
PRO TOP1 (120W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 12V | - | - | - | - | - | 10A | 120W | 4 kV | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | 4.92" L x 1.38" W x 5.12" H (125.0mm x 35.0mm x 130.0mm) | - | - |
|
2838490000AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Veri Sayfası |
PRO BAS (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3.5 kV | Laboratory | 95% | -25°C ~ 70°C | PFC, Universal Input | 4.92" L x 4.92" W x 5.12" H (125.0mm x 125.0mm x 130.0mm) | - | 61010-1 |
|
1469610000AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Veri Sayfası |
PRO ECO (480W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 80V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 93% | -25°C ~ 70°C | Adjustable Output, IP20, Universal Input | 4.72" L x 3.94" W x 4.92" H (120.0mm x 100.0mm x 125.0mm) | CE, cULus, EAC, TUV | - |
