Endüstriyel, DIN Ray Güç Kaynakları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Giriş Türü | Çıkış Sayısı | AC Voltaj - Giriş | DC Voltaj - Giriş (Minimum) | DC Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Voltaj - Çıkış 5 | Voltaj - Çıkış 6 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Verimlilik | Çalışma Sıcaklığı | Özellikler | Boyut / Ölçü | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QT20.241-C1AC/DC DIN RAIL SUPPLY 24V 480W |
52 |
|
Veri Sayfası |
DIMENSION Q (480W) | Box | Active | AC | 1 | 323 ~ 552 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | ITE (Commercial) | 94.8% | -10°C ~ 70°C (With Derating) | Adjustable Output, Conformal Coating, Load Sharing, PFC | 5.00" L x 2.56" W x 4.88" H (127.0mm x 65.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, EN, IEC, SEMI, UL | Class I Div 2; F47; 508; 50155; 60950-1; 61010-2-201 |
|

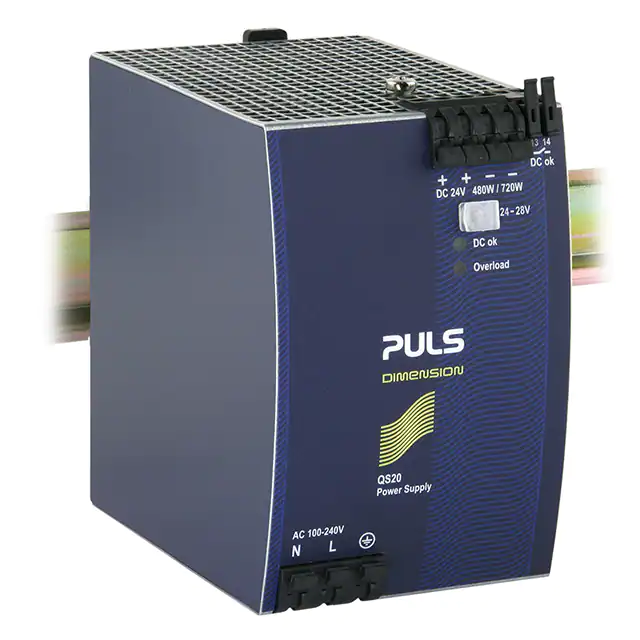

QS20.241-C1AC/DC DIN RAIL SUPPLY 24V 480W |
35 |
|
Veri Sayfası |
DIMENSION Q (480W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | ITE (Commercial) | 93.9% | -10°C ~ 70°C (With Derating) | Adjustable Output, Conformal Coating, Load Sharing, PFC | 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|

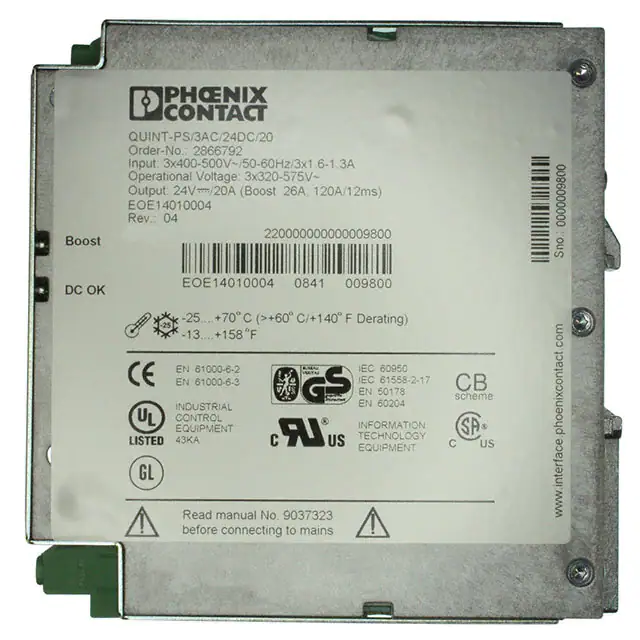

2866792AC/DC DIN RAIL SUPPLY 24V 480W |
38 |
|
Veri Sayfası |
Quint | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | 450V | 800V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 2.72" W x 5.12" H (125.0mm x 69.0mm x 130.0mm) | CB, cULus, cURus | - |
|

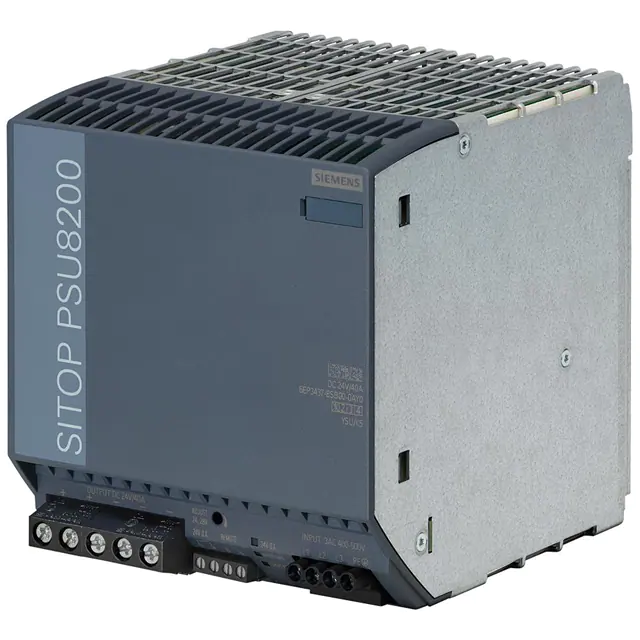

6EP34378SB000AY0AC/DC DIN RAIL SUPPLY 24V 960W |
141 |
|
Veri Sayfası |
6EP3 | Bulk | Active | AC | 1 | 400 ~ 500 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | - | Hazardous Locations, Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 5.91" L x 5.31" W x 5.71" H (150.0mm x 135.0mm x 145.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|

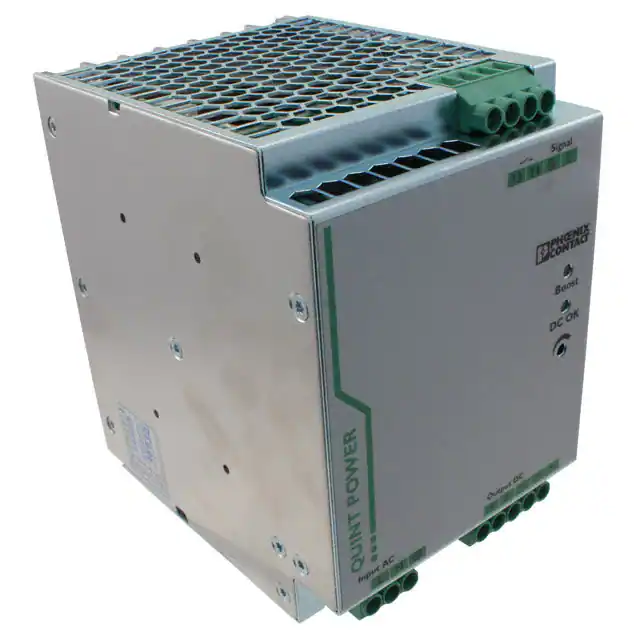

2866776AC/DC DIN RAIL SUPPLY 24V 480W |
275 |
|
Veri Sayfası |
Quint | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 3.54" W x 5.12" H (125.0mm x 90.0mm x 130.0mm) | CB, cULus, cURus | - |
|

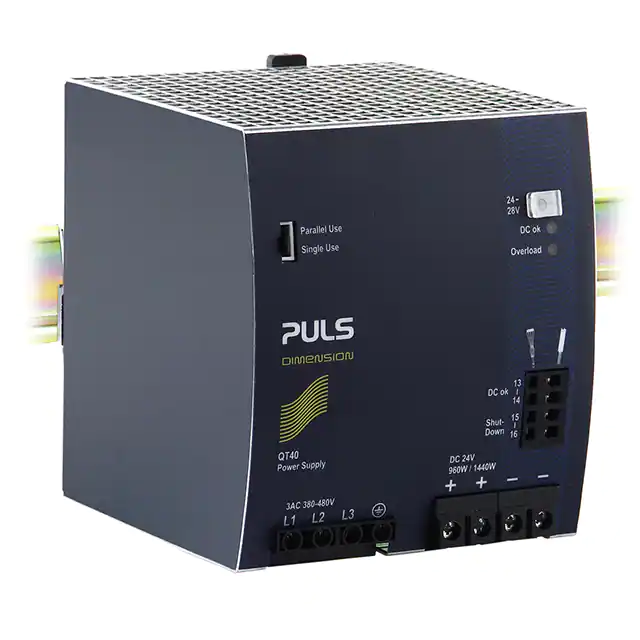

QT40.241AC/DC DIN RAIL SUPPLY 24V 960W |
63 |
|
Veri Sayfası |
DIMENSION Q (960W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 500 V | ITE (Commercial) | 95.3% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00" L x 4.33" W x 4.88" H (127.0mm x 110.0mm x 124.0mm) | ABS, DNV GL, EAC, IEC, SEMI, UL | F47; 508; 60950-1; 61010-2-201 |
|

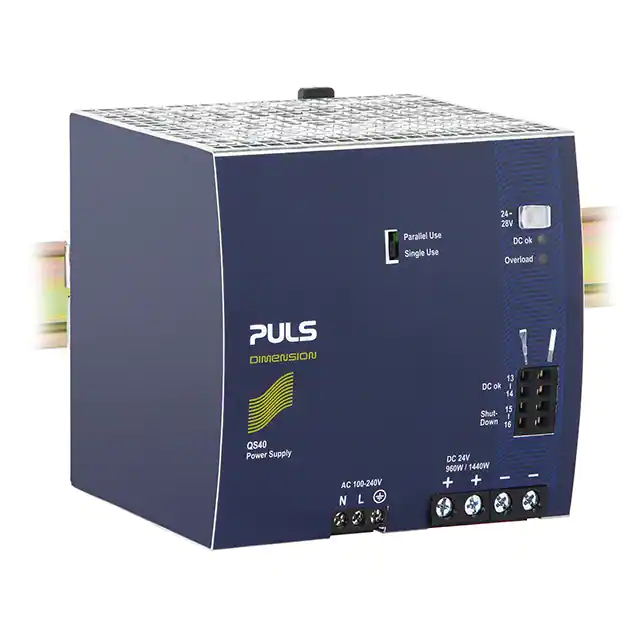

QS40.241AC/DC DIN RAIL SUPPLY 24V 960W |
65 |
|
Veri Sayfası |
DIMENSION Q (960W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | 500 V | Hazardous Locations, ITE (Commercial) | 94.6% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

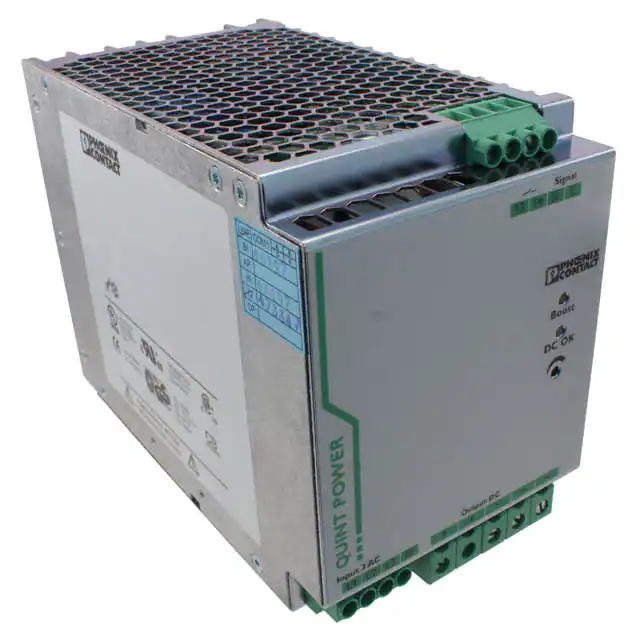

2866802AC/DC DIN RAIL SUPPLY 24V 960W |
65 |
|
Veri Sayfası |
Quint | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | 450V | 800V | 24V | - | - | - | - | - | 40A | 960W | 4 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 6.93" L x 3.78" W x 5.12" H (176.0mm x 96.0mm x 130.0mm) | CB, cULus, cURus | - |
|
|
QT40.361AC/DC DIN RAIL SUPPLY 36V 960W |
34 |
|
Veri Sayfası |
DIMENSION Q (960W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 36V | - | - | - | - | - | 26.7A | 960W | 500 V | ITE (Commercial) | 95.3% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00" L x 4.33" W x 4.88" H (127.0mm x 110.0mm x 124.0mm) | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|

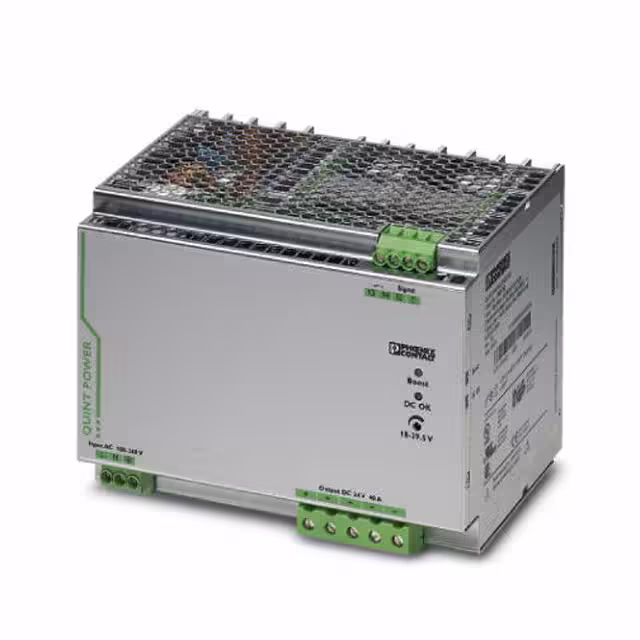

2866789AC/DC DIN RAIL SUPPLY 24V 960W |
78 |
|
Veri Sayfası |
Quint | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 7.09" W x 5.12" H (125.0mm x 180.0mm x 130.0mm) | CB, cULus, cURus | - |
|

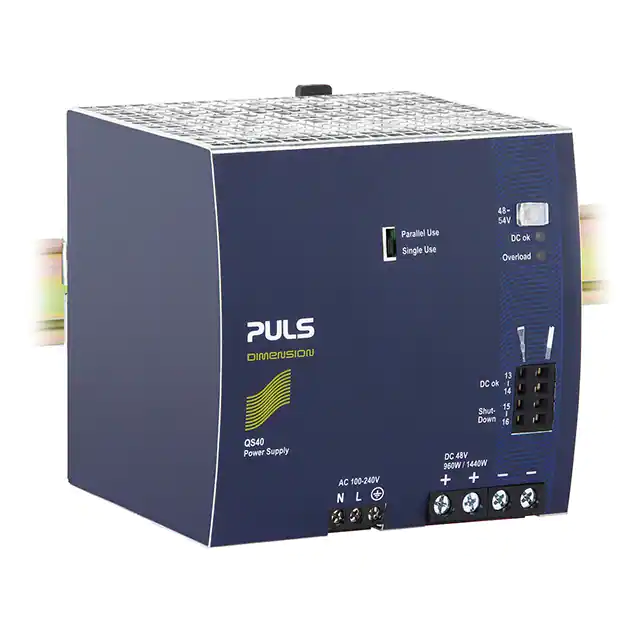

QS40.481AC/DC DIN RAIL SUPPLY 48V 960W |
49 |
|
Veri Sayfası |
DIMENSION Q (960W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 20A | 960W | 500 V | ITE (Commercial) | 95% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
56YSD15S-1201250AC/DC DIN RAIL SUPPLY 12V 15W |
354 |
|
Veri Sayfası |
56YSD15S (15W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 1.25A | 15W | - | Industrial, ITE (Commercial) | 85% | -20°C ~ 50°C | Adjustable Output, IP20 | 3.54" L x 0.71" W x 2.28" H (90.0mm x 18.0mm x 58.0mm) | BSMI, CE, EAC, TUV, UL | 508; 60950-1 |
|
|
56YSD15S-2400630AC/DC DIN RAIL SUPPLY 24V 15W |
186 |
|
Veri Sayfası |
56YSD15S (15W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 630mA | 15W | - | Industrial, ITE (Commercial) | 86% | -20°C ~ 50°C | Adjustable Output, IP20 | 3.54" L x 0.71" W x 2.28" H (90.0mm x 18.0mm x 58.0mm) | BSMI, CE, EAC, TUV, UL | 508; 60950-1 |
|
HDR-15-48AC/DC DIN RAIL SUPPLY 48V 15W |
155 |
|
Veri Sayfası |
HDR-15 (15W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 320mA | 15W | 4 kV | Industrial, ITE (Commercial) | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.15" L x 0.69" W x 3.54" H (54.5mm x 17.5mm x 90.0mm) | CB, CE, cULus, cURus, TUV | - |
|
MDR-10-24AC/DC DIN RAIL SUPPLY 24V 10W |
545 |
|
Veri Sayfası |
MDR-10 (10W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 420mA | 10W | 3 kV | Industrial, ITE (Commercial) | 84% | -20°C ~ 70°C (With Derating) | Universal Input | 3.94" L x 0.89" W x 3.54" H (100.0mm x 22.5mm x 90.0mm) | CB, CE, cURus, TUV | - |
|
|
HDR-15-15AC/DC DIN RAIL SUPPLY 15V 15W |
259 |
|
Veri Sayfası |
HDR-15 (15W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 1A | 15W | 4 kV | Industrial, ITE (Commercial) | 85.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.15" L x 0.69" W x 3.54" H (54.5mm x 17.5mm x 90.0mm) | CB, CE, cULus, cURus, TUV | - |
|
56YSD30S-1202500AC/DC DIN RAIL SUPPLY 12V 30W |
138 |
|
Veri Sayfası |
56YSD30S (30W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | - | Industrial, ITE (Commercial) | 88% | -20°C ~ 50°C | Adjustable Output, IP20 | 3.54" L x 1.38" W x 2.28" H (90.0mm x 35.0mm x 58.0mm) | BSMI, CE, EAC, TUV, UL | 508; 60950-1 |
|
DRC-5V10W1AZAC/DC DIN RAIL SUPPLY 5V 10W |
464 |
|
Veri Sayfası |
Chrome (10W) | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 1.5A | 10W | 3 kV | ITE (Commercial) | 78% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 3.58" L x 0.81" W x 2.19" H (91.0mm x 18.0mm x 55.6mm) | CB, CE, cULus, cURus, TUV | - |
|
DDR-15G-15DC/DC DIN RAIL SUPPLY 15V 15W |
154 |
|
Veri Sayfası |
DDR-15 (15W) | Box | Active | DC | 1 | - | 9V | 36V | 15V | - | - | - | - | - | 1A | 15W | 4 kV | ITE (Commercial) | 85% | -40°C ~ 85°C (With Derating) | Adjustable Output | 2.15" L x 0.69" W x 3.54" H (54.5mm x 17.5mm x 90.0mm) | CE, EAC | - |
|
|
DDR-15G-3.3DC/DC DIN RAIL SUPPLY 3.3V 12W |
146 |
|
Veri Sayfası |
DDR-15 (15W) | Box | Active | DC | 1 | - | 9V | 36V | 3.3V | - | - | - | - | - | 3.5A | 12W | 4 kV | ITE (Commercial) | 84% | -40°C ~ 85°C (With Derating) | Adjustable Output | 2.15" L x 0.69" W x 3.54" H (54.5mm x 17.5mm x 90.0mm) | CE, EAC | - |
