Endüstriyel, DIN Ray Güç Kaynakları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Giriş Türü | Çıkış Sayısı | AC Voltaj - Giriş | DC Voltaj - Giriş (Minimum) | DC Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Voltaj - Çıkış 5 | Voltaj - Çıkış 6 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Verimlilik | Çalışma Sıcaklığı | Özellikler | Boyut / Ölçü | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TBL 015-112AC/DC DIN RAIL SUPPLY 12V 15W |
7 |
|
Veri Sayfası |
TBL (15W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 1.25A | 15W | - | Industrial, ITE (Commercial) | 79% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.15" L x 1.04" W x 3.52" H (54.5mm x 26.4mm x 89.4mm) | CB, CE, CSAus, cULus, cURus, SIQ | - |
|
KHNA60F-24AC/DC DIN RAIL SUPPLY 24V 60W |
3 |
|
Veri Sayfası |
KHNA (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 91% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.77" L x 1.97" W x 4.88" H (121.2mm x 50.0mm x 124.0mm) | CE, cULus, cURus, TUV | 60950-1 |
|

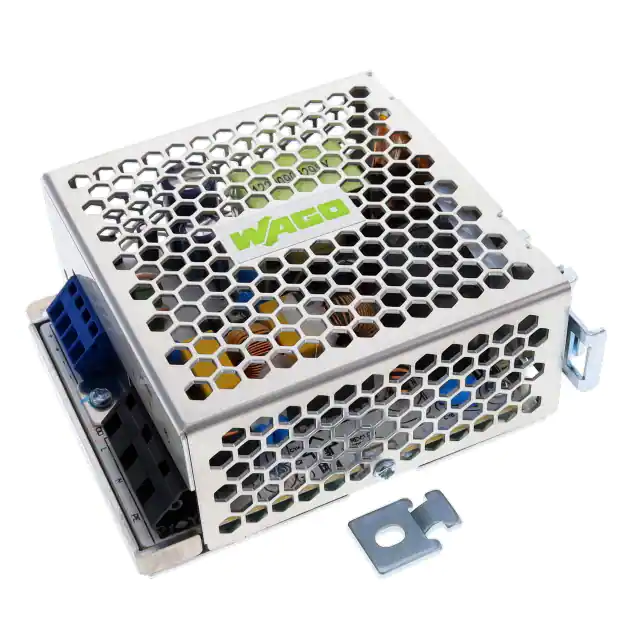

787-1712AC/DC DIN RAIL SUPPLY 24V 60W |
3 |
|
Veri Sayfası |
- | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 125V | 375V | 24V | - | - | - | - | - | 2.5A | 60W | 4.242 kV | Household Appliances, Industrial, ITE (Commercial) | 88% | -20°C ~ 60°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 3.90" L x 1.58" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | cURus, UL | 60335-1; 60950-1; UL 508 |
|
CSW65-24/DAC/DC DIN RAIL SUPPLY 24V 65W |
5 |
|
Veri Sayfası |
CSW65 (65W) | Box | Active | AC | 1 | 90 ~ 305 VAC | - | - | 24V | - | - | - | - | - | 2.71A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | 4.75" L x 2.50" W x 1.50" H (120.7mm x 63.5mm x 38.1mm) | CE | - |
|
|
CSW65-54/DAC/DC DIN RAIL SUPPLY 54V 65W |
4 |
|
Veri Sayfası |
CSW65 (65W) | Box | Active | AC | 1 | 90 ~ 305 VAC | - | - | 54V | - | - | - | - | - | 1.21A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | 4.75" L x 2.50" W x 1.50" H (120.7mm x 63.5mm x 38.1mm) | CE | - |
|
|
CSW65-12/DAC/DC DIN RAIL SUPPLY 12V 65W |
4 |
|
Veri Sayfası |
CSW65 (65W) | Box | Active | AC | 1 | 90 ~ 305 VAC | - | - | 12V | - | - | - | - | - | 5.42A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | 4.75" L x 2.50" W x 1.50" H (120.7mm x 63.5mm x 38.1mm) | CE | - |
|
|
CSW65-48/DAC/DC DIN RAIL SUPPLY 48V 65W |
4 |
|
Veri Sayfası |
CSW65 (65W) | Box | Active | AC | 1 | 90 ~ 305 VAC | - | - | 48V | - | - | - | - | - | 1.36A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | 4.75" L x 2.50" W x 1.50" H (120.7mm x 63.5mm x 38.1mm) | CE | - |
|
|
CSW65-18/DAC/DC DIN RAIL SUPPLY 18V 65W |
2 |
|
Veri Sayfası |
CSW65 (65W) | Box | Active | AC | 1 | 90 ~ 305 VAC | - | - | 18V | - | - | - | - | - | 3.62A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | 4.75" L x 2.50" W x 1.50" H (120.7mm x 63.5mm x 38.1mm) | CE | - |
|
|
CSW65-15/DAC/DC DIN RAIL SUPPLY 15V 65W |
2 |
|
Veri Sayfası |
CSW65 (65W) | Box | Active | AC | 1 | 90 ~ 305 VAC | - | - | 15V | - | - | - | - | - | 4.34A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | 4.75" L x 2.50" W x 1.50" H (120.7mm x 63.5mm x 38.1mm) | CE | - |
|
2868622AC/DC DIN RAIL SUPPLY 24V 18W |
13 |
|
Veri Sayfası |
Step | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 250V | 24V | - | - | - | - | - | 500mA | 18W | 4 kV | ITE (Commercial) | 81% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | 2.40" L x 0.71" W x 3.54" H (61.0mm x 18.0mm x 90.0mm) | cUL, UR | - |
|
PW-245AC/DC DIN RAIL SUPPLY 24V 60W |
2 |
|
Veri Sayfası |
PW-245 (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 85% | -40°C ~ 70°C | Adjustable Output, Universal Input | 2.28" L x 2.05" W x 3.65" H (58.0mm x 52.0mm x 92.7mm) | CE, UKCA, UL | 62368-1 |
|
PS5R-VB12AC/DC DIN RAIL SUPPLY 12V 16W |
7 |
|
Veri Sayfası |
PS5R-V (15W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 12V | - | - | - | - | - | 1.3A | 16W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 82% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.74" L x 0.89" W x 3.54" H (95.0mm x 22.5mm x 90.0mm) | CE, cULus, TUV | 62368-1 |
|
CFM60C360-DRAC/DC DIN RAIL SUPPLY 36V 60W |
20 |
|
Veri Sayfası |
CFM60CXXX-DR (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 36V | - | - | - | - | - | 1.67A | 60W | 4.242 kV | ITE (Commercial) | 88% | 0°C ~ 70°C (With Derating) | Universal Input | 4.33" L x 2.32" W x 1.62" H (110.0mm x 59.0mm x 41.2mm) | CE, cURus, FCC, TUV | - |
|
|
CFM60C033-DRAC/DC DIN RAIL SUPPLY 3.3V 26W |
19 |
|
Veri Sayfası |
CFM60CXXX-DR (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 3.3V | - | - | - | - | - | 8A | 26W | 4.242 kV | ITE (Commercial) | 72% | 0°C ~ 70°C (With Derating) | Universal Input | 4.33" L x 2.32" W x 1.62" H (110.0mm x 59.0mm x 41.2mm) | CE, cURus, FCC, TUV | - |
|
|
CFM60C300-DRAC/DC DIN RAIL SUPPLY 30V 60W |
8 |
|
Veri Sayfası |
CFM60CXXX-DR (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 30V | - | - | - | - | - | 2A | 60W | 4.242 kV | ITE (Commercial) | 86% | 0°C ~ 70°C (With Derating) | Universal Input | 4.33" L x 2.32" W x 1.62" H (110.0mm x 59.0mm x 41.2mm) | CE, cURus, FCC, TUV | - |
|
|
CFM60C150-DRAC/DC DIN RAIL SUPPLY 15V 60W |
6 |
|
Veri Sayfası |
CFM60CXXX-DR (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 4A | 60W | 4.242 kV | ITE (Commercial) | 86% | 0°C ~ 70°C (With Derating) | Universal Input | 4.33" L x 2.32" W x 1.62" H (110.0mm x 59.0mm x 41.2mm) | CE, cURus, FCC, TUV | - |
|
KLNA120F-48AC/DC DIN RAIL SUPPLY 48V 120W |
4 |
|
Veri Sayfası |
KLNA (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | 4.77" L x 1.46" W x 4.88" H (121.2mm x 37.1mm x 124.0mm) | FCC | 60950-1 |
|
89451003AC/DC DIN RAIL SUPPLY 24V 30W |
4 |
|
Veri Sayfası |
- | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 30W | 3 kV | Industrial, ITE (Commercial) | 90% | -20°C ~ 71°C (With Derating) | PFC, Universal Input | 2.19" L x 1.42" W x 3.58" H (55.6mm x 36.1mm x 90.9mm) | CE, CSA, UL | - |
|
787-1202AC/DC DIN RAIL SUPPLY 24V 31W |
22 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 125V | 375V | 24V | - | - | - | - | - | 1.3A | 31W | 4.242 kV | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 2.20" L x 2.13" W x 3.54" H (56.0mm x 54.0mm x 90.0mm) | cURus, UL | 60950-1; UL 508 |
|
TPC 030-112AC/DC DIN RAIL SUPPLY 12V 26W |
16 |
|
Veri Sayfası |
TPC (30W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 12V | - | - | - | - | - | 2.2A | 26W | - | Industrial, ITE (Commercial) | 84% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.80" L x 1.04" W x 3.54" H (96.5mm x 26.4mm x 89.9mm) | CB, CE, cCSAus, SIQ | - |
