Endüstriyel, DIN Ray Güç Kaynakları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Giriş Türü | Çıkış Sayısı | AC Voltaj - Giriş | DC Voltaj - Giriş (Minimum) | DC Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Voltaj - Çıkış 5 | Voltaj - Çıkış 6 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Verimlilik | Çalışma Sıcaklığı | Özellikler | Boyut / Ölçü | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
787-974AC/DC DIN RAIL SUPPLY 12V |
2 |
|
Veri Sayfası |
- | Box | Active | AC | 1 | 115 ~ 230 VAC | - | - | 12V | - | - | - | - | - | 3.3A | - | 4.2 kV | ITE (Commercial) | - | -25°C ~ 55°C | IP20 | 2.13" L x 4.96" W x 3.54" H (54.0mm x 126.0mm x 90.0mm) | CE, cURus, EAC, UL | - |
|
DRL-24V240W1ENAAC/DC DIN RAIL 24V 240W COATED |
12 |
|
Veri Sayfası |
DRL (240W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial), Laboratory | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.57" W x 4.60" H (123.7mm x 39.9mm x 116.8mm) | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
ISMDR-40-12DIN RAIL POWER SUPPLY, AC-DC, 40 |
6 |
|
Veri Sayfası |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 40W | - | - | - | -20°C ~ 70°C | - | - | CE | - |
|
|
ISMDR-40-24DIN RAIL POWER SUPPLY, AC-DC, 40 |
4 |
|
Veri Sayfası |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 1.66A | 40W | - | - | - | -20°C ~ 70°C | - | - | CE | - |
|
|
85132ECO-RAIL-2 POWER SUPPLY 1-PHASE, |
3 |
|
Veri Sayfası |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 85% | 0°C ~ 40°C | Adjustable Output, IP20, Universal Input | 3.31" L x 1.97" W x 4.92" H (84.0mm x 50.0mm x 125.0mm) | CE, cULus, cURus, UKCA | - |
|
|
ATC120W24VPOWER SUPPLY 120 WATT 24 VDC |
2 |
|
Veri Sayfası |
ATC | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 5A | 120W | - | Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Universal Input | 4.04" L x 1.69" W x 4.32" H (102.7mm x 43.0mm x 109.8mm) | CE, cULus | 62368-1; UL 508 |
|

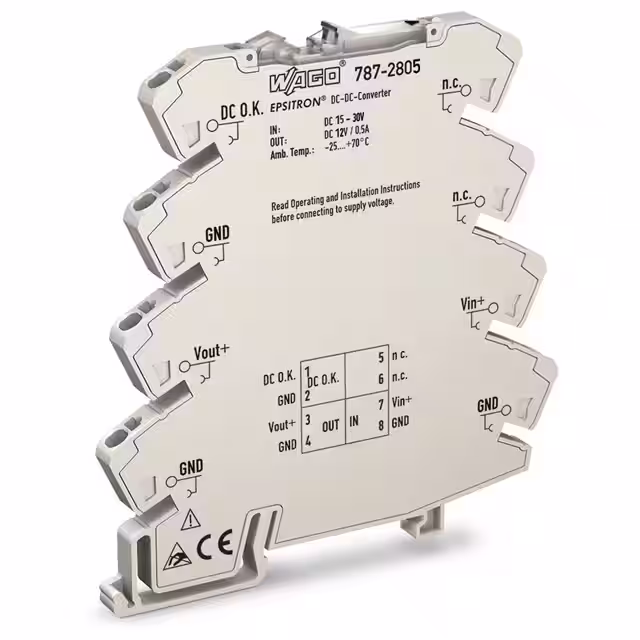

787-2805DC/DC DIN RAIL SUPPLY 12V 6W |
11 |
|
Veri Sayfası |
- | Bag | Active | DC | 1 | - | 15V | 30V | 12V | - | - | - | - | - | 500mA | 6W | - | ITE (Commercial), Laboratory | 90% | -25°C ~ 70°C | Adjustable Output, IP20 | 3.85" L x 0.24" W x 3.70" H (97.8mm x 6.0mm x 94.0mm) | CE, EAC, UL | 60950-1; 61010-1 |
|
TBLC 50-112AC/DC DIN RAIL SUPPLY 12V 48W |
3 |
|
Veri Sayfası |
TBLC (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4A | 48W | 3 kV | Household Appliances, Industrial, ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.15" L x 2.13" W x 3.52" H (54.6mm x 54.1mm x 89.4mm) | CB, CE, cULus, cURus, SIQ | - |
|
|
2486080000DIODE MODULE 40V 20A |
2 |
|
Veri Sayfası |
- | Bulk | Active | DC | 1 | - | - | 60V | 24V | - | - | - | - | - | 30A | - | - | ITE (Commercial) | 97% | -40°C ~ 70°C (With Derating) | IP20 | 4.92" L x 1.26" W x 4.92" H (125.0mm x 32.0mm x 125.0mm) | - | - |
|
|
DRF-24V120W1GTADIN-RAIL PS 120W / 24V (COATED) |
19 |
|
Veri Sayfası |
Force-GT (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 375V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial), Laboratory | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | 4.60" L x 1.18" W x 4.87" H (116.8mm x 30.0mm x 123.7mm) | CB, CCC, CE, cURus, EAC, KC, TUV, UKCA | 61010-1;60950-1;62368-1 |
|
|
DDRH-240-32250-1500VDC O/P +32V7.5A |
6 |
|
Veri Sayfası |
DDRH-240 (240W) | Box | Active | DC | 1 | - | 250V | 1500V | 32V | - | - | - | - | - | 7.5A | 240W | 4 kV | ITE (Commercial) | 90% | -40°C ~ 80°C (With Derating) | Adjustable Output | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) | CB, CE, EAC, UKCA | - |
|
|
DRF-48V120W1GBAAC/DC DIN RAIL 48V 120W COATED |
21 |
|
Veri Sayfası |
DRF (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 4 kV | ITE (Commercial), Laboratory | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.18" W x 4.60" H (123.7mm x 30.0mm x 116.8mm) | CB, CE, cURus, EAC, KC, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
56YSDN240-24010000AC/DC DIN RAIL SUPPLY 24V 240W |
15 |
|
Veri Sayfası |
56YSD240-xy (240W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.48" L x 4.92" W x 4.45" H (63.0mm x 125.0mm x 113.0mm) | - | 62368-1; UL 508 |
|
|
56YSDN240-48005000AC/DC DIN RAIL SUPPLY 48V 240W |
20 |
|
Veri Sayfası |
56YSD240-xy (240W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.48" L x 4.92" W x 4.45" H (63.0mm x 125.0mm x 113.0mm) | - | 62368-1; UL 508 |
|
|
2486070000PRO DM 10 |
3 |
|
Veri Sayfası |
- | Box | Active | DC | 1 | - | - | 60V | 23.3V | - | - | - | - | - | 20A | 466W | - | ITE (Commercial) | 97% | -40°C ~ 70°C | Adjustable Output | 4.92" L x 1.26" W x 4.92" H (125.0mm x 32.0mm x 125.0mm) | cULus, TUV | - |
|
TBLC 90-112AC/DC DIN RAIL SUPPLY 12V 90W |
6 |
|
Veri Sayfası |
TBLC (90W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 7.5A | 90W | 3 kV | Household Appliances, Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.15" L x 3.54" W x 3.52" H (54.6mm x 89.9mm x 89.4mm) | CB, CE, cULus, cURus, SIQ | - |
|
|
89452062PWR SUPPLY OUTPUT 24-28VDC 2.5A |
4 |
|
Veri Sayfası |
- | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 50°C (With Derating) | Universal Input | 4.04" L x 1.69" W x 4.32" H (102.7mm x 43.0mm x 109.8mm) | CE, UKCA, UL | 62368-1; UL 508 |
|
787-1721AC/DC DIN RAIL SUPPLY 12V 96W |
3 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 125V | 375V | 12V | - | - | - | - | - | 8A | 96W | 4.242 kV | Household Appliances, ITE (Commercial) | 85% | -20°C ~ 60°C | Adjustable Output, IP20, PFC, Universal Input | 3.90" L x 2.36" W x 5.12" H (99.0mm x 60.0mm x 130.0mm) | EAC | 60335-1; 62368-1 |
|
TSPC 050-112AC/DC DIN RAIL SUPPLY 12V 48W |
2 |
|
Veri Sayfası |
TSPC (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4A | 48W | - | Hazardous Locations, Industrial, ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.56" L x 1.45" W x 4.33" H (90.4mm x 36.8mm x 110.0mm) | CB, CE | - |
|
TBLC 75-112AC/DC DIN RAIL SUPPLY 12V 72W |
6 |
|
Veri Sayfası |
TBLC (75W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 6A | 72W | 3 kV | Household Appliances, Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.15" L x 2.83" W x 3.52" H (54.6mm x 71.9mm x 89.4mm) | CB, CE, cULus, cURus, SIQ | - |
