Endüstriyel, DIN Ray Güç Kaynakları
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Giriş Türü | Çıkış Sayısı | AC Voltaj - Giriş | DC Voltaj - Giriş (Minimum) | DC Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Voltaj - Çıkış 5 | Voltaj - Çıkış 6 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Verimlilik | Çalışma Sıcaklığı | Özellikler | Boyut / Ölçü | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABL8RPM24200AC/DC DIN RAIL SUPPLY 24V 480W |
2 |
|
Veri Sayfası |
- | Box | Active | AC | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | Industrial, ITE (Commercial) | 88% | -25°C ~ 60°C (With Derating) | Adjustable Output, IP10, IP20 | 5.71" L x 5.75" W x 4.92" H (145.0mm x 146.0mm x 125.0mm) | CE, cCSAus, CSA, EAC, EN, IEC, KC, RCM, UL | 60950-1; 62368-1; UL 508 |
|
XT40.362AC/DC DIN RAIL SUPPLY 36V 960W |
2 |
|
Veri Sayfası |
DIMENSION X (960W) | Box | Active | AC | 1 | 360 ~ 552 VAC (3 Phase) | - | - | 36V | - | - | - | - | - | 26A | 960W | 3 kV | ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20 | 6.18" L x 3.78" W x 4.88" H (157.0mm x 96.0mm x 124.0mm) | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
2467120000PRO TOP3 960W 24V 40A |
2 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 40A | 1152W | 3.5 kV | ITE (Commercial) | 95.3% | -25°C ~ 70°C | Adjustable Output, PFC | 6.89" L x 3.50" W x 5.12" H (175.0mm x 89.0mm x 130.0mm) | cULus, EAC | 60950-1 |
|
CP20.245-R2AC/DC DIN RAIL SUPPLY 24V 480W |
2 |
|
Veri Sayfası |
CP | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Hazardous Locations, ITE (Commercial), Laboratory | 95.2% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.00" L x 1.89" W x 4.88" H (127.0mm x 48.0mm x 124.0mm) | CB, CE, cULus | ATEX; IECEx; 60950-1; 61010-1; 62368-1 |
|
|
2467180000PRO TOP3 960W 48V 20A CO |
3 |
|
Veri Sayfası |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 45 ~ 56V | - | - | - | - | - | 20A | 1120W | 3.5 kV | ITE (Commercial) | 95.3% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | 6.89" L x 3.50" W x 5.12" H (175.0mm x 89.0mm x 130.0mm) | cULus, TUV | 60950-1 |
|

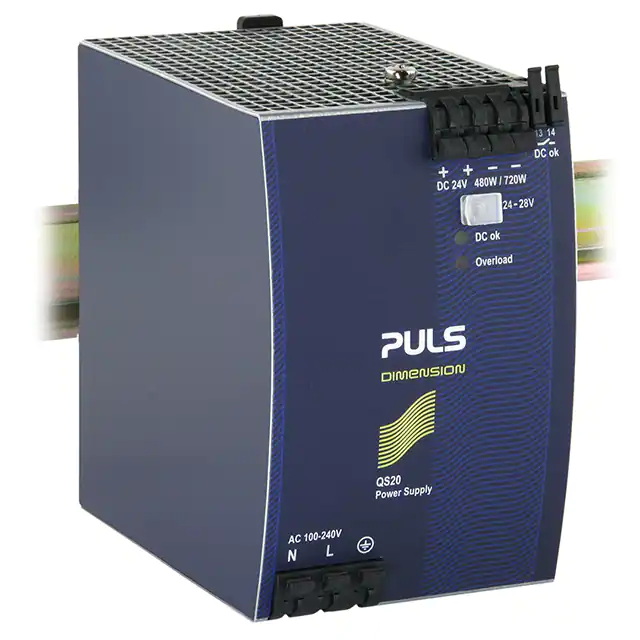

QS20.241-A1AC/DC DIN RAIL SUPPLY 24V 480W |
6 |
|
Veri Sayfası |
DIMENSION Q (480W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | Hazardous Locations, ITE (Commercial) | 93.9% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|
ABL8WPS24400AC/DC DIN RAIL SUPPLY 24V 960W |
2 |
|
Veri Sayfası |
- | Box | Active | AC | 1 | 380 ~ 500 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | 4 kV | Industrial, ITE (Commercial) | 92% | -25°C ~ 60°C (With Derating) | Adjustable Output, IP20, PFC | 6.30" L x 6.54" W x 5.63" H (160.0mm x 166.0mm x 143.0mm) | CCSAus, CE, CSA, EAC, ENC, IEC, RCM, UL | 60950-1; 62368-1; UL 508 |
|

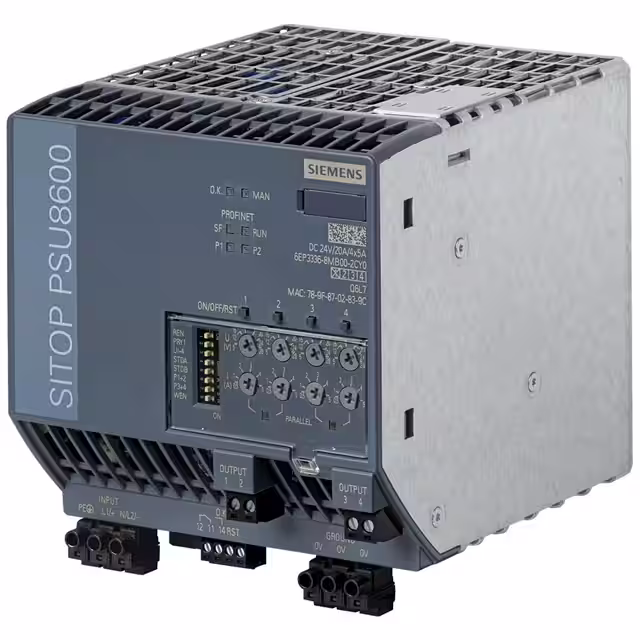

6EP33368MB002CY0AC/DC DIN RAIL SUPPLY QUAD 24V |
3 |
|
Veri Sayfası |
6EP3 | Box | Active | AC or DC | 4 | 85 ~ 275 VAC | 93V | 275V | 24V | 24V | 24V | 24V | - | - | 5A, 5A, 5A, 5A | - | - | Industrial, ITE (Commercial) | 92% | -25°C ~ 60°C | Adjustable Output, IP20 | 5.91" L x 4.92" W x 4.92" H (150.0mm x 125.0mm x 125.0mm) | cCSAus, CE, CSA, cULus, EAC, UL | 60950-1; UL 508 |
|
BP4660-9RGDC/DC DIN RAIL SUPPLY QUAD 24V |
20 |
|
Veri Sayfası |
Melcher P (90 ~ 192W) | Bulk | Active | DC | 4 | - | 16V | 36V | 24V | 24V | 24V | 24V | - | - | - | - | - | ITE (Commercial), Railway | 88% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.46" L x 4.37" W x 0.78" H (164.0mm x 111.0mm x 19.8mm) | cCSAus, CE, NEMKO | 60950-1 |
|
|
CP2320-9RGDC/DC DIN RAIL SUPPLY 4X12V |
20 |
|
Veri Sayfası |
Melcher P (90 ~ 192W) | Bulk | Active | DC | 4 | - | 33.6V | 75V | 12V | 12V | 12V | 12V | - | - | - | - | - | ITE (Commercial), Railway | 88.5% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.46" L x 4.37" W x 0.78" H (164.0mm x 111.0mm x 19.8mm) | cCSAus, CE, NEMKO | 60950-1 |
|
LI15-20B12PR2AC/DC DIN RAIL SUPPLY 12V 15W |
31 |
|
Veri Sayfası |
LI15-20BxxPR2 (15W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 1.25A | 15W | 4 kV | Household Appliances, ITE (Commercial) | 85% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.28" L x 0.69" W x 3.54" H (58.0mm x 17.5mm x 90.0mm) | CE, EN, UKCA | 60335-1; 62368-1 |
|
|
LI15-20B05PR2AC/DC DIN RAIL SUPPLY 5V 12W |
27 |
|
Veri Sayfası |
LI15-20BxxPR2 (15W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 2.4A | 12W | 4 kV | Household Appliances, ITE (Commercial) | 80% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.28" L x 0.69" W x 3.54" H (58.0mm x 17.5mm x 90.0mm) | CE, EN, UKCA | 60335-1; 62368-1 |
|
|
LI15-20B24PR2AC/DC DIN RAIL SUPPLY 24V 15W |
19 |
|
Veri Sayfası |
LI15-20BxxPR2 (15W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 630mA | 15W | 4 kV | Household Appliances, ITE (Commercial) | 86% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.28" L x 0.69" W x 3.54" H (58.0mm x 17.5mm x 90.0mm) | CE, EN, UKCA | 60335-1; 62368-1 |
|
|
LI15-20B15PR2AC/DC DIN RAIL SUPPLY 15V 15W |
11 |
|
Veri Sayfası |
LI15-20BxxPR2 (15W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 1A | 15W | 4 kV | Household Appliances, ITE (Commercial) | 85.5% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.28" L x 0.69" W x 3.54" H (58.0mm x 17.5mm x 90.0mm) | CE, EN, UKCA | 60335-1; 62368-1 |
|
|
LI15-20B48PR2AC/DC DIN RAIL SUPPLY 48V 15W |
7 |
|
Veri Sayfası |
LI15-20BxxPR2 (15W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 320mA | 15W | 4 kV | Household Appliances, ITE (Commercial) | 87% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.28" L x 0.69" W x 3.54" H (58.0mm x 17.5mm x 90.0mm) | CE, EN, UKCA | 60335-1; 62368-1 |
|
LI30-20B48PR2AC/DC DIN RAIL SUPPLY 48V 36W |
74 |
|
Veri Sayfası |
LI30-20BxxPR2 (30W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 750mA | 36W | 4 kV | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | 2.28" L x 1.38" W x 3.65" H (58.0mm x 35.0mm x 92.7mm) | CB, CE, cURus | 62368-1 |
|
|
LI30-20B15PR2AC/DC DIN RAIL SUPPLY 15V 30W |
49 |
|
Veri Sayfası |
LI30-20BxxPR2 (30W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 2A | 30W | 4 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | 2.28" L x 1.38" W x 3.65" H (58.0mm x 35.0mm x 92.7mm) | CB, CE, cURus | 62368-1 |
|
PSK-3D-9-DINAC/DC DIN RAIL SUPPLY 9V 3W |
7 |
|
Veri Sayfası |
PSK-3D (3W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 305 VAC | 100V | 430V | 9V | - | - | - | - | - | 333mA | 3W | 4 kV | Household Appliances, ITE (Commercial) | 78% | -40°C ~ 85°C (With Derating) | - | 2.99" L x 1.24" W x 1.22" H (76.0mm x 31.5mm x 31.0mm) | CE, cURus | 60335-1; 62368-1 |
|
PSK-3D-5-DINAC/DC DIN RAIL SUPPLY 5V 3W |
83 |
|
Veri Sayfası |
PSK-3D (3W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 305 VAC | 100V | 430V | 5V | - | - | - | - | - | 600mA | 3W | 4 kV | Household Appliances, ITE (Commercial) | 76% | -40°C ~ 85°C (With Derating) | - | 2.99" L x 1.24" W x 1.22" H (76.0mm x 31.5mm x 31.0mm) | CE, cURus | 60335-1; 62368-1 |
|
|
PSK-3D-3-DINAC/DC DIN RAIL SUPPLY 3.3V 3W |
16 |
|
Veri Sayfası |
PSK-3D (3W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 305 VAC | 100V | 430V | 3.3V | - | - | - | - | - | 900mA | 3W | 4 kV | Household Appliances, ITE (Commercial) | 72% | -40°C ~ 85°C (With Derating) | - | 2.99" L x 1.24" W x 1.22" H (76.0mm x 31.5mm x 31.0mm) | CE, cURus | 60335-1; 62368-1 |
