Fotoelektrik, Endüstriyel
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Algılama Yöntemi | Algılama Mesafesi | Voltaj - Besleme | Yanıt Zamanı | Çıkış Yapılandırması | Işık Kaynağı | Bağlantı Yöntemi | Giriş Koruma | Kablolu Uzunluk | Ayarlama Türü | Çalışma Sıcaklığı |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

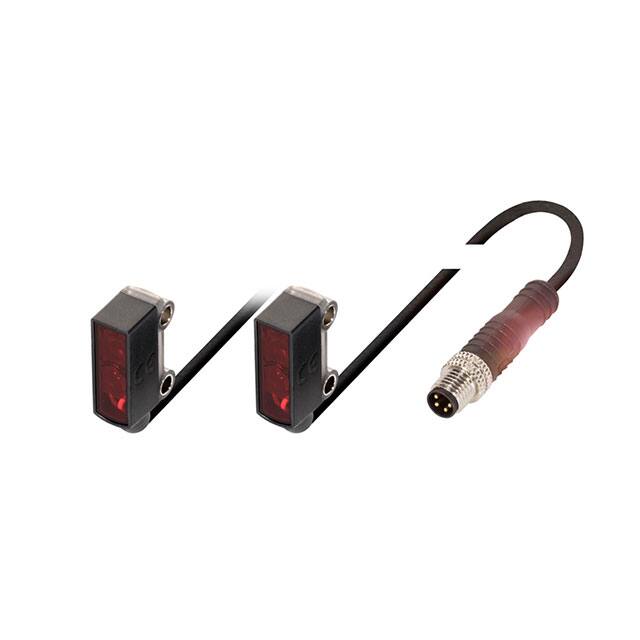

BOS0214SERIES=R020K, DIMENSION=7.7 X 26 |
23 |
|
Veri Sayfası |
R020K | Bag | Active | Through-Beam | 78.740" (2m) | 10V ~ 30V | - | PNP-NO | Red (660nm) | Cable with Connector, M8 | IP67 | 7.87" (200.00mm) | - | -25°C ~ 55°C |
|
BOS01K2SERIES=64K, DIMENSION=25 X 69.7 |
10 |
|
Veri Sayfası |
64K | Bag | Active | Diffuse | 78.740" (2m) | 24 ~ 240VAC, 24 ~ 60VDC | - | NC/NO | Infrared (940nm) | Terminal | IP67 | - | Adjustable, 240° Turn Potentiometer | -25°C ~ 55°C |
|
BOS01LLSERIES=6K, DIMENSION=12 X 41.5 X |
2 |
|
Veri Sayfası |
6K | Bag | Active | Diffuse | 31.496" (800mm) | 10V ~ 30V | - | PNP-NC/NO | Red (660nm) | Connector, M8 | IP67, IP69K | - | Adjustable | -20°C ~ 60°C |
|
BOS01C5SERIES=18M, DIMENSION= 18 X 75 M |
22 |
|
Veri Sayfası |
18M | Bag | Active | Diffuse, Background Suppression | 5.906" (150mm) | 10V ~ 30V | - | PNP-NO | Red (660nm) | Connector, M12 | IP67 | - | Adjustable, Potentiometer | -5°C ~ 55°C |
|
QMT42VP6DXQMT42 SERIES: LONG RANGE DIFFUSE |
7 |
|
Veri Sayfası |
QMT42 | Box | Active | Diffuse | 236.220" (6m) | 10V ~ 30V | 1ms | PNP - Dark-ON/Light-ON - Selectable | Infrared (880nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 55°C |
|
1218815SENSOR RETROREFL 10M NPN/PNP |
3 |
|
Veri Sayfası |
W16 | Box | Active | Retroreflective | 0" ~ 393.701" (0m ~ 10m) | 10V ~ 30V | 500µs | Push-Pull, NPN/PNP | Red (635nm) | Cable with Connector | IP66, IP67 | 10.630" (270.00mm) | Adjustable | -40°C ~ 60°C |
|
|
BOS002KSERIES=18M, DIMENSION= 18 X 75 M |
11 |
|
Veri Sayfası |
18M | Bag | Active | Diffuse, Background Suppression | 5.906" (150mm) | 10V ~ 30V | - | PNP-NO | Red (660nm) | Connector, M12 | IP67 | - | Adjustable, Potentiometer | -5°C ~ 55°C |
|
BGL001CSERIES=A, DIMENSION=10 X 50 X 68 |
13 |
|
Veri Sayfası |
A | Bag | Active | Through-Beam | - | 10V ~ 30V | - | PNP-NC/NO | Red (640nm) | Connector, M8 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 60°C |
|
BGL001TSERIES=A, DIMENSION=10 X 70 X 88 |
5 |
|
Veri Sayfası |
A | Bag | Active | Through-Beam | - | 10V ~ 30V | - | PNP-NC/NO | Infrared (880nm) | Connector, M8 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 60°C |
|
BKT0001SERIES=67M, DIMENSION=32 X 64 X |
14 |
|
Veri Sayfası |
67M | Bag | Active | Diffuse | 0.236" ~ 0.472" (6mm ~ 12mm) | 10V ~ 30V | - | NPN/PNP-NC/NO | Blue (465nm), Green (520nm), Red (630nm) | Connector, M12 | IP67 | - | Adjustable | -10°C ~ 55°C |
|

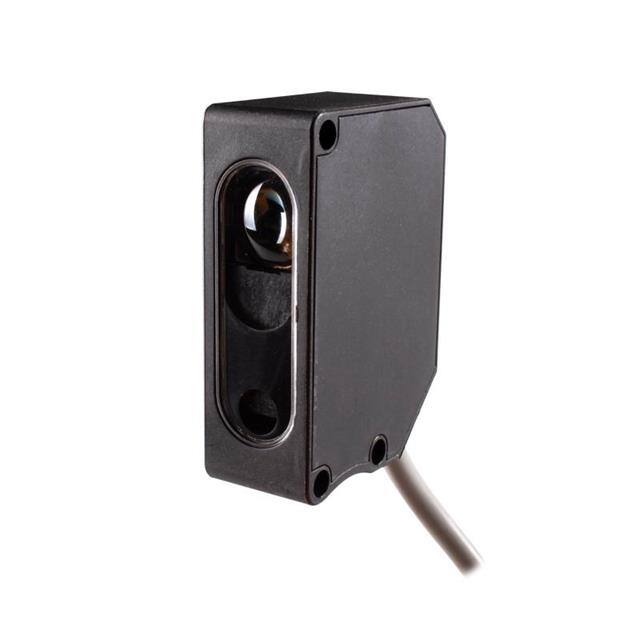

DM-18TPCOLOR MARK SENSOR 16-20MM PNP 2M |
9 |
|
Veri Sayfası |
DM | Box | Active | - | 0.630" ~ 0.787" (16mm ~ 20mm) | 10V ~ 30V | 250µs, 500µs, 1.2ms | PNP - Open Collector, Light-ON\Dark-ON | RGB LED | Cable | IP67 | 78.74" (2m) | Adjustable | -25°C ~ 55°C (TA) |
|
BGL0010SERIES=A, DIMENSION=10 X 25 X 54 |
22 |
|
Veri Sayfası |
A | Bag | Active | Through-Beam | - | 10V ~ 30V | - | PNP-NC/NO | Red LED | Connector, M8 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 60°C |
|
BGL000JSERIES=A, DIMENSION=10 X 200 X 1 |
22 |
|
Veri Sayfası |
A | Bag | Active | Through-Beam | - | 10V ~ 30V | - | PNP-NC/NO | Red LED | Connector, M8 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 60°C |
|
|
XUY762NB7N2SAJXUY RCS 762MM DIA8 CBL 0.3M + M1 |
8 |
|
Veri Sayfası |
XU | Box | Active | - | - | - | - | - | - | Cable with Connector | - | 11.81" (300.00mm) | - | - |
|
|
BOS01K3SERIES=64K, DIMENSION=25 X 69.7 |
7 |
|
Veri Sayfası |
64K | Bag | Active | Retroreflective | 32.81' (10m) | 24 ~ 240VAC, 24 ~ 60VDC | - | NC/NO | Red (660nm) | Terminal | IP67 | - | Adjustable, 240° Turn Potentiometer | -25°C ~ 55°C |
|
BGL0005SERIES=A, DIMENSION=10 X 30 X 54 |
9 |
|
Veri Sayfası |
A | Bag | Active | Through-Beam | - | 10V ~ 30V | - | PNP-NC/NO | Infrared (880nm) | Connector, M8 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 60°C |
|
QM26ENXLPCQ5QM26 WASHDOWN SERIES: LOW CONTRA |
3 |
|
Veri Sayfası |
QM26 | Box | Active | Retroreflective, Polarized | 102.362" (2.6m) | 10V ~ 30V | 500µs | NPN - Dark-ON/Light-ON - Selectable | Red LED | Connector | IP69K | - | Adjustable | -30°C ~ 70°C |
|
QM42VN6AFV150QM42 SERIES: ADJUSTABLE FIELD |
2 |
|
- |
- | Box | Obsolete | Background Suppression | 5.906" (150mm) | 10V ~ 30V | 1ms | NPN - Dark-ON/Light-ON - Selectable | Red (680nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 55°C |
|
|
QM42VP6AF150QM42 SERIES:ADJUSTABLE FIELD |
2 |
|
- |
- | Box | Obsolete | Background Suppression | 5.906" (150mm) | 10V ~ 30V | 1ms | PNP - Dark-ON/Light-ON - Selectable | Infrared (880nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 55°C |
|
BOS01K1SERIES=64K, DIMENSION=25 X 69.7 |
5 |
|
Veri Sayfası |
64K | Bag | Active | Diffuse, Background Suppression | 78.740" (2m) | 24 ~ 240VAC, 24 ~ 60VDC | - | NC/NO | Infrared (880nm) | Terminal | IP67 | - | Adjustable, 240° Turn Potentiometer | -25°C ~ 55°C |
