Basınç Sensörleri, Transdüserleri - Endüstriyel
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Uygulamalar | Basınç Türü | Çalışma Basıncı | Çıkış Türü | Çıkış | Doğruluk | Voltaj - Besleme | Port Boyutu | Port Stili | Özellikler | Sonlandırma Stili | Maksimum Basınç | Çalışma Sıcaklığı | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9013FHG59J69PRESSURE SWITCH 575VAC 1HP F +OP |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9013FYG2J33PRESSURE SWITCH 575VAC 1HP F +OP |
0 |
|
Veri Sayfası |
9013FY | Module | Bulk | Active | - | Differential | 25PSI ~ 80PSI (172.4kPa ~ 551.6kPa) | DPST-NC | - | ±3% | - | Female - 1/4" (6.35mm) NPS | Threaded | - | Screw Terminal | 219.99PSI (1516.8kPa) | -30°C ~ 70°C | - |
|
|
9013FYG2J20PRESSURE SWITCH 575VAC 1HP F +OP |
0 |
|
Veri Sayfası |
9013FY | Module | Bulk | Active | - | Differential | 25PSI ~ 80PSI (172.4kPa ~ 551.6kPa) | DPST-NC | - | ±3% | - | Female - 1/4" (6.35mm) NPS | Threaded | - | Screw Terminal | 219.99PSI (1516.8kPa) | -30°C ~ 70°C | - |
|
|
9013FYG2J25PRESSURE SWITCH 575VAC 1HP F +OP |
0 |
|
Veri Sayfası |
9013FY | Module | Bulk | Active | - | Differential | 25PSI ~ 80PSI (172.4kPa ~ 551.6kPa) | DPST-NC | - | ±3% | - | Female - 1/4" (6.35mm) NPS | Threaded | - | Screw Terminal | 219.99PSI (1516.8kPa) | -30°C ~ 70°C | - |
|
|
9013FSG22J20M1PRESSURE SWITCH 575VAC 1HP F +OP |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9013FYG2J21B8U2C20PRESSURE SWITCH 575VAC 1HP F +OP |
0 |
|
- |
Square D Pumptrol | Module | Bulk | Active | - | Differential | 25PSI ~ 80PSI (172.4kPa ~ 551.6kPa) | DPST | - | - | - | Female - 1/4" (6.35mm) NPS | Threaded | - | Screw Terminal | 220PSI (1516.84kPa) | - | - |
|
P51-300-G-B-I36-20MA-000-000SENSOR 300PSIG 1/8NPT 20MA |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Vented Gauge | 300PSI (2068.43kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-15-A-UC-I36-4.5V-000-000SENSOR 15PSIA 1/4NPT 4.5V |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-50-A-A-I36-4.5V-000-000SENSOR 50PSIA 1/4NPT 4.5V |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 50PSI (344.74kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-1000-A-A-I36-4.5V-000-000SENSOR 1000PSIA 1/4NPT 4.5V |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-15-A-UB-I36-4.5V-000-000SENSOR 15PSIA 1/8NPT 4.5V |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 5V | Female - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

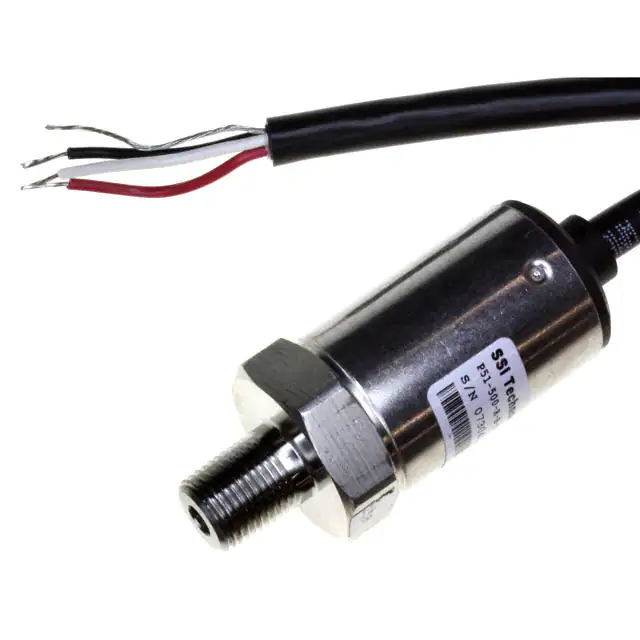

P51-500-A-B-I36-4.5V-000-000SENSOR 500PSIA 1/8NPT 4.5V |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-1000-A-B-I36-4.5V-000-000SENSOR 1000PSIA 1/8NPT 4.5V |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

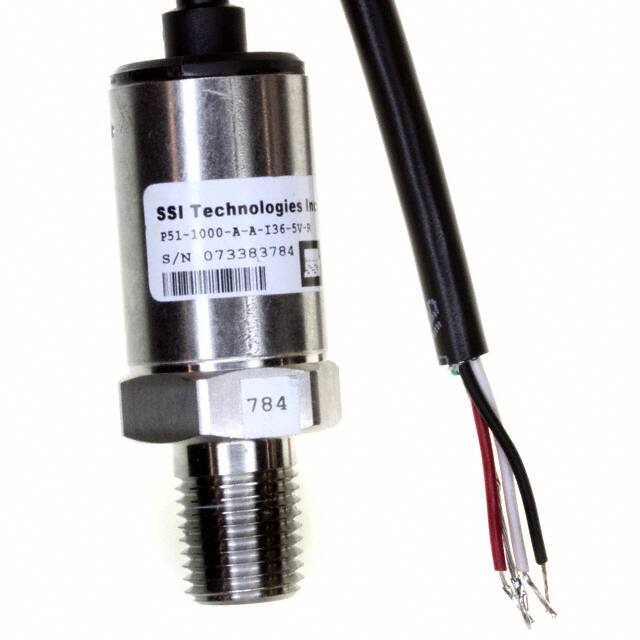

P51-1000-A-A-I36-5V-000-000SENSOR 1000PSIA 1/4NPT 5V |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 1000PSI (6894.76kPa) | Analog Voltage | 1 V ~ 5 V | ±0.5% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-500-A-B-I36-5V-000-000SENSOR 500PSIA 1/8NPT 5V |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 1 V ~ 5 V | ±0.5% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-15-A-UC-I36-20MA-000-000SENSOR 15PSIA 1/4NPT 20MA |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 15PSI (103.42kPa) | Analog Current | 4 mA ~ 20 mA | ±1% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-15-A-UB-I36-20MA-000-000SENSOR 15PSIA 1/8NPT 20MA |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 15PSI (103.42kPa) | Analog Current | 4 mA ~ 20 mA | ±1% | 8V ~ 30V | Female - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-500-A-B-I36-20MA-000-000SENSOR 500PSIA 1/8NPT 20MA |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 500PSI (3447.38kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-1000-A-B-I36-20MA-000-000SENSOR 1000PSIA 1/8NPT 20MA |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 1000PSI (6894.76kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

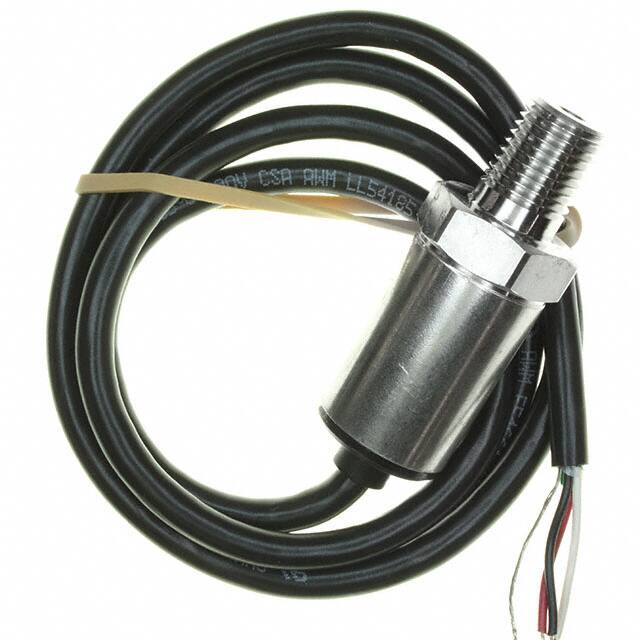

P51-15-S-UC-I36-4.5V-000-000SENSOR 15PSIS 1/4NPT 4.5V |
0 |
|
Veri Sayfası |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
