LED Karakter ve Sayısal
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Görüntü Formatı | Karakter Sayısı | Boyut / Ölçü | Basamak/Alfabe Boyutu | Görüntü Türü | Ortak Pin | Renk | Voltaj - İleri (Vf) (Tipik) | Akım - Test | Millikandela Derecesi | Dalga Boyu - Pik | Güç Dağılımı (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DA03-11SYKWADISPLAY 7-SEG 0.3" DBL YLW 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (0.400", 10.16mm) | Tube | Active | - | 2 | 0.610" H x 0.591" W x 0.283" D (15.50mm x 15.00mm x 7.20mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Yellow | 2V | 20mA | 54mcd | 590nm | 75mW |
|
|
SC10-11SURKWADISPLAY 7SEG 1.02" SGL RED 14DIP |
0 |
|
Veri Sayfası |
- | 14-DIP (0.600", 15.24mm), 11 Leads | Tube | Active | - | 1 | 1.295" H x 0.886" W x 0.335" D (32.90mm x 22.50mm x 8.50mm) | 1.02" (26.00mm) | 7-Segment | Common Cathode | Red | 1.95V | 20mA | 260mcd | 645nm | 75mW |
|
|
SA56-21SYKWADISPLAY 7SEG 0.56" SGL YLW 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (0.600", 15.24mm) | Tube | Active | - | 1 | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Yellow | 2V | 20mA | 160mcd | 590nm | 75mW |
|
|
SC03-12CGKWADISPLAY 7SEG 0.3" SGL GRN 14DIP |
0 |
|
Veri Sayfası |
- | 14-DIP (0.600", 15.24mm), 10 Leads | Tube | Active | - | 1 | 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 57mcd | 574nm | 75mW |
|
|
SC04-11CGKWADISPLAY 7SEG 0.4" SGL GRN 14DIP |
0 |
|
Veri Sayfası |
- | 14-DIP (0.295", 7.50mm), 10 Leads | Tube | Active | - | 1 | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 30mcd | 574nm | 75mW |
|
|
SC04-12CGKWADISPLAY 7SEG 0.4" SGL GRN 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (0.295", 7.50mm) | Tube | Active | - | 1 | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 30mcd | 574nm | 75mW |
|
|
SC10-21CGKWADISPLAY 7-SEG 1" SGL GREEN 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (1.197", 30.40mm) | Tube | Active | - | 1 | 1.339" H x 0.551" W x 0.413" D (34.00mm x 14.00mm x 10.50mm) | 1.00" (25.40mm) | 7-Segment | Common Cathode | Green | 4.2V | 20mA | 95mcd | 574nm | 150mW |
|
|
SC10-21SYKWADISPLAY 7-SEG 1" SGL YLW 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (1.197", 30.40mm) | Tube | Active | - | 1 | 1.339" H x 0.551" W x 0.413" D (34.00mm x 14.00mm x 10.50mm) | 1.00" (25.40mm) | 7-Segment | Common Cathode | Yellow | 2V | 20mA | 400mcd | 590nm | 75mW |
|
|
SC36-11CGKWADISPLAY 7SEG 0.36" SGL GRN 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (0.200", 5.08mm) | Tube | Active | - | 1 | 0.551" H x 0.295" W x 0.335" D (14.00mm x 7.50mm x 8.50mm) | 0.36" (9.14mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 11mcd | 574nm | 75mW |
|
|
SA36-11SYKWADISPLAY 7SEG 0.36" SGL YLW 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (0.200", 5.08mm) | Tube | Active | - | 1 | 0.551" H x 0.295" W x 0.335" D (14.00mm x 7.50mm x 8.50mm) | 0.36" (9.14mm) | 7-Segment | Common Anode | Yellow | 2V | 20mA | 45mcd | 590nm | 75mW |
|
|
SA39-11CGKWADISPLAY 7SEG 0.39" SGL GRN 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (0.300", 7.62mm) | Tube | Active | - | 1 | 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 21mcd | 574nm | 75mW |
|
|
SA39-11SYKWADISPLAY 7SEG 0.39" SGL YLW 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (0.300", 7.62mm) | Tube | Active | - | 1 | 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Yellow | 2V | 20mA | 86mcd | 590nm | 75mW |
|
|
SA39-12CGKWADISPLAY 7SEG 0.39" SGL GRN 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (0.300", 7.62mm) | Tube | Active | - | 1 | 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 21mcd | 574nm | 75mW |
|
|
SA39-12SYKWADISPLAY 7SEG 0.39" SGL YLW 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (0.300", 7.62mm) | Tube | Active | - | 1 | 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Yellow | 2V | 20mA | 86mcd | 590nm | 75mW |
|
|
SA40-18CGKWADISPLAY 7SEG 3.98" SGL GRN 10DIP |
0 |
|
Veri Sayfası |
- | 10-DIP (4.210", 107.00mm) | Tube | Active | - | 1 | 4.803" H x 3.543" W x 0.591" D (122.00mm x 90.00mm x 15.00mm) | 3.98" (101.20mm) | 7-Segment | Common Anode | Green | 4.2V | 20mA | 100mcd | 574nm | 150mW |
|
|
LTC-4646GDISP 7SEG 0.39" QUAD GRN 28DIP |
0 |
|
Veri Sayfası |
- | 28-DIP Module (0.400", 10.16mm), 11 Leads | Tube | Active | - | 4 | 0.504" H x 1.582" W x 0.276" D (12.80mm x 40.18mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 2.2mcd | 565nm | 75mW |
|
|
LTC-5653CBDISP 7SEG 0.56" QUAD BLUE 12DIP |
0 |
|
Veri Sayfası |
- | 12-DIP (0.600", 15.24mm) | Tube | Active | - | 4 | 0.748" H x 1.984" W x 0.315" D (19.00mm x 50.40mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Blue | 3.3V | 20mA | 9mcd | 468nm | 115mW |
|
|
LTC-2621CBDISP 7SEG 0.28" TRP BLUE 16DIP |
0 |
|
Veri Sayfası |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | - | 3 | 0.891" H x 0.394" W x 0.240" D (22.64mm x 10.00mm x 6.10mm) | 0.28" (7.00mm) | 7-Segment Clock | Common Anode | Blue | 3.3V | 20mA | 2.6mcd | 468nm | 115mW |
|

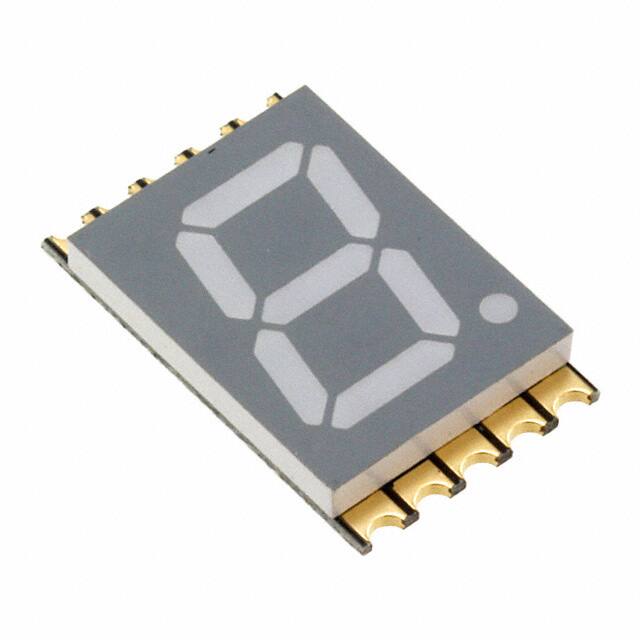

VDMG10A1DISPLAY 7SEG 0.39" SGL GRN 10SMD |
0 |
|
Veri Sayfası |
VDM.10A1 | 10-SMD, No Lead | Tape & Reel (TR) | Obsolete | - | 1 | 0.630" H x 0.386" W x 0.059" D (16.00mm x 9.80mm x 1.50mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Green | 2V | 20mA | 0.5mcd | 572nm | 70mW |
|

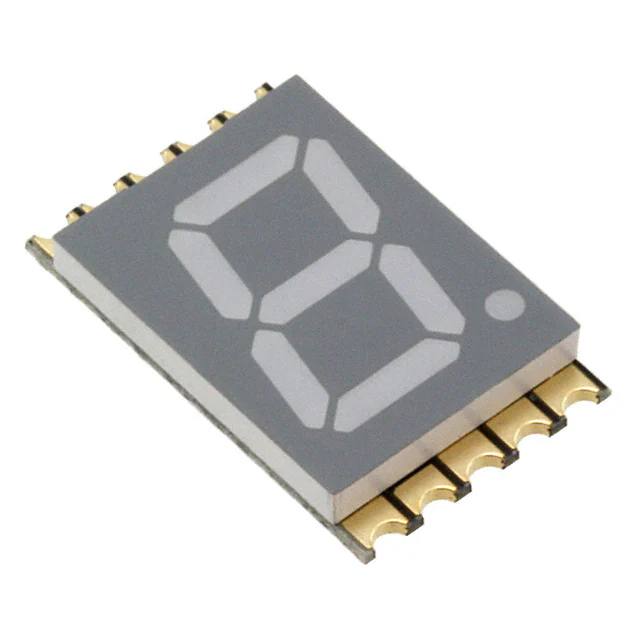

VDMO10A1DISPLAY 7SEG 0.39" SGL ORG 10SMD |
0 |
|
Veri Sayfası |
VDM.10A1 | 10-SMD, No Lead | Tape & Reel (TR) | Obsolete | - | 1 | 0.630" H x 0.386" W x 0.059" D (16.00mm x 9.80mm x 1.50mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Orange | 2V | 20mA | 0.65mcd | 605nm | 70mW |
