LED COB'ler, Motorlar, Modüller, Şeritler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Renk | CCT (K) (Renk Sıcaklığı) | Dalga Boyu | Yapılandırma | Parlaklık Akışı @ Akım/Sıcaklık | Akım - Test | Sıcaklık - Test | Voltaj - İleri (Vf) (Tipik) | Lumen/Watt @ Akım - Test | Akım - Maksimum | CRI (Renk Yansıtma Endeksi) | Görüş Açısı | Özellikler | Boyut / Ölçü | Yükseklik | Işık Yayan Yüzey (LES) | Lens Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA2540-0000-000N0YT227FLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Veri Sayfası |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 3320lm (3220lm ~ 3440lm) | 1.1A | 85°C | 37V | 82 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N0YT40E7LED COB XLAMP WARM WHT SQ 3000K |
0 |
|
Veri Sayfası |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 3560lm (3440lm ~ 3680lm) | 1.1A | 85°C | 37V | 87 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N0YT430FLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Veri Sayfası |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 1.1A | 85°C | 37V | 87 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N0YU20E6LED COB XLAMP WARM WHT SQ 3500K |
0 |
|
Veri Sayfası |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 3818lm (3680lm ~ 3955lm) | 1.1A | 85°C | 37V | 94 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N0YU235FLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Veri Sayfası |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 1.1A | 85°C | 37V | 94 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|

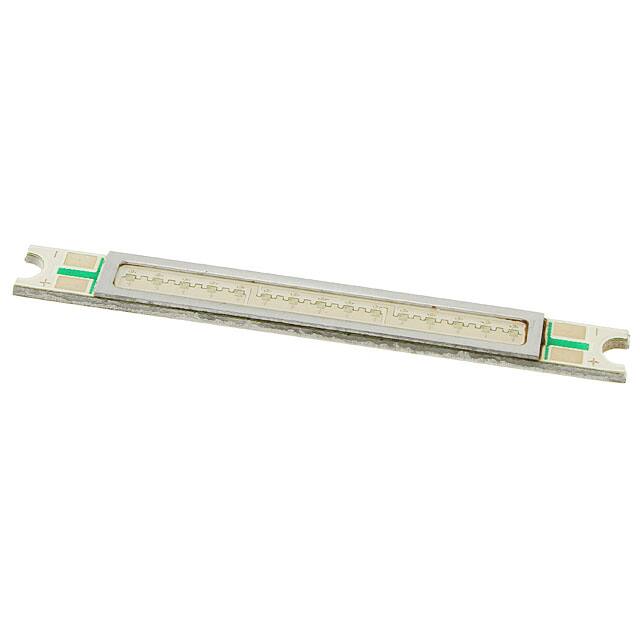

XZDG25X112S7W-ALED MOD GREEN LNR LGT STRIP |
0 |
|
Veri Sayfası |
- | Tray | Obsolete | LED Module | Green | - | 525nm | Linear Light Strip | 239.5lm (Typ) | 700mA | 25°C | 10.8V | 32 lm/W | 700mA | - | 120° | - | 48.00mm L x 5.00mm W | 1.60mm | 32.40mm L x 3.0mm W | Flat |
|
SI-B8V14256LWWLED MOD LT-S562L LNR STRP 3000K |
0 |
|
Veri Sayfası |
LT-S562L | Tray | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2180lm (Typ) | 400mA | 50°C | 35.2V | 155 lm/W | 720mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 7.40mm | - | Flat |
|
CXB1310-0000-00PF0U0A50GLED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1602lm (Typ) | 700mA | 85°C | 16.5V | 139 lm/W | 1.4A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PF0U0A40GLED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1572lm (Typ) | 700mA | 85°C | 16.5V | 136 lm/W | 1.4A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PN0U0A30ULED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1517lm (Typ) | 350mA | 85°C | 33V | 131 lm/W | 700mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PN0U0A30GLED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1517lm (Typ) | 350mA | 85°C | 33V | 131 lm/W | 700mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PN0U0A30QLED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1517lm (Typ) | 350mA | 85°C | 33V | 131 lm/W | 700mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PF0U0A35GLED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1562lm (Typ) | 700mA | 85°C | 16.5V | 135 lm/W | 1.4A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PN0U0A35GLED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1562lm (Typ) | 350mA | 85°C | 33V | 135 lm/W | 700mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PN0U0A50GLED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1602lm (Typ) | 350mA | 85°C | 33V | 139 lm/W | 700mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PF0U0A30QLED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1517lm (Typ) | 700mA | 85°C | 16.5V | 131 lm/W | 1.4A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PF0U0A30ULED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1517lm (Typ) | 700mA | 85°C | 16.5V | 131 lm/W | 1.4A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PF0U0A27GLED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1456lm (Typ) | 700mA | 85°C | 16.5V | 126 lm/W | 1.4A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PF0U0A30GLED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1517lm (Typ) | 700mA | 85°C | 16.5V | 131 lm/W | 1.4A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-00PN0U0A40GLED |
0 |
|
Veri Sayfası |
XLamp® CXB1310 Pro9™ | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1572lm (Typ) | 350mA | 85°C | 33V | 136 lm/W | 700mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
